Запчасти Case 850G (6-34) - TRANSMISSION CONTROLS (03) - TRANSMISSION

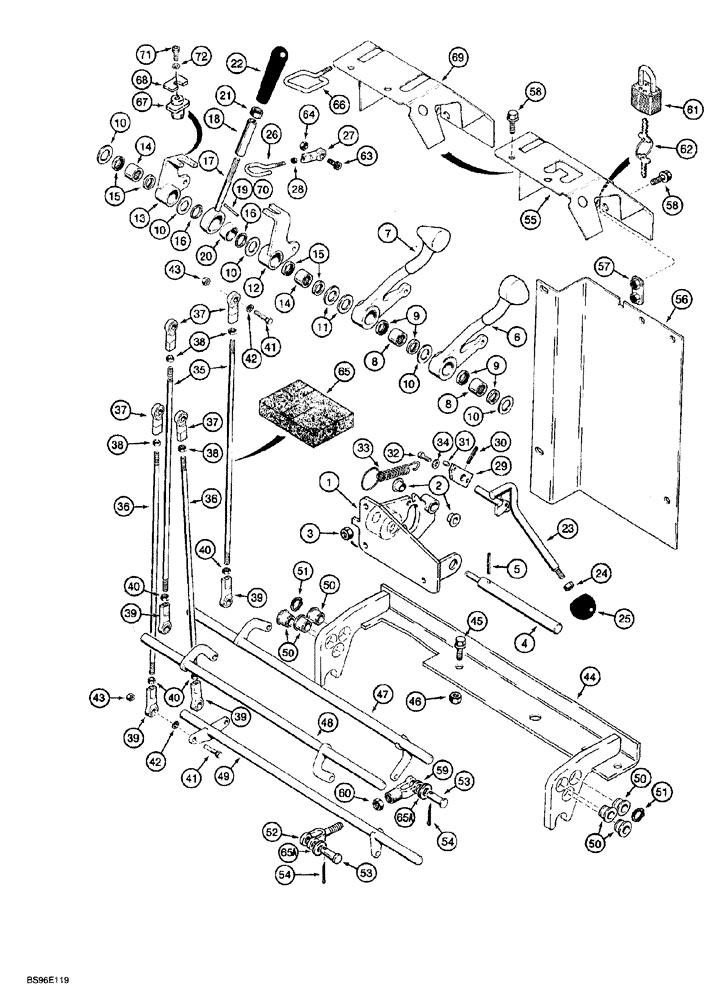

Схема запчастей Case 850G - (6-34) - TRANSMISSION CONTROLS (03) - TRANSMISSION
51
13
47
71
53
50
15
43
8
10
37
38
27
36
50
5
53
34
40
30
72
9
70
61
8
22
14
18
39
50
40
50
38
39
42
15
17
57
32
46
58
51
40
28
23
12
58
37
11
45
38
20
14
65a
26
44
56
35
65a
67
69
52
62
9
68
10
60
2
1
3
64
29
41
63
7
36
6
33
21
43
59
54
49
42
19
31
66
37
54
4
41
39
24
39
65
10
10
55
16
25
48
16
10

Артикул

Название

Примечание

Количество

1

106584A2

BRACKET

throttle and transmission control, see Figure 3-02 for throttle control components, Replaces: 106584A1, Includes: Ref. 2

1шт.

2

R58311

BRONZE BUSHING

bronze, at neutral start lever

2шт.

3

231-1446

NUT,3/8" - 16, Gr 5

3шт.

4

R57937

SHAFT

pivot, throttle and transmission control levers

1шт.

5

38-11632

LOCK PIN,1/4" x 2", Slotted

1шт.

6

R58134

LEVER

ASSEMBLY right-hand track speed, Includes Refs. 8 and 9

1шт.

7

R58135

LEVER

ASSEMBLY left-hand track speed, Includes Refs. 8 and 9

1шт.

8

377133R91

ROLLER BEARING,Needle, 19.04mm ID x 25.41mm OD x 19.05mm W

roller

1шт.

9

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

10

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

wear, at track speed levers and forward and reverse bellcranks, used as a shim

6шт.

11

R58209

SPACER

nylon, left-hand track speed lever to forward control lever

2шт.

12

106582A1

LEVER

ASSEMBLY bellcrank, forward control, Includes Refs. 14 and 15

1шт.

13

106583A1

LEVER

ASSEMBLY bellcrank, reverse control, Includes Refs. 14 and 15

1шт.

14

377133R91

ROLLER BEARING,Needle, 19.04mm ID x 25.41mm OD x 19.05mm W

roller

1шт.

15

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

16

R57931

SPACER

forward-neutral-reverse control lever to forward and reverse bellcranks

2шт.

334479A1

LEVER

ASSEMBLY control, forward-neutral-reverse, Replaces: R58305, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

LEVER control, forward-neutral-reverse

1шт.

18

R58303

ROLLER

SPACER control lever, used with R58305 Lever, if used

1шт.

19

38-1822

PIN,1/8" OD x 1-3/8" L, Slotted

Pin, , replaces 138-64 1/8" x 1 3/8", Slotted

1шт.

20

R58306

SPHERICAL BEARING,19.05mm ID x 31.75mm OD x 16.66mm W

self-aligning, control lever

1шт.

21

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex, Replaces 425-146

1шт.

22

L55721

HANDLE

shift, Replaces: R58314

1шт.

23

R57938

LEVER

neutral start

1шт.

24

425-156

JAM NUT,Jam, 3/8"-24, G5

No longer used, Not required

1шт.

25

70213

KNOB

control

1шт.

26

R58266

LINK

LEVER neutral start

1шт.

27

A146456

BALL

JOINT, 1/4 inch NF, Replaces: L53928

1шт.

28

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

29

108505A1

ARM

spring mounting, at neutral start lever

1шт.

30

435-1416

GROOVED PIN,1/8" x 1", Type A

full length tapered 1/8" x 1", Type A

1шт.

31

38-31212

PIN,3/16" x 3/4", Coiled

Use with Loctite No. 242

1шт.

32

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

33

101993A1

SPRING

return, neutral start lever

1шт.

34

495-81020

WASHER,17/32" x 1" x .030"

flat, 17/32 x 1 x 1/32 inch

1шт.

B17577

LOCTITE

blue, No. 242, 6 ml tube

1шт.

35

221492A1

ROD

connecting, 479 mm (18-7/8 inch) long, track speed levers to lower cross shafts, Replaces, R57949 rod, if used

2шт.

35a

220961A1

ROD ASSY.

connecting, 462 mm (18-3/16 inch) long, Includes Ref. 37 - 40, track speed levers to lower cross shafts, if used, not shown

2шт.

36

221495A1

ROD

connecting, 505 mm (19-7/8 inch) long, forward and reverse bellcranks to lower cross shaft, Replaces: 106650A1 rod, if used

2шт.

36a

220959A1

ROD ASSY.

connecting, 489 mm (19-1/4 inch) long, Includes Ref. 37 - 40, forward and reverse bellcranks to lower cross shaft, if used, not shown

2шт.

37

R47498

END

ball joint, rod, at control levers, right-hand thread

4шт.

38

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex, RH thread

4шт.

39

R58783

END

ROD at lower cross shaft, left-hand thread

4шт.

40

129-216

JAM NUT,Jam, 5/16"-18, G5, LH

LH thread

4шт.

41

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

8шт.

42

492-11031

LOCK WASHER,5/16"

8шт.

43

231-1445

NUT,5/16"-18, GB

8шт.

44

106710A1

BRACKET

lower control cross shafts

1шт.

45

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

hex flange, 1/2 NC x 1-1/2 inch, grade 8

2шт.

46

231-1448

NUT,1/2"-13, GB

hex, NC

2шт.

47

R57883

SHAFT

cross, lower control, right-hand track speed

1шт.

48

R57884

SHAFT

cross, lower control, left-hand track speed

1шт.

49

106639A1

SHAFT

cross, lower control, forward-neutral-reverse

1шт.

50

130756A1

BUSHING

plastic, cross shaft

6шт.

51

100-1462

SNAP RING,#62, Ext

6шт.

52

D34885

YOKE

UNIVERSAL JOINT YOKE ROD clevis, cross, Serial Range: shaft-valve

3шт.

53

D149287

PIN,7.9mm OD x 26.72mm L

Clevis, Special, hardened, 5/16 x 15/16 inch

6шт.

54

432-612

COTTER PIN,3/32" x 3/4"

6шт.

55

106610A1

COVER

console, top

1шт.

56

R58184

LARGE PLATE

PLATE, LARGE cover, console, front

1шт.

57

R58683

PLATE

support, top console cover

1шт.

58

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

8шт.

59

213-125

ADJUSTABLE CLEVIS,5/16" - 32

3шт.

60

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex, RH thread

3шт.

61

D93753

PADLOCK

keys, includes, neutral start lever to console cover, if used, Includes: Ref. 62

1шт.

62

R29555

KEY

for Master padlock only

2шт.

62

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

63

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

hex socket, 1/4 NC x 3/4 inch

1шт.

64

425-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

65

103584A1

PAD

noise reduction, control levers, cab models only

1шт.

65a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

66

R58821

LINK

LEVER neutral start, linear shift, models with optional linear shift pattern

1шт.

67

R58819

SHAFT

lever mounting, models with optional linear shift pattern

1шт.

68

R58820

LARGE PLATE

PLATE, LARGE notched, models with optional linear shift pattern

1шт.

69

R58816

COVER

console, top, models with optional linear shift pattern

1шт.

70

38-1814

LOCK PIN,1/8" x 7/8", Slotted

models with optional linear shift pattern 1/8" x 7/8", Slotted

1шт.

71

461-7258

HEX SOC SCREW,Btn Hd, 1/4"-20 x 1/2"

hex socket button, 1/4 NC x 1/2 inch, models with optional linear shift pattern

1шт.

72

492-11025

LOCK WASHER,1/4"

Models with optional linear shift pattern

1шт.
