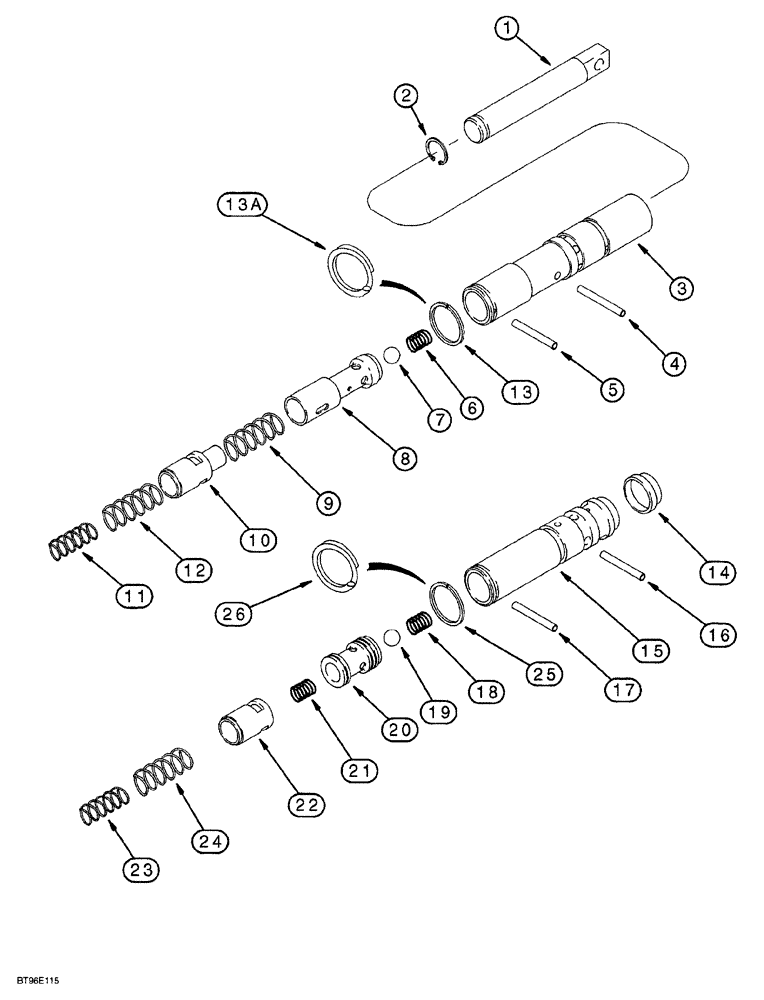

Запчасти Case 850G (6-24) - TRANSMISSION CONTROL VALVE SPOOL ASSEMBLIES (03) - TRANSMISSION

REF

INSTRUCTION

ASSEMBLY transmission , see Figure 6-08 for correct assembly, Includes: Ref. 1 - 13A

1шт.

126429A2

SPOOL

ASSEMBLY clutch cutout, no longer available, order 189265A2 spool assembly on figure 6-25A

2шт.

Clutch Cutout Spool Assembly

1шт.

1

138436A1

ROD

spool eye

1шт.

Clutch Cutout Spool Assembly

1шт.

2

G107637

RING, SNAP

RING SNAP retaining

1шт.

Clutch Cutout Spool Assembly

1шт.

3

126254A3

SPOOL

SLEEVE clutch cutout spool, no longer available, order 189269A2 spool assembly on figure 6-25A

1шт.

Clutch Cutout Spool Assembly

1шт.

4

132923A1

PIN

retaining, 3.18 x 24 mm long

1шт.

Clutch Cutout Spool Assembly

1шт.

5

37-1214

DOWEL,1/8" x 7/8"

dowel, hardened, 1/8 x 7/8 inch

1шт.

Clutch Cutout Spool Assembly

1шт.

6

129700A1

SPRING

check valve ball

1шт.

Clutch Cutout Spool Assembly

1шт.

7

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24

1шт.

Clutch Cutout Spool Assembly

1шт.

8

126253A1

SPOOL

track modulation

1шт.

Clutch Cutout Spool Assembly

1шт.

9

127428A1

SPRING

spool return, no longer available, order 189265A2 spool assembly shown on figure 6-25A

1шт.

Clutch Cutout Spool Assembly

1шт.

10

121488A1

PISTON

track modulation

1шт.

Clutch Cutout Spool Assembly

1шт.

11

121867A1

SPRING

track modulation

1шт.

Clutch Cutout Spool Assembly

1шт.

12

121866A1

SPRING

track modulation

1шт.

Clutch Cutout Spool Assembly

1шт.

13

121493A2

RING

retaining, no longer available, order 102-1393 ring, Ref. 13A

1шт.

Clutch Cutout Spool Assembly

1шт.

13a

102-1393

SNAP RING,#93, Ext, Spiral

external spiral retaining, No. 93

1шт.

Clutch Cutout Spool Assembly

1шт.

126430A2

SPOOL

ASSEMBLY forward and reverse modulation, no longer available, order 126430A3 spool assembly on figure 6-25A, Includes: Ref. 14 - 26

1шт.

Forward and Reverse Modulation spool

1шт.

14

121494A1

STOP

spool

1шт.

Forward and Reverse Modulation spool

1шт.

15

126255A3

SLEEVE

modulation spool, Replaces: 126255A2

1шт.

Forward and Reverse Modulation spool

1шт.

16

132923A1

PIN

retaining, 3.18 x 24 mm long

1шт.

Forward and Reverse Modulation spool

1шт.

17

37-1214

DOWEL,1/8" x 7/8"

dowel, hardened, 1/8 x 7/8 inch

1шт.

Forward and Reverse Modulation spool

1шт.

18

129700A1

SPRING

check valve ball

1шт.

Forward and Reverse Modulation spool

1шт.

19

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24

1шт.

Forward and Reverse Modulation spool

1шт.

20

126252A1

SPOOL

forward and reverse modulation

1шт.

Forward and Reverse Modulation spool

1шт.

21

127427A1

SPRING

spool return

1шт.

Forward and Reverse Modulation spool

1шт.

22

121492A1

PISTON

forward and reverse modulation

1шт.

Forward and Reverse Modulation spool

1шт.

23

121870A1

SPRING

forward and reverse modulation

1шт.

Forward and Reverse Modulation spool

1шт.

24

121871A1

SPRING

forward and reverse modulation

1шт.

Forward and Reverse Modulation spool

1шт.

25

121493A2

RING

retaining, no longer available, order 102-1393 ring, Ref. 26

1шт.

Forward and Reverse Modulation spool

1шт.

26

102-1393

SNAP RING,#93, Ext, Spiral

retaining, external spiral, No. 93

1шт.

Forward and Reverse Modulation spool

1шт.
