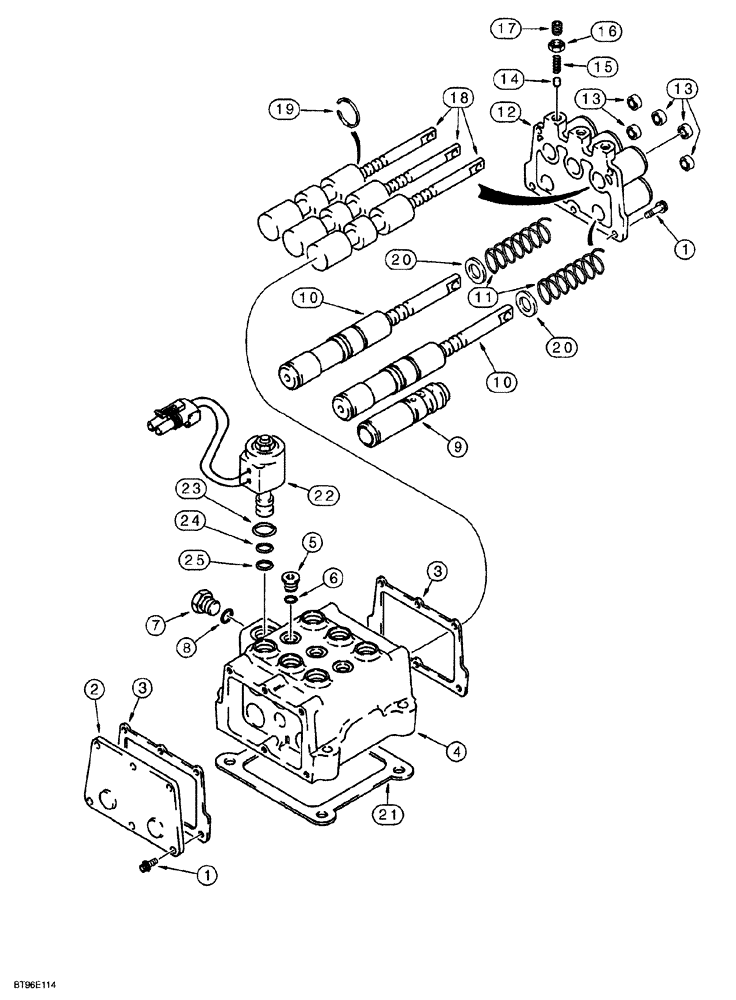

Запчасти Case 850G (6-22) - TRANSMISSION CONTROL VALVE ASSEMBLY (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
TRANSMISSION ASSEMBLY, see Figure 6-08 for correct assembly, Includes: Ref. 1 - 25
1шт.
125588A4
VALVE
TRANSMISSION CONTROL ASSEMBLY, Replaces: 125588A1, 125588A2 and 125588A3 valves, Includes: Ref. 1 - 25
1шт.
1
193-511
HEX SOC SCREW,Sems, 1/4"-28 x 5/8"
external tooth lock, 1/4 NF x 5/8 inch
11шт.
2
R21384
COVER
rear
1шт.
3
35665
GASKET
cover
2шт.
4
NSS
NOT SOLD SEPARAT
BODY control valve
1шт.
5
278548
PLUG,Hex, 7/16"-20 ORB
Incl Ref 6
3шт.
6
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
7
86529630
PLUG,Hex Soc, 3/8"-24 ORB
Includes Ref. 8
1-3шт.
8
237-6003
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
1шт.
9
126430A3
SPOOL
ASSEMBLY forward and reverse modulation, parts list figure 6-24 or 6-25A, Replaces: 126430A2
1шт.
10
189265A2
SPOOL
ASSEMBLY clutch cutout, parts list figure 6-24 or 6-25A, Replaces: 126429A2
2шт.
11
121865A1
SPRING
clutch cutout spool
2шт.
1542672C1
COVER
ASSEMBLY front, Includes: Ref. 12 and 13
1шт.
12
NSS
NOT SOLD SEPARAT
COVER front
1шт.
13
G105700
OIL SEAL
oil, spool, double lip
5шт.
14
71120
VALVE
PIN dowel, serves as a poppet, spool detent
3шт.
15
1542824C1
SPRING
poppet, detent
3шт.
16
131-407
LOCK NUT,Pal, 3/8" - 16, 0.145" High
3шт.
17
G104208
SET SCREW
special, 3/8 NC x 1/2 inch
3шт.
18
G107659
ROD
ASSEMBLY spool, shift, Includes: Ref. 19
3шт.
19
G107637
RING, SNAP
RING SNAP retaining, shift spool
1шт.
20
495-81175
WASHER,21/32" x 1" x .120"
FLAT, 21/32 x 1 x 7/64 inch, used with 126429A2 spool only, if used
2шт.
21
1986527C1
GASKET
valve, base
1шт.
130761A1
SOLENOID
ASSEMBLY valve, solenoid, 24 volt, Includes: Ref. 22 - 25
1шт.
22
NSS
NOT SOLD SEPARAT
VALVE solenoid, 24 volt
1шт.
23
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
Выбрано товаров: 29
