Запчасти Case 850G (6-18) - TRANSMISSION ASSEMBLY - FINAL DRIVE (1778 MM (70 INCH) GAUGE LGP DOZER MODELS) (03) - TRANSMISSION

130732A1

TRANSMISSION

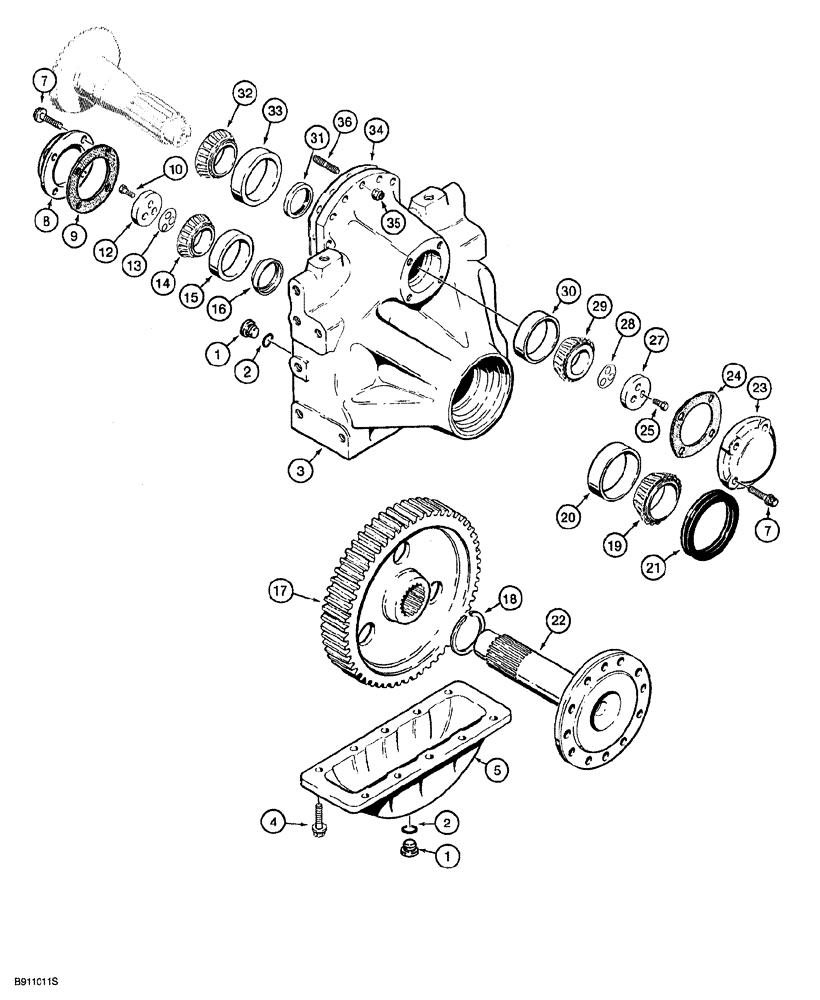

ASSEMBLY 1778 mm (70 inch) gauge LGP dozer models, parts list figures 6-8 thru 6-14, 6-18 thru 6025B and 7-6, Includes: Ref. 1 - 36

1шт.

G107165

TRANSMISSION

ASSEMBLY drive, final, Includes: Ref. 1 - 34

2шт.

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Fill and drain, Incl Ref 2

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

3

G103712

HOUSING

final drive

1шт.

4

180-610

12 PT SCREW,Flg, 1/2" - 13 x 1 1/2", Gr 8

flange, 12 point, chemical coating, 1/2 NC x 1-1/2 inch, grade 8

10шт.

5

1348875C1

COVER

PAN bottom, see Ref. 6 for, Serial Range: sealant-housing

1шт.

6

REF

INSTRUCTION

SEALANT, Gasket Eliminator 504, pan to housing, not shown, order B17555 or B17556 sealant below

1шт.

7

180-609

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

flange, 12 point, chemical coating, 1/2 NC x 1 inch, grade 8

8шт.

8

G103711

COVER

final drive shaft

1шт.

9

G103710

GASKET

final drive shaft, cover

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

10

110-14

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

3шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

12

1997098C1

PLATE

SHAFT final drive, bearing retaining

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

13

G101997

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

13

G101998

SHIM,.007" Thk

(0.178 mm)

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

13

G101999

SHIM,.020" Thk

(0.508 mm)

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

14

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

tapered roller, final drive shaft, inner

1шт.

15

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

CUP tapered roller bearing, inner

1шт.

16

A50721

SPACER

inner, final drive shaft

1шт.

17

G103588

GEAR WHEEL

final drive

1шт.

18

101-11393

SNAP RING,#393, 3.713, Ext

external retaining, No 393, gear

1шт.

19

L33736

ROLLER BEARING

tapered roller, final drive shaft, outer

1шт.

20

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

tapered roller bearing, outer

1шт.

21

G109655

SEAL

oil, final drive shaft

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

22

G106950

SHAFT

final drive

1шт.

23

G105822

COVER ASSY

shaft, bevel gear, upper

1шт.

24

G101598

GASKET

cover, upper

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

25

107-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd

hex, chemical locking, 1/2 NC x 1-1/4 inch, grade 8

3шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

27

1997100C1

PLATE

bearing retaining, bevel gear

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

28

G100328

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

28

G100329

SHIM,.007" Thk

(0.178 mm)

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

28

G100330

SHIM,.020" Thk

(0.508 mm)

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

29

1997114C1

TAPERED BEARING,55.001 mm ID x 39 mm

tapered roller, bevel gear, outer

1шт.

30

895366C1

BEARING CUP

CUP tapered roller, outer

1шт.

31

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

oil, housing, bevel gear

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

32

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

tapered roller, bevel gear, inner

1шт.

33

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller, inner

1шт.

34

A50199

SHIM,.003" Thk

(0.076 mm)

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

34

A50198

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

Part of Final Drive Seal Kit P/N 138972A1, seals and shims, for one side only.

1шт.

34

1997091C1

SHIM

0.508 mm (0.02 inch) thick

1шт.

35

232-4118

NUT,1/2"-13, GC

28шт.

36

308713A1

STUD

1/2 NC x 2-5/16 inch, Replaces: G100303

28шт.

B17500

LOCTITE

red, No. 271, 6 ml tube

1шт.

B17555

LOCTITE

SEALANT, Gasket Eliminator No. 515, 50 ml tube

1шт.

B17556

LOCTITE

SEALANT, Gasket Eliminator No. 515, 300 ml tube

1шт.

138971A1

SEAL KIT

KIT transmission, Includes: P/N A50199 and A50198, plus an additional gasket not used in this application

1шт.

138972A1

SEAL KIT

SEAL final drive, seals and shims, for one side only, Includes: Ref. No. 2, 9, 10, 12, 13, 21, 24, 25, 27, 28, 31, and 34

1шт.
