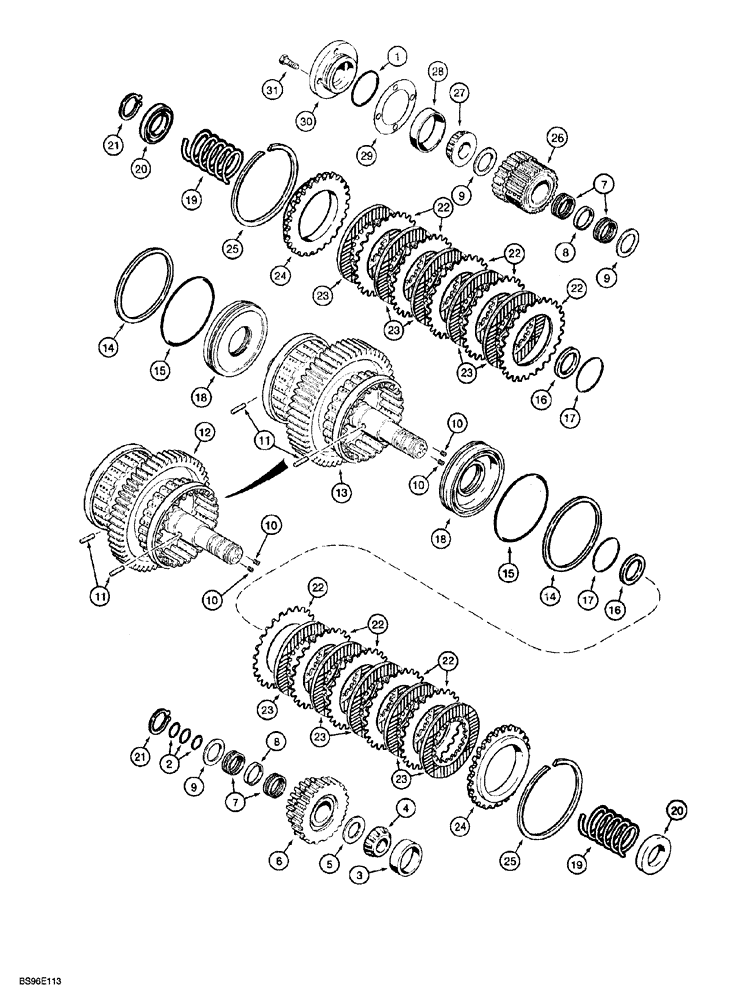

Запчасти Case 850G (6-14) - TRANSMISSION ASSEMBLY - HIGH-LOW CLUTCHES AND SHAFTS (03) - TRANSMISSION

REF

INSTRUCTION

ASSEMBLY transmission, see Figure 6-08 for correct assembly, Includes: Ref. 1 - 31

1шт.

1

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

2шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

2

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING seal

6шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

3

G100312

BEARING, CUP,85mm OD x 19.05mm W

tapered roller

2шт.

4

3131513R91

ROLLER BEARING

tapered roller

2шт.

5

A175396

WASHER, THRUST,36.6mm ID x 60mm OD x 2.3mm Thk

2шт.

6

1997063C1

GEAR

drive, high, 29/40 teeth

2шт.

7

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

needle

8шт.

8

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

inner

4шт.

9

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

6шт.

1997047C2

CLUTCH HOUSING

ASSEMBLY high and low, with shaft and gear, 51 (17 mm wide) teeth, left-hand, Includes: Ref. 10 - 25

1шт.

1997046C2

CLUTCH HOUSING

ASSEMBLY high and low, with shaft and gear, 51 (42 mm wide) teeth, right-hand, Includes: Ref. 10 - 25

1шт.

10

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

hex socket set headless, 7/16 NC x 3/8 inch, flat point, use with Loctite No. 271

2шт.

11

38-3605

PIN,3/32" x 5/16", Coiled

2шт.

12

1348993C2

SHAFT

clutch, high and low, 51 (17 mm wide) teeth, left-hand, with gear and clutch housings

1шт.

13

1348991C2

SHAFT

clutch, high and low, 51 (42 mm wide) teeth, right-hand, with gear and clutch housings

1шт.

14

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

piston, external

2шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

15

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston, external

2шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

16

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING piston, internal

2шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

17

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston, internal

2шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

18

A159292

PISTON

clutch

2шт.

19

A188080

SPRING

return

2шт.

20

A188044

RETAINER

spring

2шт.

21

100-16175

SNAP RING,#175, Ext

2шт.

22

A175806

PLATE

clutch separator

10шт.

23

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

clutch friction

10шт.

24

137720A1

PLATE

clutch backing

2шт.

25

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

retaining, internal

2шт.

26

1997064C1

GEAR

low, drive, 20/40 teeth

2шт.

27

G100313

BEARING CONE,34.92mm ID x 20.64mm W

tapered roller bearing, clutch shaft, rear

2шт.

28

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP tapered roller, rear

2шт.

29

G103645

SHIM,.003" Thk

(0.076 mm)

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

29

G103647

SHIM,.010" Thk

(0.254 mm)

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

29

1348980C1

BLOCK

SHIM, 0.504 mm (0.02 inch) thick

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

30

G103644

COVER ASSY

clutch, shaft, high and low

2шт.

31

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

8шт.

B17500

LOCTITE

red, No. 271, 6 ml tube

1шт.

138971A1

SEAL KIT

KIT transmission, Includes: ref. nos. 1, 2, 14, 15, 16, 17, and 29, plus an additional gasket not used in this application.

1шт.
