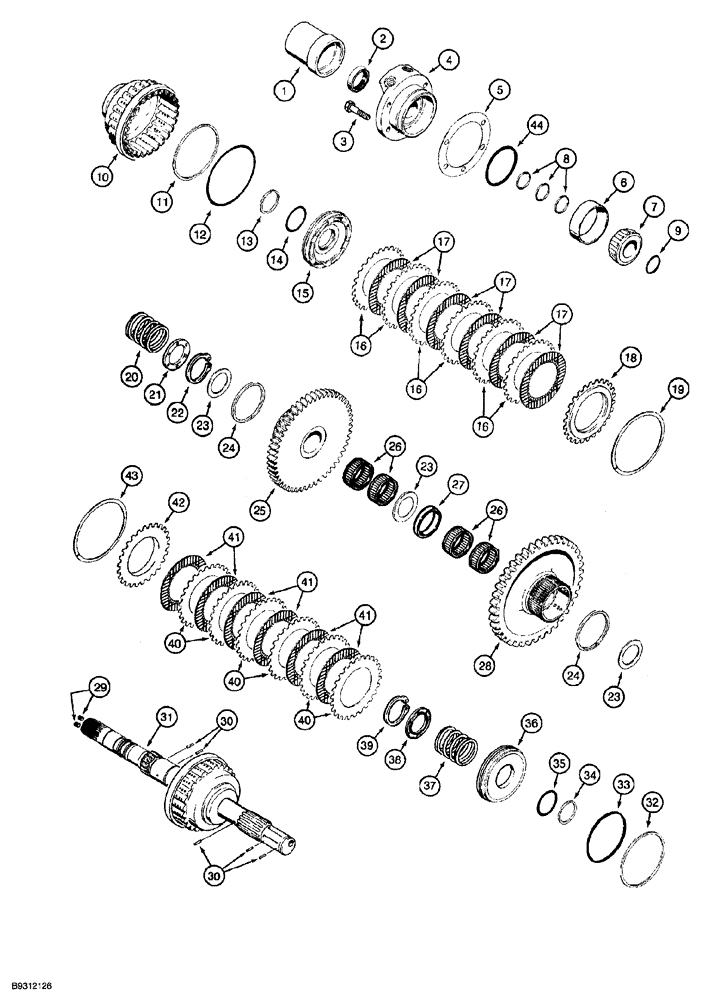

Запчасти Case 850G (6-12) - TRANSMISSION ASSEMBLY - MAIN SHAFT AND FORWARD-REVERSE CLUTCHES (03) - TRANSMISSION

REF

INSTRUCTION

TRANSMISSION ASSEMBLY, see Figure 6-08 for correct assembly, Includes: Ref. 1 - 44

1шт.

1

G101696

PROTECTIVE COVER

mainshaft, rear

1шт.

2

A54107

OIL SEAL,38.1mm ID x 8mm Thk

oil, main shaft cover

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

3

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

5шт.

4

1997065C1

SEAL RETAINER

bearing, rear, mainshaft

1шт.

5

1997066C1

SHIM

0.076 mm (.003 inch) thick

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

5

1997067C1

SHIM

0.178 mm (.007 inch) thick

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

5

1997068C1

SHIM

0.254 mm (.01 inch) thick

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

6

G109317

BEARING CUP

tapered roller bearing, rear

1шт.

7

1342259C1

ROLLER BEARING,38.113 mm ID x 30.467 mm

tapered roller bearing, main shaft, rear

1шт.

8

1348976C1

SEAL

main shaft

3шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

9

238-5324

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

1997048C2

CLUTCH HOUSING

ASSEMBLY forward, with hub, Includes: Ref. 10 - 19

1шт.

10

1997003C2

HUB

HOUSING clutch

1шт.

11

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

piston to clutch housing

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

12

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

13

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

piston to main shaft

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

14

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2-1/16 ID x 3/32 inch wide, piston to main shaft, Replaces: A159291

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

15

A159239

PISTON

forward clutch

1шт.

16

A175806

PLATE

clutch, separator

6шт.

17

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

clutch, friction

6шт.

18

137720A1

PLATE

clutch, backing

1шт.

19

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

retaining, internal, clutch backing plate

1шт.

20

A188080

SPRING

return, forward clutch

1шт.

21

A188044

RETAINER

spring

1шт.

22

100-16175

SNAP RING,#175, Ext

Clutch

1шт.

23

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

GEARS forward and reverse

3шт.

24

1995174C1

SEALING RING

SEALRING GEARS forward and reverse, 87 x 90 x 3 mm, if used

2шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

24

1981351C1

SEALING RING

GEARS forward and reverse, 81 x 90 x 4 5 mm, if used

2шт.

25

1997062C1

GEAR

clutch, forward, 51 teeth, also order 1995174C1 seal

1шт.

26

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

needle

4шт.

27

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

thrust, between gears

1шт.

28

1997061C1

GEAR

reverse clutch, 56 teeth, also order 1995174C1 seal

1шт.

138971A1

SEAL KIT

KIT transmission, includes Refs. with an asterisk on figures 6-6 thru 6-20 , plus an additional gasket not used in this application

1шт.

1997045C2

SHAFT

ASSEMBLY main, with reverse clutch, Includes: Ref. 29 - 43

1шт.

29

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

hex socket set, headless, 7/16 NC x 3/8 inch, flat point, use Loctite No. 271

2шт.

30

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

31

1997001C2

HUB

ASSEMBLY shaft, main, with reverse clutch housing

1шт.

32

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

PISTON to clutch housing

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

33

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

34

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING, Serial Range: PISTON-mainshaft

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

35

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

36

A159292

PISTON

clutch

1шт.

37

A188080

SPRING

return

1шт.

38

A188044

RETAINER

spring

1шт.

39

100-16175

SNAP RING,#175, Ext

1шт.

40

A175806

PLATE

clutch, separator

6шт.

41

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

clutch, friction

6шт.

42

137720A1

PLATE

clutch, backing

1шт.

43

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

retaining, internal

1шт.

44

238-5154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 5, 75 Duro

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

B17500

LOCTITE

red, No. 271, 6 ml tube

1шт.

138971A1

SEAL KIT

KIT transmission, Includes: Ref. No. 2, 5, 8, 9, 11, 12, 13, 14, 24, 32, 33, 34, 35, and 44, plus an additional gasket not used in tis application.

1шт.
