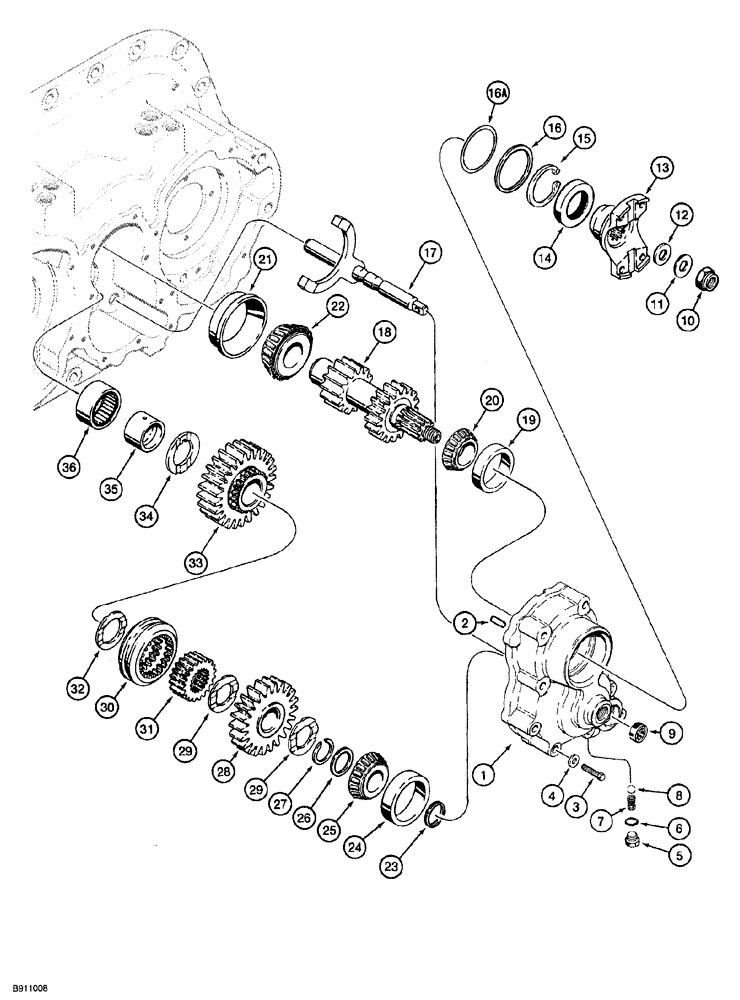

Запчасти Case 850G (6-10) - TRANSMISSION ASSEMBLY - RANGE SHIFT (03) - TRANSMISSION

REF

INSTRUCTION

ASSEMBLY transmission, see Figure 6-08 for correct assembly, Includes: Ref. 1 - 36

1шт.

1

1348962C2

HOUSING ASSY.

range gear, see sealant below

1шт.

2

37-1820

DOWEL,1/2" x 1 1/4"

PIN hardened, range gear housing, 1/2 x 1-1/4 inch

2шт.

3

107-9648

LOCK BOLT,Locking, 3/8"-16 x 3", G8

9шт.

4

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, hardened, 13/32 x 13/16 x 3/32 inch

9шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 6

1шт.

7

A50092

SPRING

detent

1шт.

8

211-1016

BALL,12.7mm OD, Gr 24

Chrome alloy steel, grade 24

1шт.

9

G105118

OIL SEAL

selector shaft, oil, at range gear housing

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

10

131-37

LOCK NUT,3/4"-16

Hex, input shaft

1шт.

11

896-16018

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

flat, hardened, yoke retaining, 20 x 41 x 5 mm

1шт.

12

34395

SEALING WASHER

seal, special

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

13

1348825C1

STIRRUP

YOKE input shaft

1шт.

14

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

YOKE oil

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

15

100-21300

SNAP RING,3.00", Int, #300

For 3 inch housing

1шт.

16

1997006C2

SHIM

SPACER, 3.175 mm thick

1шт.

16a

1997004C1

SHIM

0.076 mm thick

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

16a

1997005C1

SHIM

0.178 mm thick

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

17

G107672

SHAFT

range selector, with welded fork

1шт.

18

1342842C1

SHAFT

input, with gears

1шт.

19

165964R1

BEARING CUP

input shaft, tapered roller, front

1шт.

20

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

input shaft, tapered roller, front

1шт.

21

G106463

BEARING, CUP,89.59mm OD x 23.81mm W

tapered roller, rear with flange

1шт.

22

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

input shaft, tapered roller, rear

1шт.

23

1981335C1

SEAL

RING main shaft, front

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

24

128242R1

BEARING CUP,76.225 mm OD x 23.863 mm

CUP tapered roller, front, main shaft

1шт.

25

G106461

ROLLER BEARING,33.34mm ID x 28.78mm W

main shaft, tapered roller, front

1шт.

26

1997008C1

SPACER

special

1шт.

27

100-16131

SNAP RING,#131, Ext

Front bearing

1шт.

28

1342843C1

PINION

range, front, main shaft

1шт.

29

G107116

WASHER,33.48mm ID x 55.63mm OD x 3.17mm Thk

thrust, range gear

2шт.

30

A51806

COLLAR

range selector

1шт.

31

G107110

HUB

range selector

1шт.

32

G107117

WASHER

thrust, between range selector collar and rear range gear

1шт.

33

G107094

GEAR WHEEL

range, rear, main shaft

1шт.

34

G106465

WASHER

thrust, range gear, rear, main shaft

1шт.

35

G106696

BEARING,41.26mm ID x 50.77mm OD x 32mm W

RACE needle

1шт.

36

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

needle, main shaft at front housing cover.

1шт.

B17555

LOCTITE

SEALANT, Gasket Eliminator No. 515, 50 ml tube

1шт.

B17556

LOCTITE

SEALANT, Gasket Eliminator No. 515, 300 ml tube

1шт.

138971A1

SEAL KIT

KIT transmission, Includes: Ref. Nos. 6, 9, 12, 14, 16A, and 23, plus an additional gasket not used in this application.

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.
