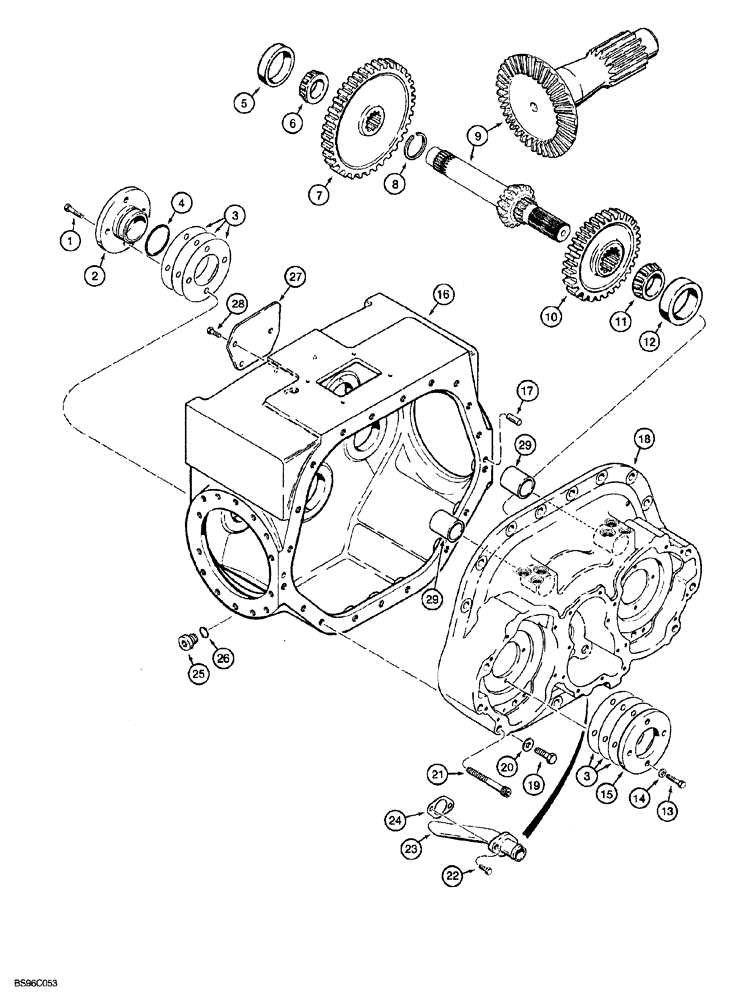

Запчасти Case 850G (6-08) - TRANSMISSION ASSEMBLY - HOUSING, BEVEL PINION SHAFT AND GEAR (03) - TRANSMISSION

130731A1

TRANSMISSION

ASSEMBLY, 1524 mm (60 inch) gauge dozer models, parts list figures 6-8- 6-16, 6-20 - 6-25A and 7-6, Includes: Ref. 1 - 29

1шт.

130732A1

TRANSMISSION

ASSEMBLY, 1778 mm (70 inch) gauge LGP dozer models, parts list figures 6-8 - 6-14, 6-18 - 6-25A and 7-6, Includes: Ref. 1 - 29

1шт.

1

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

8шт.

2

G103644

COVER ASSY

SHAFT bevel pinion

2шт.

3

G103645

SHIM,.003" Thk

(0.076 mm)

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

3

G103647

SHIM,.010" Thk

(0.254 mm)

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

3

1348980C1

BLOCK

SHIM, 0.504 mm (0.02 inch) thick

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

4

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

2шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

5

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP tapered roller bearing, rear

2шт.

6

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

tapered roller bearing, rear

2шт.

7

G103778

GEAR

driven, low clutch, 51 teeth, rear

2шт.

8

A27085

RING

retaining, low clutch gear

2шт.

9

1348973C1

GEAR, BEVEL

BEVEL GEAR SHAFT pinion, matched set

2шт.

10

1981357C1

PINION

front, driven, 43 teeth, high clutch

2шт.

11

A31264

ROLLER BEARING,1.625" ID x 1"

bearing, front, tapered roller, high clutch gear

2шт.

12

ST973

TAPERED BEARING,1.688" ID x 3.126" OD x 0.9515"

CUP tapered roller bearing, front

2шт.

13

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

8шт.

14

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, hardened, 13/32 x 13/16 x 3/32 inch

8шт.

15

1348975C1

RETAINER

PLATE, LARGE bearing, front

2шт.

16

1997054C1

HOUSING

transmission, see sealant below, Replaces: 130723A1

1шт.

17

37-1820

DOWEL,1/2" x 1 1/4"

hardened, front cover to housing, 1/2 x 1-1/4 inch

2шт.

18

1348959C2

COVER

transmission, front, see sealant below

1шт.

19

107-91028

LOCK BOLT,Locking, 5/8"-11 x 1 3/4", G8

13шт.

20

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

flat, hardened, 21/32 x 1-5/16 x 3/32 inch

13шт.

21

61-35064

HEX SOC SCREW,1/2"-13 x 4"

hex socket, 1/2 NC x 4 inch .

6шт.

22

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

2шт.

23

A50110

TUBE

suction

1шт.

24

1981223C1

GASKET

suction tube, see sealant below

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

25

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

27

1997121C1

LARGE PLATE

PLATE, LARGE modulator cover, if used

1шт.

28

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

If used

3шт.

29

1348982C1

WEAR PLATE

wear sleeve, shaft

2шт.

For repairs of Ref. No. 18 transmission cover in the event the seal bore for the high/low track shaft becomes damaged. Refer to Service Bulletin NCR SB 017 94 for installation instructions

1шт.

B17501

LOCTITE

SEALANT, Gasket Maker No. 515, 6 ml tube

1шт.

B17555

LOCTITE

SEALANT, Gasket Eliminator No. 515, 50 ml tube

1шт.

B17556

LOCTITE

SEALANT, Gasket Eliminator No. 515, 300 ml tube

1шт.

138971A1

SEAL KIT

KIT transmission, Includes: ref. nos. 3, 4, 24, and 26, plus an additional gasket not used in this application.

1шт.
