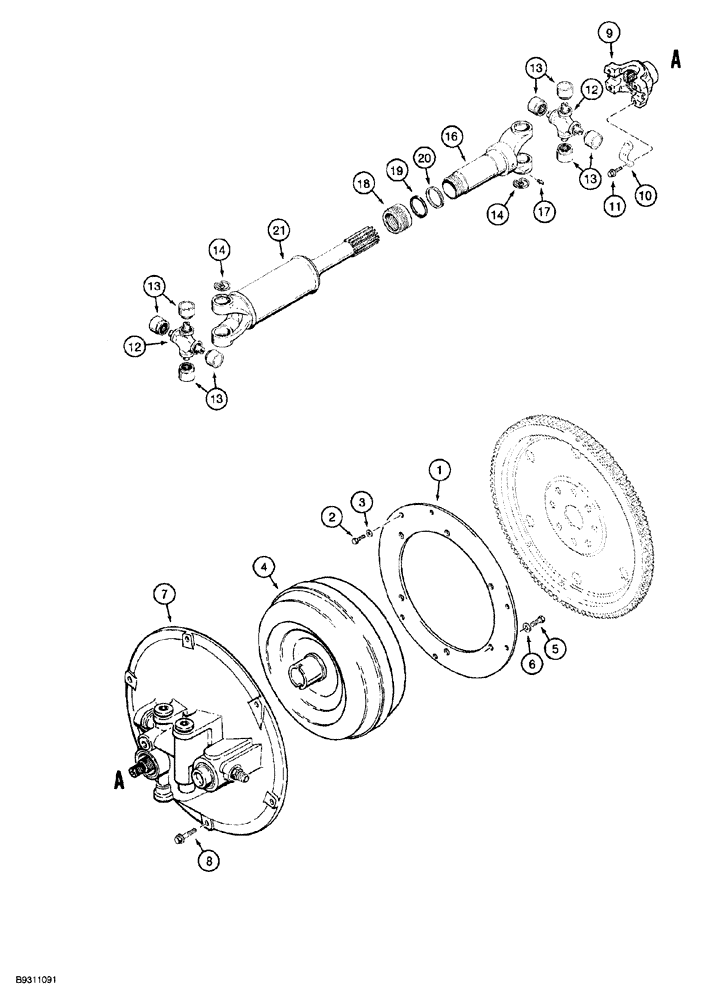

Запчасти Case 850G (6-02) - TORQUE CONVERTER, ADAPTER PLATE AND DRIVE SHAFT (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
A178706
PLATE
adapter, torque converter to flywheel plate
1шт.
2
428-510
BOLT,Hex, 5/16" - 24 x 5/8", Gr 8
hex, 5/16 NF x 5/8 inch, grade 8, adapter plate to flywheel plate
6шт.
3
A15672
WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk
flat, hardened, special
6шт.
4
R58079
CONVERTER
torque, component parts not serviced separately
1шт.
4
R58079R
REMAN-TORQUE CONVERT
Reman for New PN R58079
1шт.
4
R58079C
CORE-TORQUE CONVERTR
Core-Torque Converter, Return Number
1шт.
5
614-10016
BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd
Adapter Plate to Torque Converter
6шт.
6
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
6шт.
7
1348821C3
CONVERTER
ASSEMBLY housing, torque converter, parts list figure 6-04
1шт.
8
R54620
BOLT,Hex, Flange, M10 x 35mm CL 10.9
flange, heavy hex, special, torque converter housing to flywheel housing
6шт.
9
1348826C1
CLEVIS
YOKE torque converter housing, to drive shaft
1шт.
10
90-6682T1
CLAMP
drive shaft
4шт.
11
D137627
BOLT,Hex Flg, 5/16" - 24 x 19.05mm
special
8шт.
109491A1
STEERING SHAFT
ASSEMBLY drive, torque converter to transmission, Includes: Ref. 12 - 21
1шт.
134496A1
TOGGLE
KIT universal joint, Includes: Ref. 12 - 14
2шт.
12
NSS
NOT SOLD SEPARAT
universal joint, drive shaft
1шт.
13
NSS
NOT SOLD SEPARAT
BEARING universal joint
4шт.
14
R13992
RING, SNAP
RING SNAP universal joint, retaining
4шт.
15
219-10
LUBE NIPPLE,1/4" - 28 NPTF
grease fitting, straight, 1/4-28 taper x 11/16 inch, not shown, included in 109491A1 shaft assembly, but not used on the 850G
1шт.
16
N14247
YOKE
UNIVERSAL JOINT YOKE TUBE torque converter end, Includes: Ref. 17
1шт.
17
219-10
LUBE NIPPLE,1/4" - 28 NPTF
grease fitting, straight, 1/4-28 taper x 11/16 inch
1шт.
18
S301050
PLUG
CAP dust
1шт.
19
154086H1
WASHER
rubber
1шт.
20
S301051
WASHER
steel
1шт.
21
S301049
YOKE
UNIVERSAL JOINT YOKE splined shaft, transmission end
1шт.
Выбрано товаров: 25
