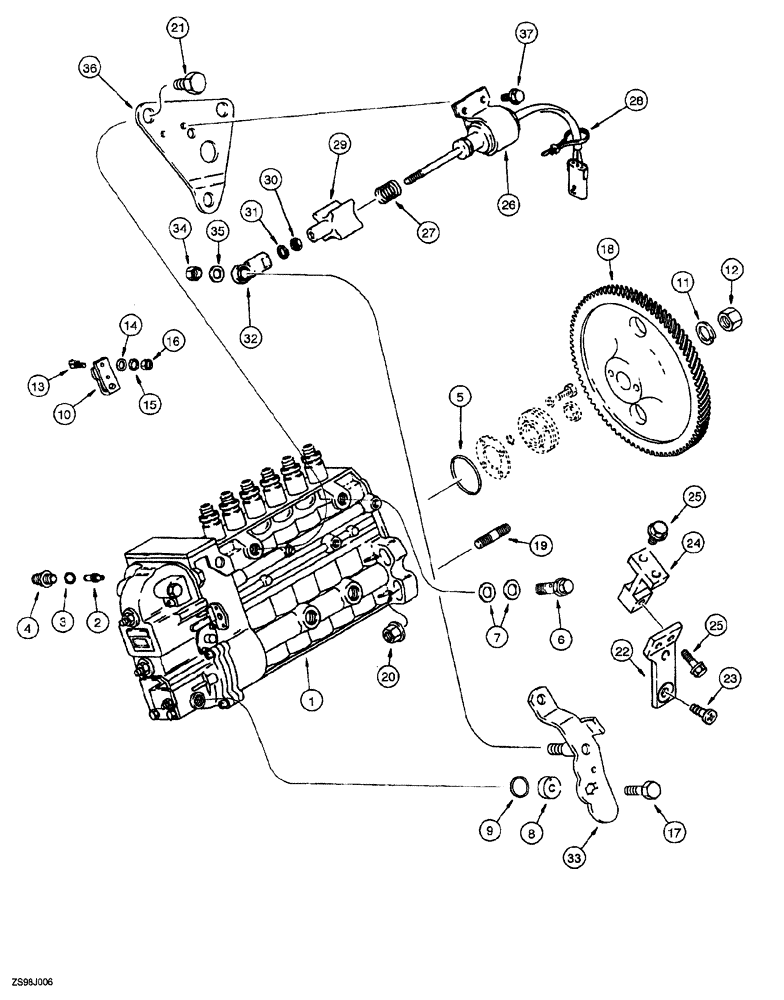

Запчасти Case 850G (3-13A) - FUEL INJECTION PUMP AND DRIVE (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (02) - FUEL SYSTEM

1

J931398

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel injection, new, Includes: Ref. 2 - 17

1шт.

JR931398

REMAN-INJECTION PUMP

ASSEMBLY fuel injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 17

1шт.

JC931398

CORE-INJECTION PUMP

RETURN NUMBER - For N.A. only

1шт.

2

A77720

PIN

timing

1шт.

3

J928981

LOCK WASHER

PLUG timing

1шт.

4

J912888

PLUG

timing

1шт.

5

J935032

SEAL

GASKET, Replaces: J930993

1шт.

6

J932096

VALVE

overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER valve sealing, overflow valve

2шт.

8

691292C1

RETAINER

HOUSING spring return, fuel shutoff shaft

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

sealing, special, shutoff shaft

1шт.

10

1808728C1

LEVER

throttle control

1шт.

11

A77775

LOCK WASHER

lock, special

1шт.

12

A41852

LOCK NUT

hex, self-locking, pump drive hub

1шт.

13

1808822C1

THUMB SCREW,M6 x 26mm

throttle lever

1шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

15

892-11006

LOCK WASHER,M6

1шт.

16

829-1306

NUT,M6, Cl 10

1шт.

17

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

18

J934636

PINION

GEAR fuel pump, Replaces: J931450 and J934188

1шт.

19

J915036

STUD

pump mounting

4шт.

20

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

21

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

hex, 16 -2.0 x 12 mm

3шт.

22

J863311

BRACE

fuel pump

1шт.

23

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

24

J863312

BRACE

fuel pump

2шт.

25

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

3шт.

26

J932530

SOLENOID

fuel shutoff, 24 volt, Includes: Ref. 27 - 32

1шт.

27

311100A1

SPRING

return, plunger

1шт.

28

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

29

J925171

BOOT

PLUNGER protective

1шт.

30

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

31

492-11025

LOCK WASHER,1/4"

1шт.

32

311099A1

JOINT

ball

1шт.

33

J802998

PACKAGE,SERVICE

pump shutoff lever, Replaces: J934019, Includes: Ref. 34 and 35

1шт.

34

832-41306

NUT,M6 x 1, Cl 10

1шт.

35

J934022

WASHER

flat, special, lever pump shutoff

1шт.

36

J930589

SUPPORT

solenoid mounting

1шт.

37

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

Heavy

2шт.
