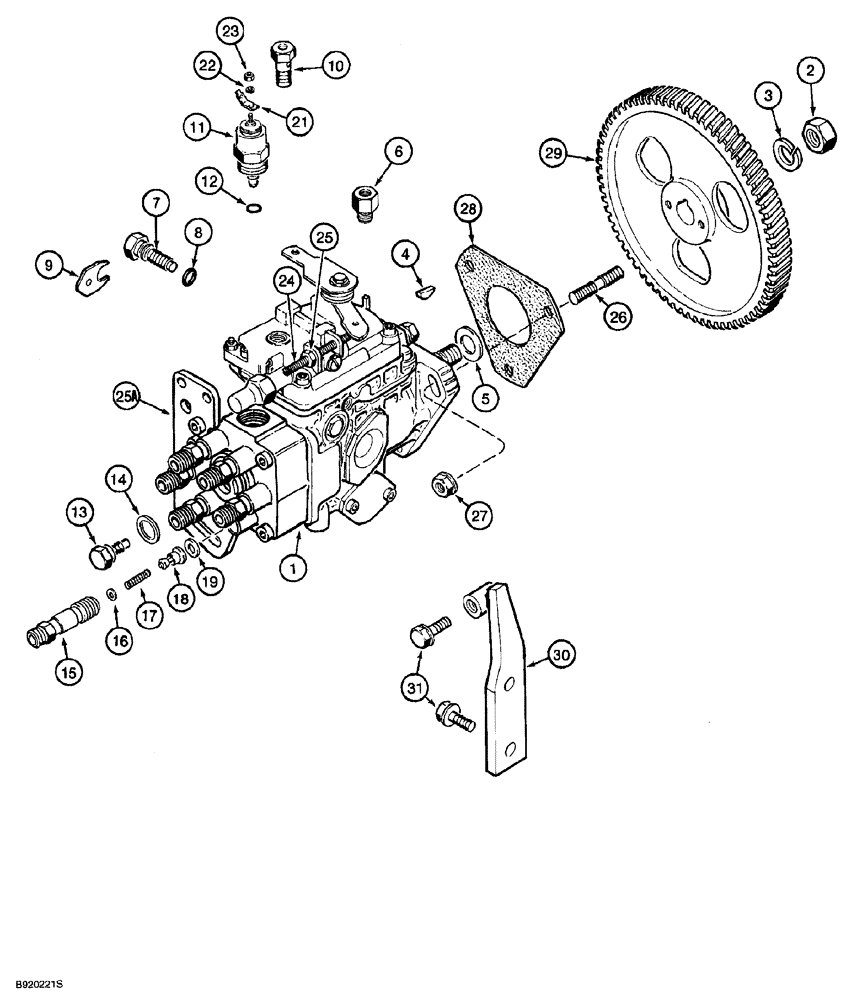

Запчасти Case 850G (3-12) - FUEL INJECTION PUMP AND DRIVE (PRIOR TO P.I.N. JJG0254015, EXCEPT FOR JJG0254005 TO JJG0254009) (02) - FUEL SYSTEM

1

J922411

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel injection, new, Includes: Ref. 2 - 25

1шт.

1

JR922411

REMAN-INJECTION PUMP

Assembly Fuel Injection, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly, Includes: Ref. 2 - 25

1шт.

1

JC922411

CORE-INJECTION PUMP

Return Part Number

1шт.

JC917503

PUMP, FUEL INJECTION

PUMP, INJECTION RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 25

1шт.

2

J903738

NUT

hex, special, 14 mm - 2.0

1шт.

3

92-11056

LOCK WASHER,9/16"

1шт.

4

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Gear pump, Replaces J902332

1шт.

5

J920393

SEAL

SHAFT

1шт.

6

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

TUBE

1шт.

7

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

timing lock

1шт.

8

J904785

O-RING,8 mm ID x 2.5 mm

timing lock screw

1шт.

9

J904786

PLATE

timing lock

1шт.

10

J905465

BANJO BOLT

banjo, overflow

1шт.

11

A77797

SOLENOID

24 volt, shut down, components not serviced separately

1шт.

12

J903577

SEAL

solenoid

1шт.

13

J903572

BLEED SCREW,M8 x 1 x 23.10mm

vent

1шт.

14

3053133R1

SEALING RING,M8 x 11.5 x 1

SCREW vent, gasket

1шт.

15

J910794

FITTING

bypass delivery valve

6шт.

16

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

special

6шт.

17

J910796

SPRING

delivery valve

6шт.

18

J910795

BY-PASS VALVE

delivery

6шт.

19

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

delivery valve

6шт.

21

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

Male

1шт.

22

J907481

WASHER

lock, special

1шт.

23

J907480

NUT

special

1шт.

24

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

STOP low idle

1шт.

25

J904783

NUT

SCREW low idle

1шт.

25

J905697

SUPPORT

pump support

1шт.

26

J902501

STUD

STUD pump mounting, 8 - 1.25 x 48 mm

3шт.

26

J902501

STUD

STUD pump mounting, 8 - 1.25 x 48 mm

3шт.

27

J900589

NUT

hex flange, special, 8 mm

3шт.

28

J931607

GASKET

MOUNTING pump, Replaces: J914389

1шт.

29

J920594

PINION

GEAR pump drive

1шт.

30

J905313

LEVER

BRACE fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
