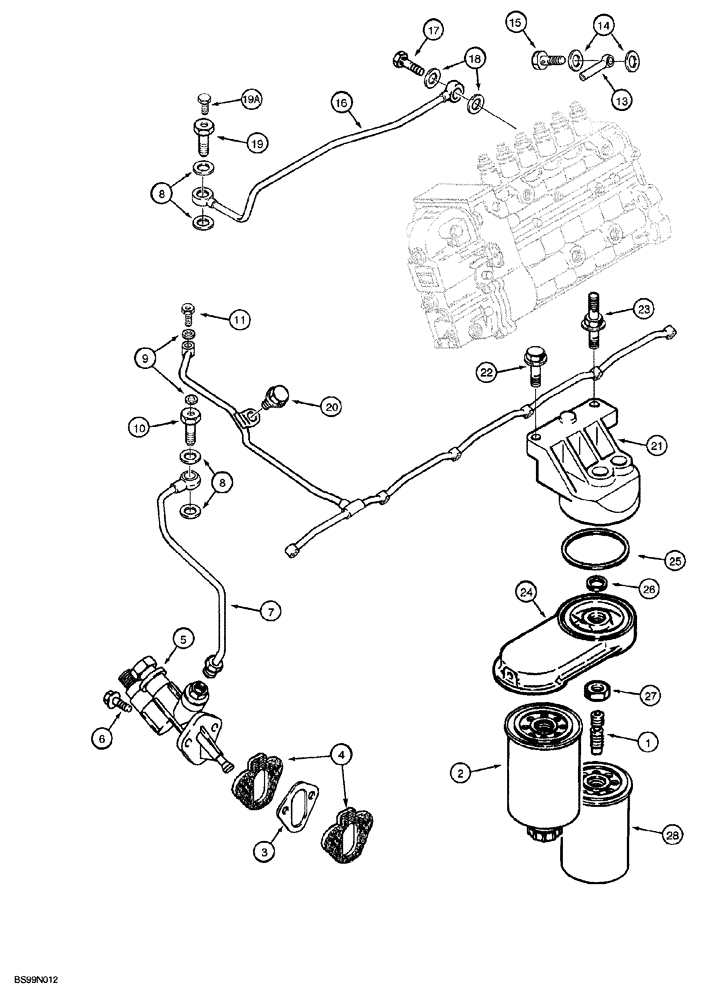

Запчасти Case 850G (3-11A) - FUEL FILTER AND LIFT PUMP (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (02) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter, Replaces: J903845

1шт.

2

J930942

SEPARATOR

Primary, Replaces: J925274

1шт.

3

J914284

SPACER

fuel transfer pump ounting

1шт.

4

J931059

GASKET

fuel transfer pump mounting, Replaces: J931348

2шт.

5

J933252

FEED PUMP

lift, fuel

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J928423

FUEL TUBE,8 mm OD x 323.9 mm L

supply, fuel

1шт.

8

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

10

J916361

BANJO BOLT

banjo connector, 12 - 1.5 x 24 mm

1шт.

11

J924726

BANJO BOLT

check

1шт.

12

J933295

MANIFOLD

fuel tube

1шт.

13

J933250

FITTING

BOLT banjo connector

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, special, 14 x 20 x 1 mm

2шт.

15

J932096

VALVE

overflow

1шт.

16

J930735

FUEL TUBE,8 mm OD

SUPPLY fuel, two-piece

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

connector

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, special, 14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

ASSEMBLY bolt, banjo hex, special, Includes: Ref. 19 and 19A

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

19a

NSS

NOT SOLD SEPARAT

SCREW hex special, vent

1шт.

20

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

21

J933752

HEAD

fuel filter

1шт.

22

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

23

J928527

FLANGE BOLT,Spcl, Hex, M6 x 1 - M8 x 1.25 x 35mm, Full Thd

hex flange, special

1шт.

24

J897331

SUPPORT

HEAD fuel filter, Replaces: J915240

1шт.

25

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID

1шт.

26

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID

1шт.

27

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

28

J931063

FUEL FILTER

fuel, secondary, Replaces: J903640

1шт.
