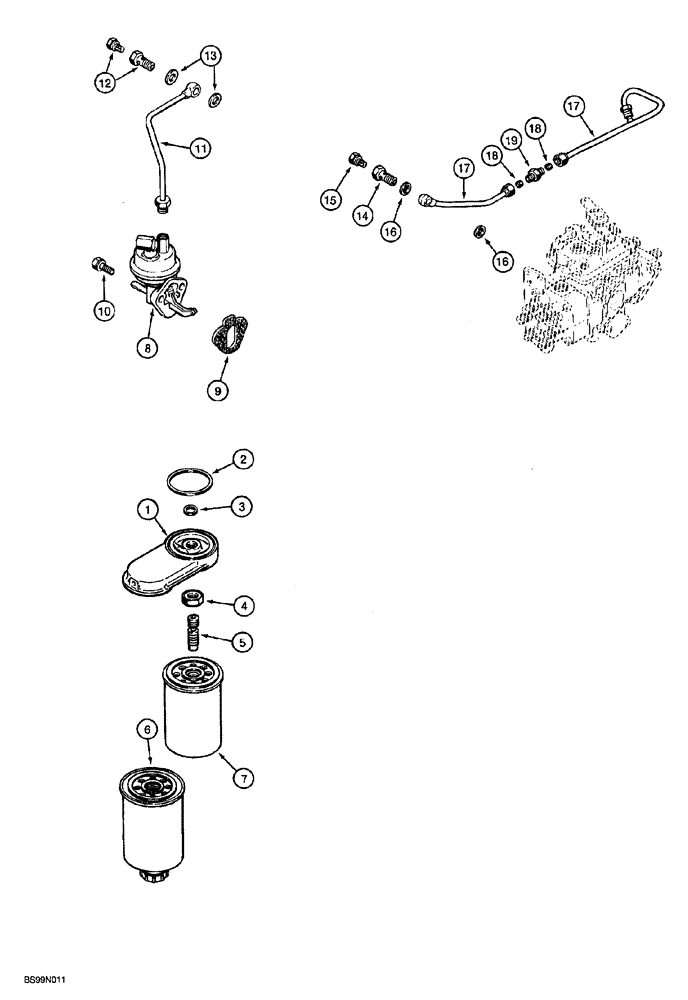

Запчасти Case 850G (3-10) - FUEL FILTER AND LIFT PUMP (PRIOR TO P.I.N. JJG0254015, EXCEPT FOR JJG0254005 TO JJG0254009) (02) - FUEL SYSTEM

1

J897331

SUPPORT

HEAD fuel filter, Replaces: J915240

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID

1шт.

4

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter, Replaces: J903845

1шт.

6

J930942

SEPARATOR

Primary, Replaces: J925274

1шт.

7

J931063

FUEL FILTER

secondary fuel, Replaces: J903640

1шт.

8

J928143

PUMP

fuel, lift, Replaces: J904374

1шт.

9

J931059

GASKET

MOUNTING, fuel transfer pump, Replaces: J914304 and J923054

1шт.

10

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

fuel supply

1шт.

12

J903035

BANJO BOLT

hex, special, 12 - 1.5 x 24 mm

1шт.

13

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

ASSEMBLY, banjo hex, special, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW hex special, vent

1шт.

16

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

17

J918640

FUEL TUBE

ASSEMBLY, fuel supply, two-piece, Includes: Ref. 18 and 19

1шт.

18

222-103

SLEEVE,5/16" Tube

2шт.

19

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER compression, 5/16 inch tube O.D.

1шт.
