(3-09A) - FUEL INJECTION SYSTEM (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER)

Запчасти Case 850G (3-09A) - FUEL INJECTION SYSTEM (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (02) - FUEL SYSTEM

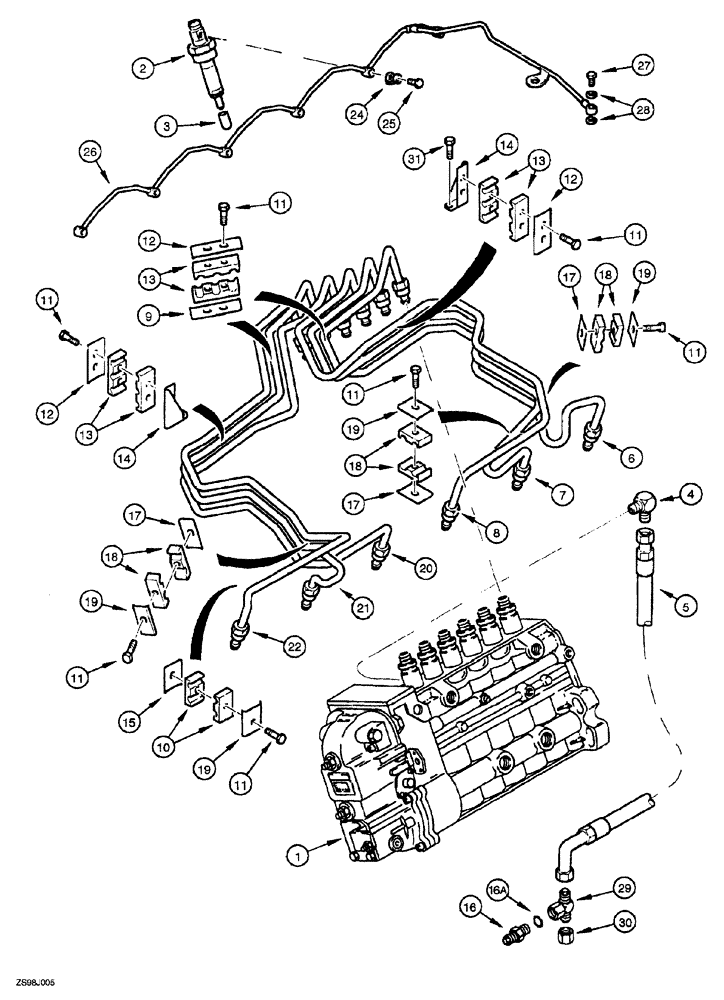

Схема запчастей Case 850G - (3-09A) - FUEL INJECTION SYSTEM (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (02) - FUEL SYSTEM
18
31
25
21
17
16a
14
11
3
6
11
12
18
17
9
1
22
11
13
18
30
19
15
19
20
28
24
19
8
19
7
11
13
29
26
10
2
27
16
11
4
12
5
11
12
13
14
11
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J931398

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY, new, parts list figure 3-13A

1шт.

2

J929490

NOZZLE INJECTION

ASSEMBLY fuel

6шт.

3

J906659

SEAL

injector nozzle, 7 mm tip

6шт.

4

A77512

ELBOW

90 degree

1шт.

5

J918536

FLEXIBLE HOSE,295.00 mm

Flexible

1шт.

6

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 1 cylinder

1шт.

7

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 2 cylinder

1шт.

8

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 3 cylinder

1шт.

9

J917716

BRACE

fuel tube

2шт.

10

J919359

CLAMP

vibration

2шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

12шт.

12

J904519

SUPPORT

tube retaining

4шт.

13

J917747

CLAMP

fuel tube

8шт.

14

J282942

BRACKET

fuel tube

2шт.

15

J940840

BRACE

fuel tube

1шт.

16

J932321

UNION

NIPPLE hex, 1/8 PT x 10 - 1.6 mm str thread, if used

1шт.

16

J941472

FITTING

NIPPLE hex, 7/16-20 inch flare x 10 - 1.0 mm str thread, if used, Includes: Ref. 16A

1шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

J917717

BRACE

fuel tube

3шт.

18

J917746

CLAMP

fuel tube

5шт.

19

CURJ904711

CLAMP

fuel tube

4шт.

20

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 4 cylinder

1шт.

21

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 5 cylinder

1шт.

22

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

fuel injector, No. 6 cylinder

1шт.

23

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

24

J903380

SEAL

connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

26

J933295

MANIFOLD

fuel tube

1шт.

27

J924726

BANJO BOLT

check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

29

J933291

TEE

oil pressure, 7/16-20 flare x flare x fem swivel, if used

1шт.

29

J924346

TEE

oil pressure, if used

1шт.

30

218-752

CAP,37 Degree, 7/16"-20

Hex

1шт.
