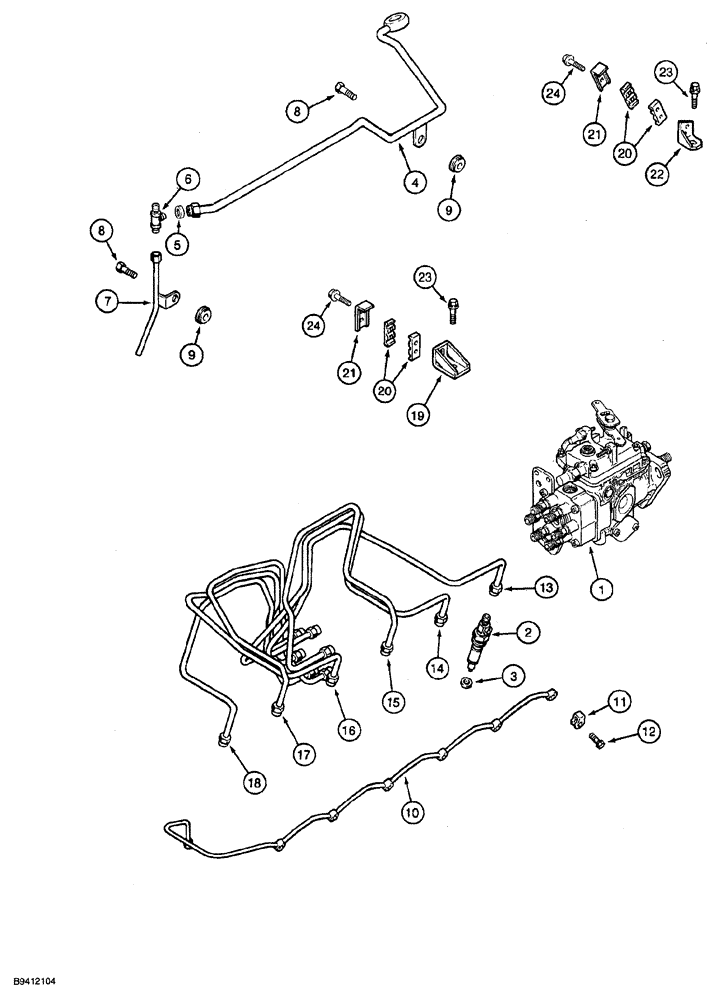

Запчасти Case 850G (3-08) - FUEL INJECTION SYSTEM (PRIOR TO P.I.N. JJG0254015, EXCEPT FOR JJG0254005 TO JJG0254009) (02) - FUEL SYSTEM

1

J922411

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel, new, parts list figure 3-12

1шт.

2

REF

INSTRUCTION

ASSEMBLY injector, fuel, see Figure 3-13A

6шт.

3

J906659

SEAL

NOZZLE injector, 7 mm tip, see Figure 3-13A, Ref. 3

6шт.

4

J920889

FUEL TUBE

fuel drain, Replaces: J905705, Includes: Ref. 5

1шт.

Fuel tubes bolt to tappet cover, see Figure 2-44, Ref. 22.

1шт.

5

222-101

SLEEVE,3/16" Tube

3/16 inch tube O.D.

1шт.

6

222-121

TEE,3/16", Flex Tubing

(Remove and discard hex nuts and sleeves before assembly)

1шт.

7

J905692

FUEL TUBE

fuel return, tee to fuel tank

2шт.

Fuel tubes bolt to tappet cover, see Figure 2-44, Ref. 22.

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

9

J928759

SEALING WASHER

BOLT cover, Replaces: J900267

2шт.

10

J909696

TUBE

DRAIN fuel, manifold

1шт.

11

J903380

SEAL

connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

13

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

fuel injector, No. 1 cylinder

1шт.

14

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

fuel injector, No. 2 cylinder

1шт.

15

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

fuel injector, No. 3 cylinder

1шт.

16

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

fuel injector, No. 4 cylinder

1шт.

17

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

fuel injector, No. 5 cylinder

1шт.

18

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

fuelinjector, No. 6 cylinder

1шт.

19

J282942

BRACKET

fuel tube, Replaces: J917777

1шт.

20

J917747

CLAMP

TUBE fuel

4шт.

21

J904519

SUPPORT

tube retaining

2шт.

22

J917778

BRACE

TUBE fuel

1шт.

23

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special

2шт.

24

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

Replaces J917712 bolt and J903723

2шт.
