Запчасти Case 850G (3-02) - THROTTLE CONTROL LINKAGE (01) - ENGINE

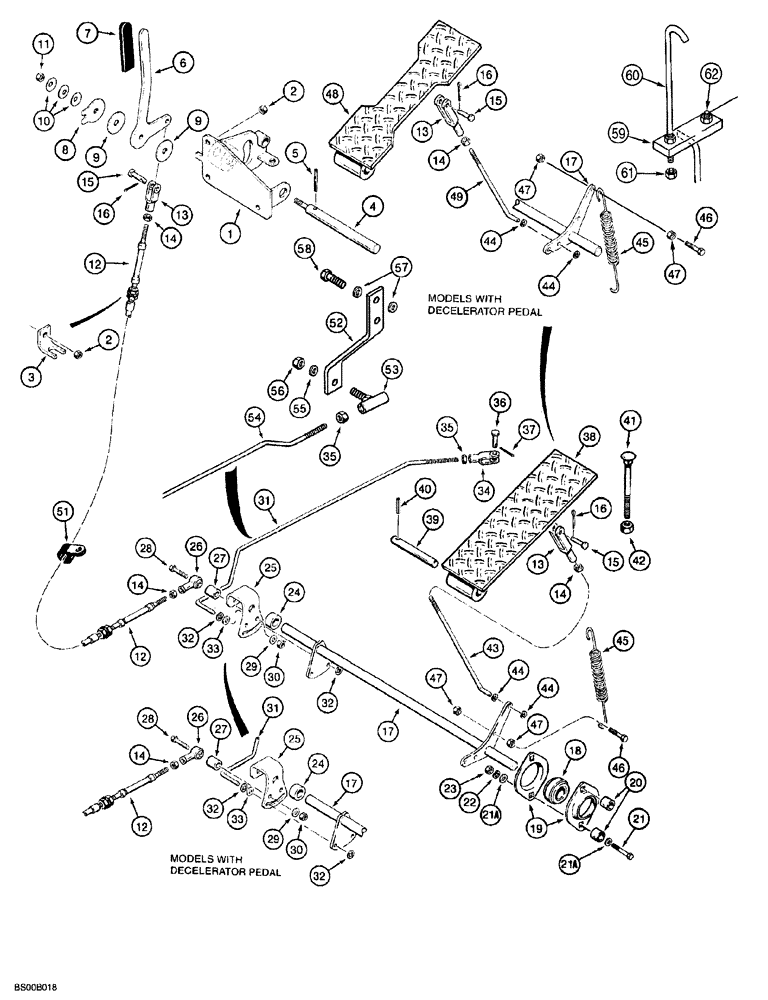

Схема запчастей Case 850G - (3-02) - THROTTLE CONTROL LINKAGE (01) - ENGINE
32
31
2
17
44
37
44
26
28
28
9
54
3
34
29
44
39
19
30
23
53
29
56
6
7
12
60
41
46
45
33
27
43
51
52
20
16
25
45
42
47
27
14
40
47
14
44
24
9
16
15
49
14
57
32
61
14
15
31
10
47
32
12
62
30
8
11
21
15
17
17
25
35
59
58
46
12
55
13
21a
26
16
18
48
13
38
13
47
5
35
1
24
21a
22
14
32
2
36
33
4

Артикул

Название

Примечание

Количество

1

106584A2

BRACKET

mounting, throttle and transmission controls, see Figure 6-34 for transmission control components, Replaces: 106584A1

1шт.

2

231-1446

NUT,3/8" - 16, Gr 5

4шт.

3

R52478

cable support

1шт.

4

R57937

SHAFT

pivot, throttle and transmission control levels

1шт.

5

38-11632

LOCK PIN,1/4" x 2", Slotted

1шт.

6

R57933

LEVER

throttle control

1шт.

7

R52376

MOLDING

GRIP lever, throttle control

1шт.

8

R57932

LARGE PLATE

PLATE, LARGE friction disc, throttle control

1шт.

9

R52389

DISC

friction, throttle lever

2шт.

10

R58742

WASHER

Belleville, throttle lever mounting

3шт.

11

231-1446

NUT,3/8" - 16, Gr 5

1шт.

12

R57954

CABLE

throttle control, hand

1шт.

13

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

14

425-115

NUT,5/16"-24, G5

2шт.

15

D149287

PIN,7.9mm OD x 26.72mm L

Clevis, Special, 5/16 x 15/16 inch, hardened, Replaces: 427-5094

2шт.

16

432-612

COTTER PIN,3/32" x 3/4"

2шт.

17

R57907

SHAFT

cross, throttle control

1шт.

18

468390R92

BALL BEARING,0.6255" ID x 40 mm OD x 0.75"

ball, throttle shaft

2шт.

19

F13526

FLANGED BEARING

bearing, cross shaft

4шт.

20

D34162

SPACER

flange

4шт.

21

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

21a

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

8шт.

22

492-11025

LOCK WASHER,1/4"

4шт.

23

425-104

NUT,1/4"-20, Cl 5

4шт.

24

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14.3 mm (9/16 inch)

1шт.

25

R57904

LEVER

cable control

1шт.

26

R47498

END

ball joint, throttle cable

1шт.

27

F13386

SPACER

ball joint end

1шт.

28

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

29

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

30

231-1445

NUT,5/16"-18, GB

1шт.

31

R58070

ROD

throttle, at injection pump

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

32

100-1425

SNAP RING,#25, Ext

2шт.

33

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

34

213-114

ADJUSTABLE CLEVIS,1/4" - 28

adjustable, 1/4 inch NF

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

35

425-114

NUT,1/4"-28, G5

1шт.

36

427-4077

CLEVIS PIN,1/4" x .770"

Hardened

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

37

432-58

COTTER PIN,5/64" x 1/2"

5/64" x 1/2"

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

42

425-108

NUT,1/2" - 13, Gr 5

1шт.

43

R57944

ROD

throttle, foot pedal

1шт.

44

100-1431

SNAP RING,#31, Ext

2шт.

45

R36912

SPRING

return, foot pedal

1шт.

46

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

47

425-104

NUT,1/4"-20, Cl 5

4шт.

48

R57935

PEDAL

foot throttle, decelerator, if used, for installation of decelerator parts, see instruction sheet Bur 8-79586

1шт.

49

R57909

ROD

pedal, decelerator, if used

1шт.

50

101638A1

DECAL

caution, this unit is equipped with a decelerator pedal, not shown, see Figure 9-82 for decal

1шт.

51

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

52

242864A1

LEVER

accelerator

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

53

225619A1

BALL JOINT

ROD throttle

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

54

256542A1

ROD

throttle, at injection pump, models without decelerator

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

55

492-11025

LOCK WASHER,1/4"

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

56

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

57

892-11006

LOCK WASHER,M6

4шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

58

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

59

D67114

PLATE

used with Ref. 48 decelerator pedal

1шт.

60

R27652

ROD

BOLT, J-type, used with Ref. 48 decelerator pedal

1шт.

61

425-105

NUT,5/16"-18, G5

Used with Ref 48 decelerator pedal

2шт.

62

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used with Ref. 48 decelerator pedal

1шт.
