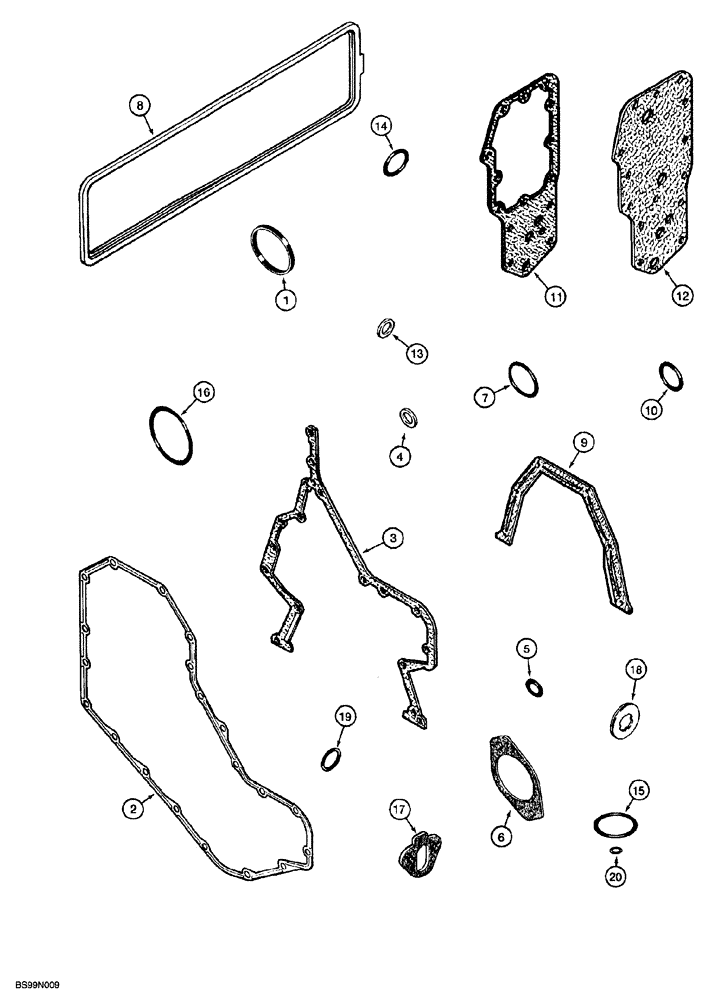

Запчасти Case 850G (2-55A) - GASKET KIT (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) CYLINDER BLOCK (01) - ENGINE

A77868

SEAL PACKAGE

gasket, cylinder block, Includes: Ref. 1 - 20

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-53A, cylinder block kit, oil pan kit, figure 2-35A, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-37A.

1шт.

2

J918673

GASKET,1.02mm Thk

front cover

1шт.

3

J931351

GASKET

gear housing

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

5

J913994

O-RING

sealing

1шт.

6

J929751

GASKET

PLATE access cover

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

8

J928832

GASKET

tappet cover, Replaces: J907617

1шт.

9

J928493

GASKET

rear cover retainer, Replaces: J914386

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

11

J942914

GASKET

oil cooler core

1шт.

12

J942915

GASKET

filter head

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2 inch) ID, engine oil filler

1шт.

15

J935032

SEAL

GASKET, engine oil cooler, Replaces: J930993

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

17

J931059

GASKET

mounting, fuel transfer pump, Replaces: J931348

1шт.

18

J928759

SEALING WASHER

cover bolt, push rod

8шт.

19

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

20

J929457

O-RING

sealing, engine oil cooler

1шт.
