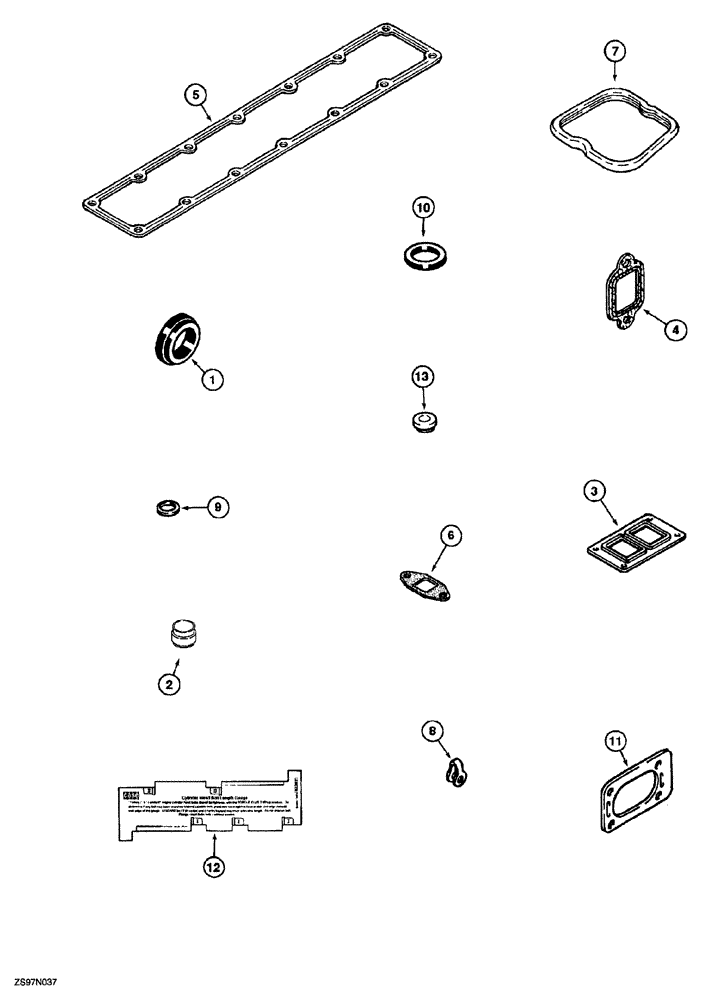

Запчасти Case 850G (2-53A) - GASKET KIT (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) VALVE GRIND (01) - ENGINE

A77871

SEAL PACKAGE

gasket, valve grind, no longer avalilable, order A77925, Includes: Ref. 1 - 13

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, on figure 2-36

1шт.

A77925

GASKET KIT

valve grind, Includes: Ref. 1 - 13

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, on figure 2-36

1шт.

1

J923331

GASKET

thermostat housing

1шт.

2

J901097

SEAL

valve stem, if used

6шт.

2

J921640

SEAL

valve stem

6-12шт.

3

J919369

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

4

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

5

J931347

GASKET

mounting intake manifold cover

1шт.

6

J931350

GASKET

turbo oil drain tube

1шт.

6

J931350

GASKET

turbo oil drain tube

1шт.

7

J930906

GASKET

SEAL rocker arm cover

6шт.

8

J903380

SEAL

connector, return manifold

6шт.

9

J906659

SEAL

injector nozzle, 7 mm tip

6шт.

10

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING, Serial Range: body-nut

6шт.

11

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

11

J930426

GASKET

air crossover connection

1шт.

12

J823921

GAUGE

cylinder head, bolt length

1шт.

13

J928406

ISOLATOR

noise, rocker arm cover

6шт.
