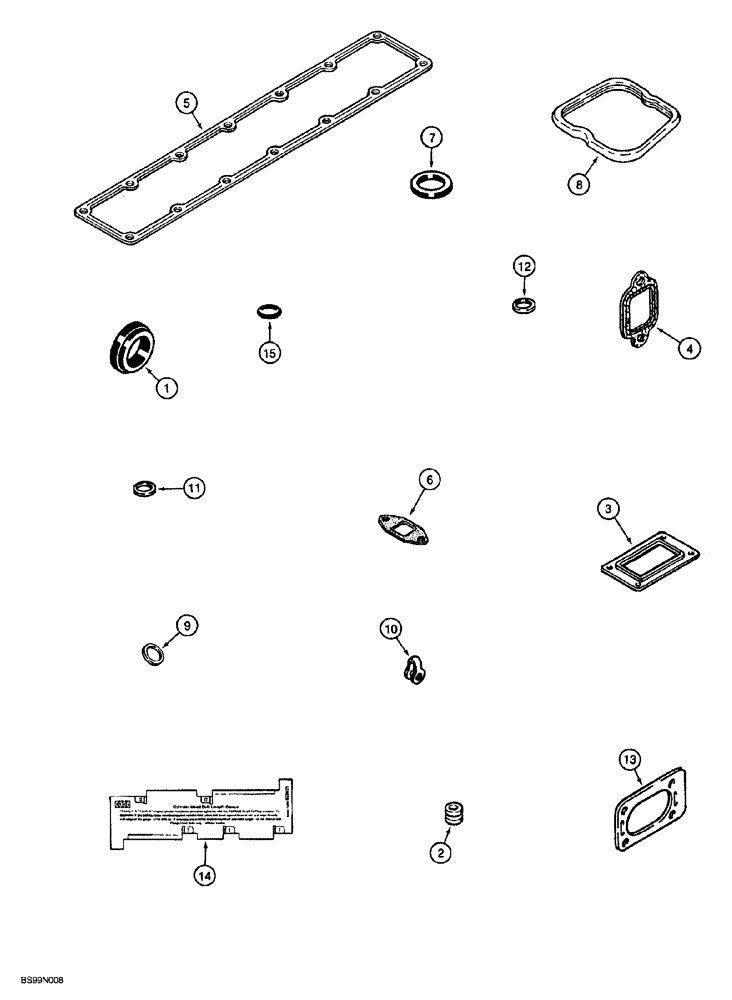

Запчасти Case 850G (2-52) - GASKET KIT (PRIOR TO P.I.N. JJG0254015, EXCEPT FOR JJG0254005 TO JJG0254009) VALVE GRIND (01) - ENGINE

1

J923331

GASKET

thermostat housing, Includes: Ref. 1 - 15

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, on figure 2-36

1шт.

2

J901097

SEAL

valve

12шт.

3

J919369

GASKET,0.5mm Thk

turbocharger to manifold, Replaces: J901356

1шт.

4

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

5

J914029

GASKET

mounting, intake manifold cover

1шт.

6

J928919

GASKET

turbo oil drain tube, Replaces: J914388

1шт.

7

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap, not used in this application

1шт.

8

J930906

GASKET

SEAL rocker arm cover, replaces: J902666 and J929795

6шт.

9

J900808

SEAL

injector nozzle, 9 mm tip

6шт.

10

J903380

SEAL

connector, return manifold

6шт.

11

J906659

SEAL

injector nozzle, 7 mm tip

6шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING, Serial Range: body-nut

6шт.

13

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

14

J823921

GAUGE

cylinder head, bolt length

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, rocker arm

6шт.

16

A77859

GASKET KIT

Valve Grind (Not Shown)

1шт.
