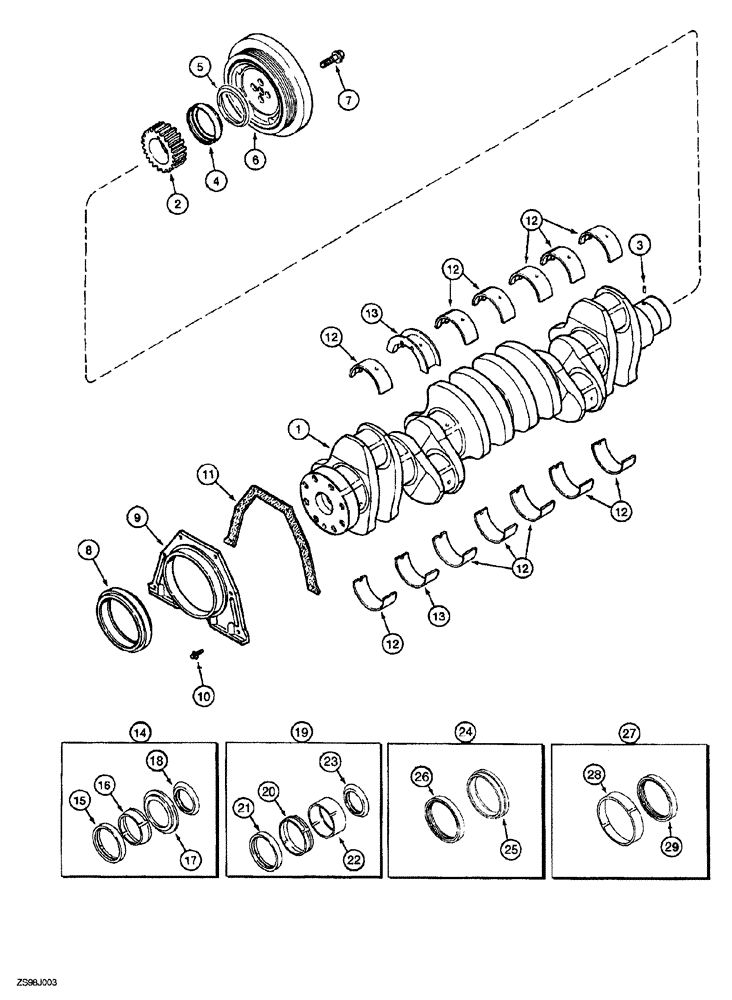

Запчасти Case 850G (2-46) - CRANKSHAFT (01) - ENGINE

JR908032

REMAN-CRANKSHAFT

ASSEMBLY engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, for service order J908032 crankshaft assembly, Ref. 1, Includes: Ref. 2 and 3

1шт.

JC908032

CORE-CRANKSHAFT

RETURN NUMBER, use this part number to return crankshaft core for credit when using a remanufactured assembly, Includes: Ref. 2 and 3

1шт.

1

J908032

CRANKSHAFT

ASSEMBLY engine, new, Includes: Ref. 2 and 3

1шт.

2

J929027

PINION

GEAR crankshaft, Replaces: J919681

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order item 14, J904353 kit

1шт.

5

J926430

SHAFT SEAL

CRANK dust, service repair only

1шт.

6

NLS

NO LONGER SERVICED

PULLEY crankshaft vibration damper

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, special, 12 - 1.25 x 36 mm

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft rear, order item 19, A77809 kit

1шт.

9

J921043

REAR COVER

RETAINER seal

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Heavy

6шт.

11

J928493

GASKET

RETAINER rear cover, Replaces: J91 4386

1шт.

12

A77405

CRANKSHAFT BEARING

main, upper and lower set, standard

6шт.

12

A77472

BEARING SET

main, upper and lower set, 0.25 mm undersize

6шт.

12

A77474

BEARING SET

main, upper and lower set, 0.50 mm undersize

6шт.

12

A77476

BEARING SET

main, upper and lower set, 0.75 mm undersize

6шт.

12

A77478

BEARING SET

main, upper and lower set, 1.00 mm undersize

6шт.

13

A77896

BEARING SET

main, upper and lower set, standard

1шт.

13

A77473

THRUST BEARING

main, upper and lower set, 0.25 mm undersize

1шт.

13

A77475

THRUST BEARING

main, upper and lower set, 0.50 mm undersize

1шт.

13

A77477

THRUST BEARING

main, upper and lower set, 0.75 mm undersize

1шт.

13

A77479

THRUST BEARING

main, upper and lower set, 1.00 mm undersize

1шт.

13

A77841

THRUST BEARING

main, upper and lower set, 0.50 mm undersize, 0.50 mm oversize

1шт.

13

A77840

THRUST BEARING

main, upper and lower set, 1.00 mm undersize, 1.00 mm oversize

1шт.

14

A77889

SEAL PACKAGE

oil, crankshaft front

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

18

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

19

A77890

SEAL PACKAGE

oil seal, crankshaft front, includes wear sleeve

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

23

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

24

J934486

SERVICE KIT

oil seal, crankshaft rear, Replaces: J909410 and J353978

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

27

A77810

SERVICE KIT

oil seal, crankshaft rear, includes wear sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.
