Запчасти Case 850G (2-40) - CAMSHAFT (PRIOR TO P.I.N. JJG0254015, EXCEPT FOR JJG0254005 TO JJG0254009) (01) - ENGINE

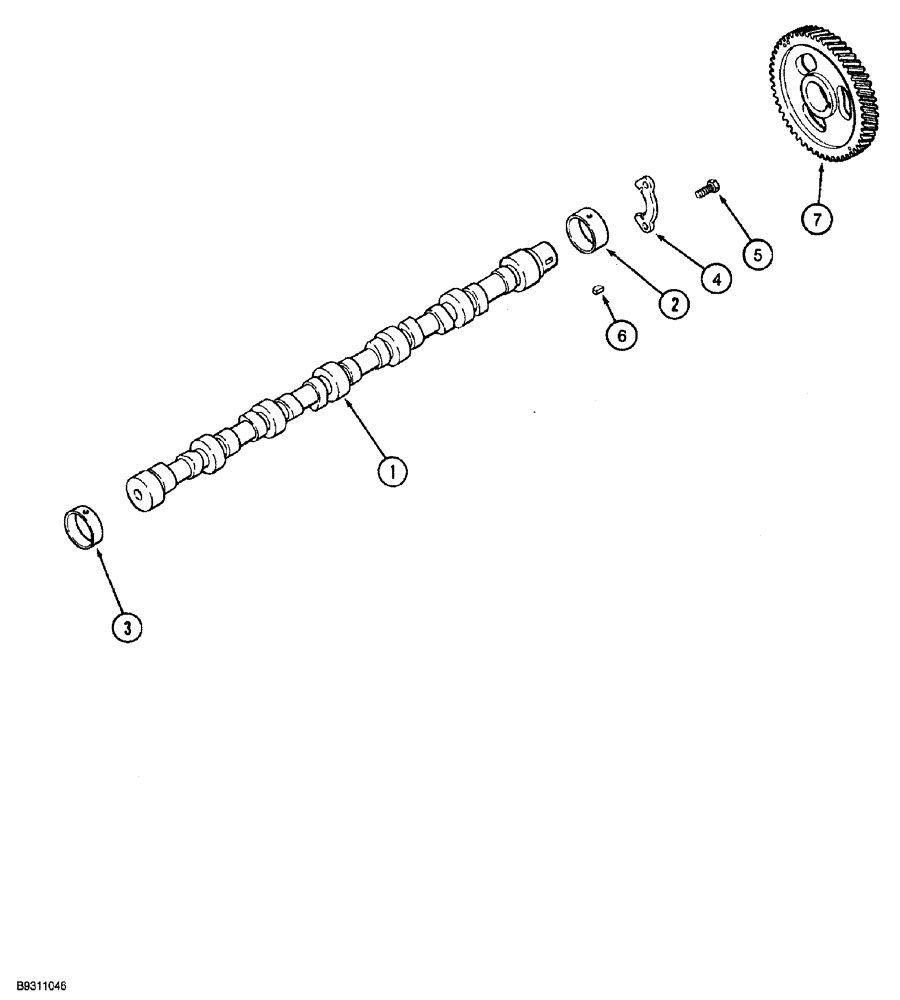

Схема запчастей Case 850G - (2-40) - CAMSHAFT (PRIOR TO P.I.N. JJG0254015, EXCEPT FOR JJG0254005 TO JJG0254009) (01) - ENGINE
3
5
1
6
7
4
2

Артикул

Название

Примечание

Количество

1

J929042

CAMSHAFT

ENGINE, Replaces: J914639

1шт.

J929042R

REMAN-CAMSHAFT

850G CRAWLER CAMSHAFT (PRIOR TO P.I.N. JJG0254015, EXCEPT FOR JJG0254005 TO JJG0254009) (1/94-)

1шт.

J929042C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

camshaft, front

1шт.

2

J904369

BUSHING

camshaft, front, oversize, 58 mm O.D.

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

camshaft, intermediate and rear, service repair only

6шт.

When the intermediate and rear cylinder block camshaft bores are reamed in entine repair, order and install J903242 bushings.

1шт.

4

J927155

SUPPORT

thrust, camshaft, Replaces: J914641

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Replaces J902332

1шт.

7

J929030

PINION

GEAR camshaft, Replaces: J907431

1шт.

Выбрано товаров: 11
