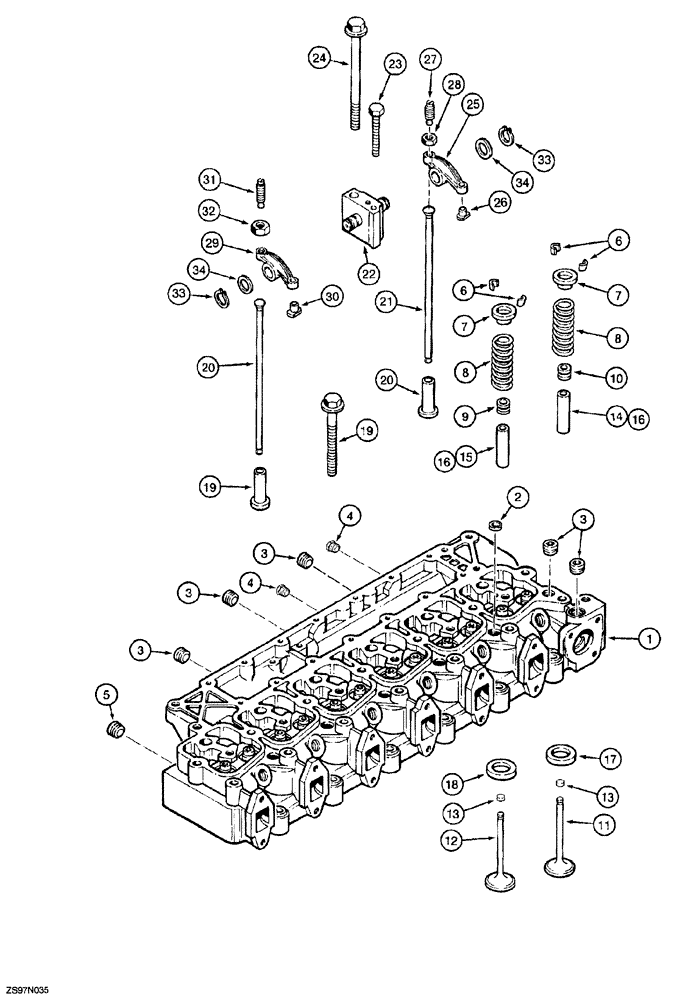

Запчасти Case 850G (2-39A) - CYLINDER HEAD AND VALVE MECHANISM (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (01) - ENGINE

JR934769

REMAN-CYLINDER HEAD

ASSEMBLY remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 12

1шт.

JC927301

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly, Includes: Ref. 1 - 12

1шт.

J934769

HEAD (CYLINDER)

ASSEMBLY new, with valves, Includes: Ref. 1 - 12

1шт.

1

J934746

HEAD (CYLINDER)

ASSEMBLY without valves, Includes: Ref. 2

1шт.

2

A77782

PLUG

expansion, 58 mm O.D.

5шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

5

A77505

PLUG

hex socket, 3/4 inch PT

1шт.

6

J900250

SCREW

KEEPER valve

24шт.

7

J935038

RETAINER

SPRING valve Replaces: J900299

12шт.

8

J926700

VALVE SPRING

Replaces: J900276

12шт.

9

J901097

SEAL

intake valve

6шт.

10

J921640

SEAL

exhaust valve

6шт.

11

J920867

VALVE

intake

6шт.

12

J920868

VALVE

exhaust

6шт.

13

J280911

WEAR PAD

valve stem tip, for use on intake and exhaust valves, Replaces: J910412

1шт.

14

J904408

GUIDE

intake valve, service repair only, 14 mm O.D.

6шт.

This part is a semi-finished valve guide.

1шт.

15

J904409

GUIDE

exhaust valve, service repair only, 14 mm O.D.

6шт.

This part is a semi-finished valve guide.

1шт.

16

J906206

GUIDE

VALVE intake and exhaust, service repair only, 11 mm O.D.

12шт.

This part is a semi-finished valve guide.

1шт.

17

J906854

SEAT, VALVE

intake, insert, service repair only

6шт.

18

J904105

SEAT, VALVE

exhaust, insert, service repair only

6шт.

19

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

6шт.

19

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

14шт.

20

J931623

TAPPET

ROD push, valve, Replaces: J907240 and J925031

12шт.

21

J923262

PUSH ROD

ARM rocker

12шт.

22

J922488

SUPPORT

ASSEMBLY shaft, rocker arm

6шт.

23

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

Rocker arm and cylinder head

6шт.

24

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

6шт.

25

J910811

ROCKER

ASSEMBLY arm, intake, Includes: Ref. 26 - 28

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

set, slotted, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

29

J910810

ROCKER

ASSEMBLY arm, exhaust, Includes: Ref. 30 - 32

6шт.

30

NSS

NOT SOLD SEPARAT

INSERT arm

1шт.

31

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

32

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

33

J900242

SNAP RING

ARM rocker, retaining

12шт.

34

J900245

WASHER

ARM rocker, thrust, rocker arm

12шт.
