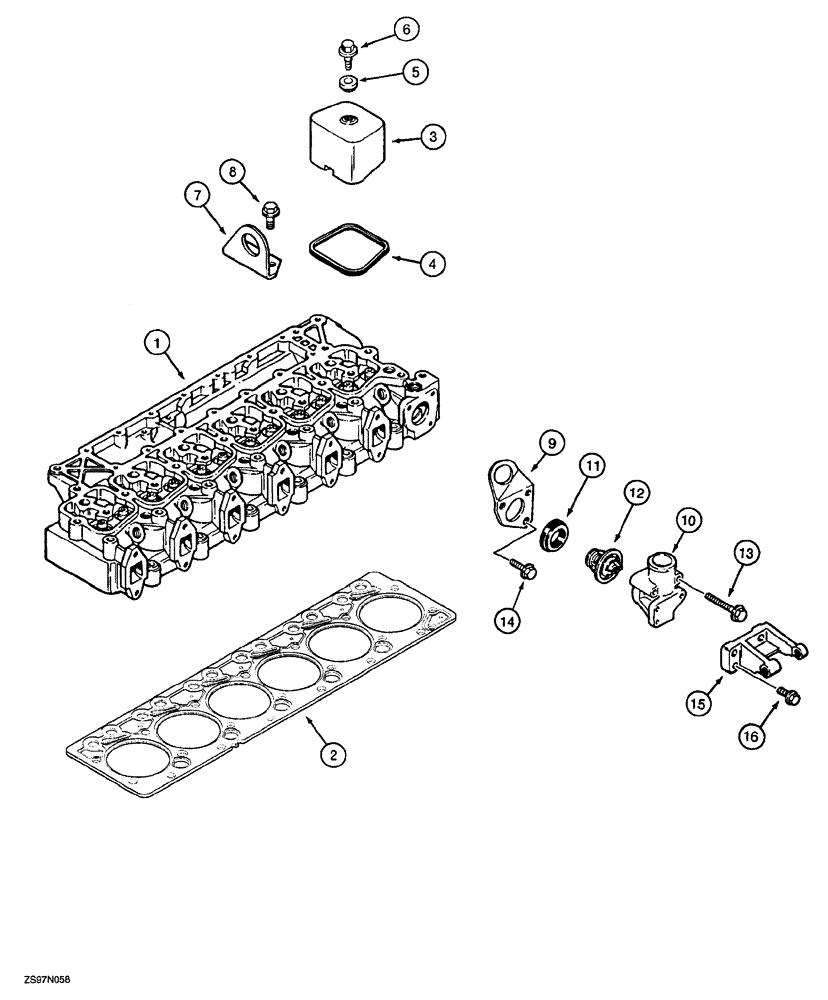

Запчасти Case 850G (2-37A) - CYLINDER HEAD COVER (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (01) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, see Figure 2-38A for correct cylinder head and parts list

1шт.

2

J283335

GASKET,2.32mm Thk

head standard

1шт.

2

J283337

GASKET,2.24mm Thk

head, 1 notch, 0.25 mm thicker

1шт.

2

J283339

GASKET

head, 2 notches, 0.50 mm thicker

1шт.

3

J928404

COVER

ARM rocker

6шт.

4

J930906

GASKET

SEAL cover, rocker arm, Replaces: J902666

6шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

BOLT cover, noise, Replaces: J928406

6шт.

6

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

7

J908118

BRACKET

rear, lifting

1шт.

8

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

flange, heavy hex , 12 - 1.75 x 30 mm, class 10.9

2шт.

9

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

10

J914409

HOUSING

thermostat

1шт.

A77736

THERMOSTAT

coolant thermostat, Replaces: A77920, and housing, Includes: Ref. 11 and 12

1шт.

11

J923331

GASKET

thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT coolant, and housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

15

J923387

SUPPORT

alternator mounting, Replaces: J910713, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat and housing

3шт.
