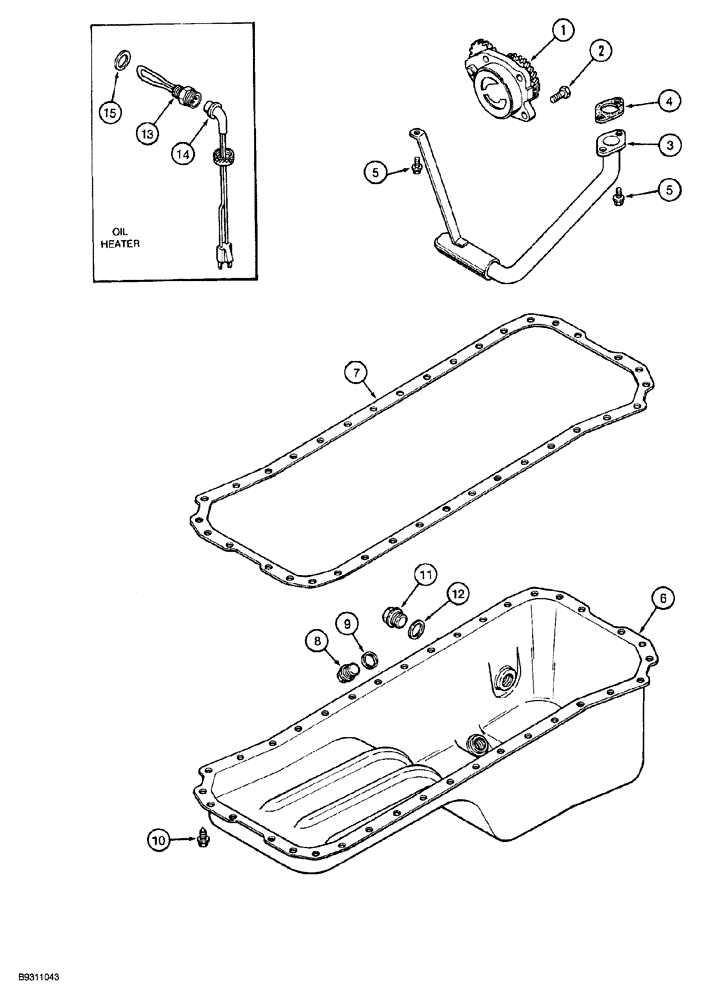

Запчасти Case 850G (2-35A) - OIL PUMP AND OIL PAN (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (01) - ENGINE

1

J941742

PUMP, ENGINE OIL

ASSEMBLY new

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

J900677

BOLT,Hex

hex, full threads, 8 - 1.25 x 30 mm, Replaces: 614-8030

4шт.

3

J934942

TUBE,1" OD

lube oil suction, Replaces: J909373

1шт.

4

J931349

GASKET

mounting, oil suction tube

1шт.

Part of Gasket Kit, P/N A77676

1шт.

5

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

3шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET oil pan

1шт.

Part of Gasket Kit, P/N A77676

1шт.

8

J924147

PLUG,M18 x 1.5

hex magnetic, special, 12 mm - 1.5, Replaces: J911638

1шт.

9

J920773

SEALING WASHER

1шт.

Part of Gasket Kit, P/N A77676

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

8 - 1.25 x 25 mm

36шт.

11

J924148

PLUG,M22 x 1.5

hex magnetic, special, 22 mm - 1.5, Replaces: J904386

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

A77676

GASKET KIT

oil pan

1шт.

A77490

KIT

heater, engine oil, Includes: Ref. 13 and 14

1шт.

When Heater Kit is ordered, also order P/N J902425 washer

1шт.

13

NSS

NOT SOLD SEPARAT

HEATER engine oil

1шт.

14

196466A1

ELECTRIC CABLE

engine block heater, Replaces: J905113

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

plug, sealing

1шт.
