Запчасти Case 850G (2-30) - TURBOCHARGER ASSEMBLY (PRIOR TO P.I.N. JJG0254015, EXCEPT FOR JJG0254005 TO JJG0254009) (01) - ENGINE

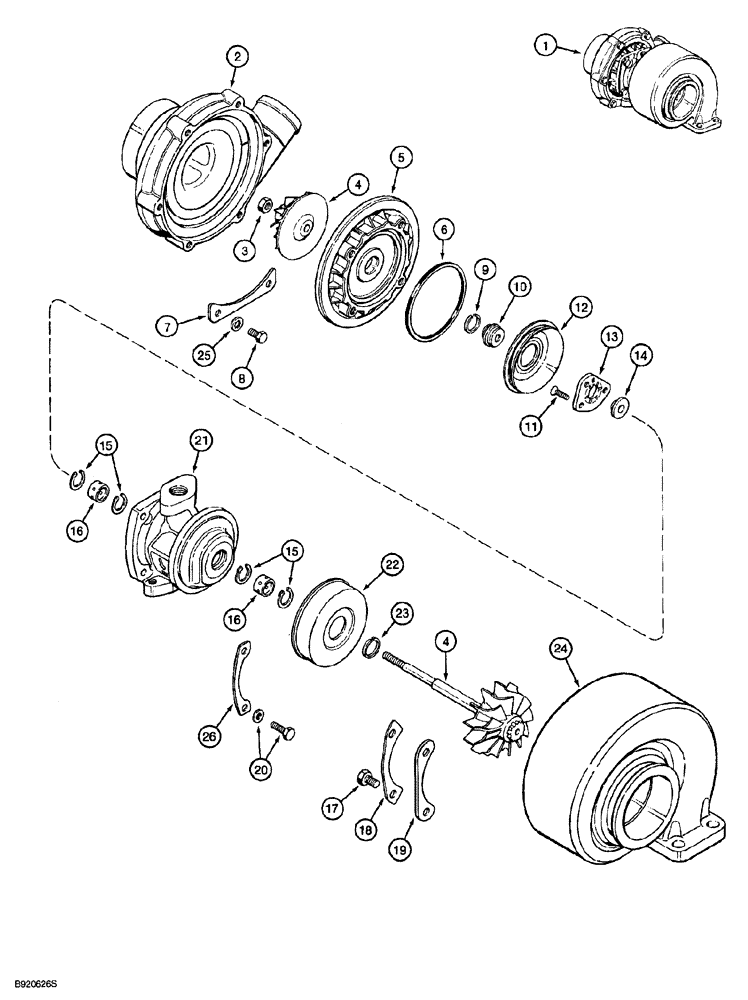

Схема запчастей Case 850G - (2-30) - TURBOCHARGER ASSEMBLY (PRIOR TO P.I.N. JJG0254015, EXCEPT FOR JJG0254005 TO JJG0254009) (01) - ENGINE
4
15
6
9
1
26
4
22
14
2
8
17
16
25
20
13
10
23
11
7
21
16
3
5
24
12
18
19
15

Артикул

Название

Примечание

Количество

1

JR802289

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

J919113

TURBOCHARGER

ASSEMBLY engine, new, Includes: Ref. 2 - 26

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR907028

REMAN-TURBOCHARGER

Engine Remanufactured, Component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 26

1шт.

1

JC907028

CORE-TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit when using a remanufactured assembly, Includes: Ref. 2 - 26

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex lock

1шт.

4

NSS

NOT SOLD SEPARAT

ASSEMBLY rotor, turbocharger

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of Overhaul Kit P/N J545652

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

SCREW cap

4шт.

Part of Overhaul Kit P/N J545652

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL split ring, compressor

1шт.

Part of Overhaul Kit P/N J545652

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW flat head Torx

3шт.

Part of Overhaul Kit P/N J545652

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of Overhaul Kit P/N J545652

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING snap, retaining

4шт.

Part of Overhaul Kit P/N J545652

1шт.

16

NSS

NOT SOLD SEPARAT

BEARINGimpeller shaft

2шт.

Part of Overhaul Kit P/N J545652

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT plate retaining

4шт.

Part of Overhaul Kit P/N J545652

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing

2шт.

Part of Overhaul Kit P/N J545652

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT hex

4шт.

Part of Overhaul Kit P/N J545652

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL piston ring, turbine

1шт.

Part of Overhaul Kit P/N J545652

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER lock

8шт.

Part of Overhaul Kit P/N J545652

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE lock, turbine

2шт.

J545652

PACKAGE, REPAIR

KIT overhaul, turbocharger, Replaces: J904772 kit

1шт.

Выбрано товаров: 43
