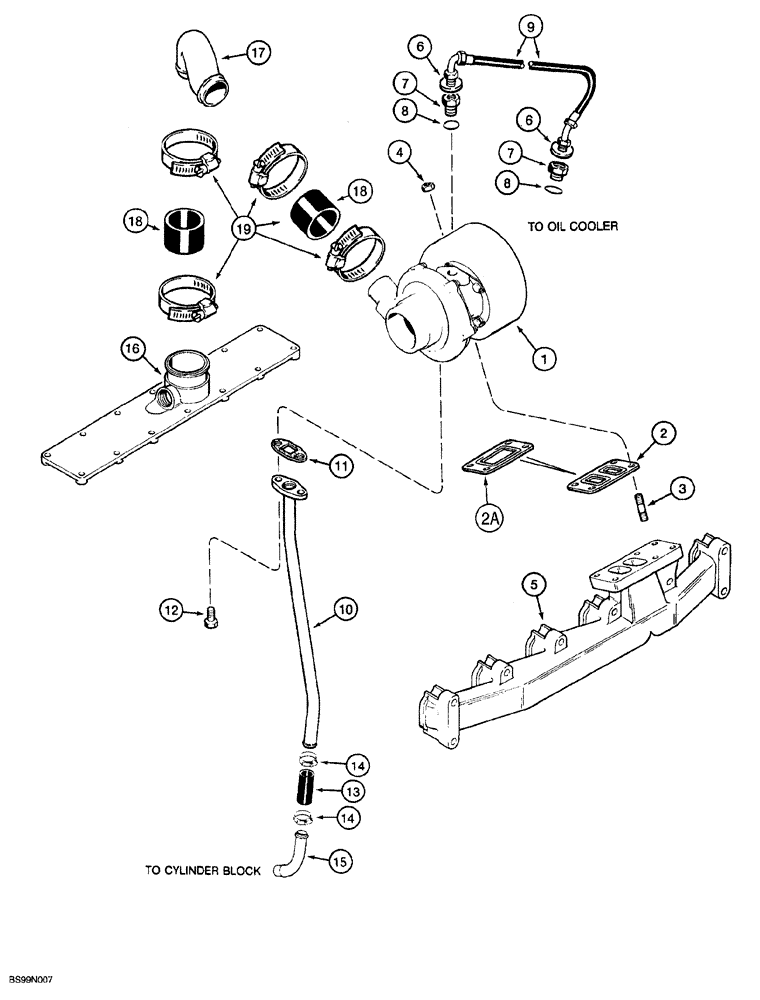

Запчасти Case 850G (2-29A) - TURBOCHARGER SYSTEM (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (01) - ENGINE

1

REF

INSTRUCTION

ASSEMBLY turbocharger, engine, see Figure 2-30B for correct assembly

1шт.

2

J901356

GASKET,0.5mm Thk

turbocharger to manifold, no longer available, Order: J919369

1шт.

2a

J919369

GASKET,0.5mm Thk

turbocharger to manifold, Replaces: J901356

1шт.

3

J818823

STUD

turbocharger mounting

4шт.

4

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5, turbocharger mounting

4шт.

5

J931747

MANIFOLD

exhaust, see Figure 2-26B, Ref. 1, Replaces: J901683

1шт.

6

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

7

J919687

HYD CONNECTOR

ADAPTER female hex, special, Includes: Ref. 8

2шт.

8

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

9

J918562

HOSE

538 mm (21-3/16 inch) long, turbocharger

1шт.

10

J934093

TUBE

turbocharger oil drain, upper

1шт.

11

J931350

GASKET

TUBE turbo oil drain

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

13

J931970

HOSE,22.22 mm ID x 76.20 mm

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj., Turbocharger drain hose

2шт.

15

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

turbocharger oil drain

1шт.

16

J904862

COVER

intake manifold, see Figure 2-26B, Ref. 4

1шт.

17

J931453

TUBE,63.5 mm OD x 254.77 mm L

air intake, crossover

1шт.

18

J916529

TRANSMISSION SLEEVE

HOSE, 76 mm (3 inch) long, Replaces: J931805

1шт.

19

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

4шт.
