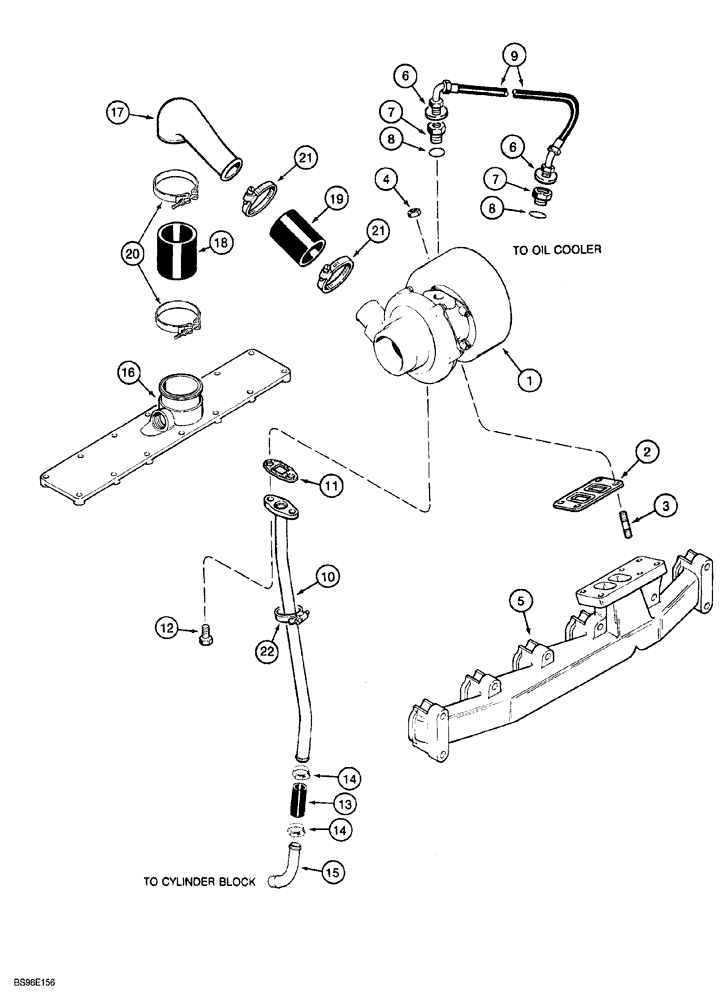

Запчасти Case 850G (2-28) - TURBOCHARGER SYSTEM (PRIOR TO P.I.N. JJG0254015, EXCEPT FOR JJG0254005 TO JJG0254009) (01) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY, engine, see figure 2-30 for correct assembly

1шт.

2

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

3

J818823

STUD

turbocharger mounting

4шт.

4

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5, turbocharger mounting

4шт.

5

J901683

MANIFOLD

exhaust, see Figure 2-26, Ref. 1

1шт.

6

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

7

J919687

HYD CONNECTOR

ADAPTER female hex, special, Includes: Ref. 8

2шт.

8

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

9

J918562

HOSE

538 mm (21-3/16 inch) long, turbocharger

1шт.

10

J918579

TUBE

DRAIN turbocharger oil, upper

1шт.

11

J928919

GASKET

TUBE turbo oil drain, Replaces: J914388

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

13

J931970

HOSE,22.22 mm ID x 76.20 mm

Replaces J903745

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj., Turbocharger drain hose

2шт.

15

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

turbocharger oil drain

1шт.

16

J904862

COVER

intake manifold, see Figure 2-27, Ref. 4

1шт.

17

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

air intake

1шт.

18

J916529

TRANSMISSION SLEEVE

HOSE, 76 mm (3 inch) long

1шт.

19

J916166

INTAKE AIR HOSE

71 mm (2-3/4 inch) long

1шт.

20

J924386

COLLAR CLAMP

adjustable hose, special, retaining

2шт.

21

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

adj., 1-5/16 - 2-1/4 inch dia.

2шт.

22

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

adj., 3-1/4 - 4-1/8 inch dia., order separately, not included with engine, used to hold Ref. 9 to Ref. 10.

1шт.
