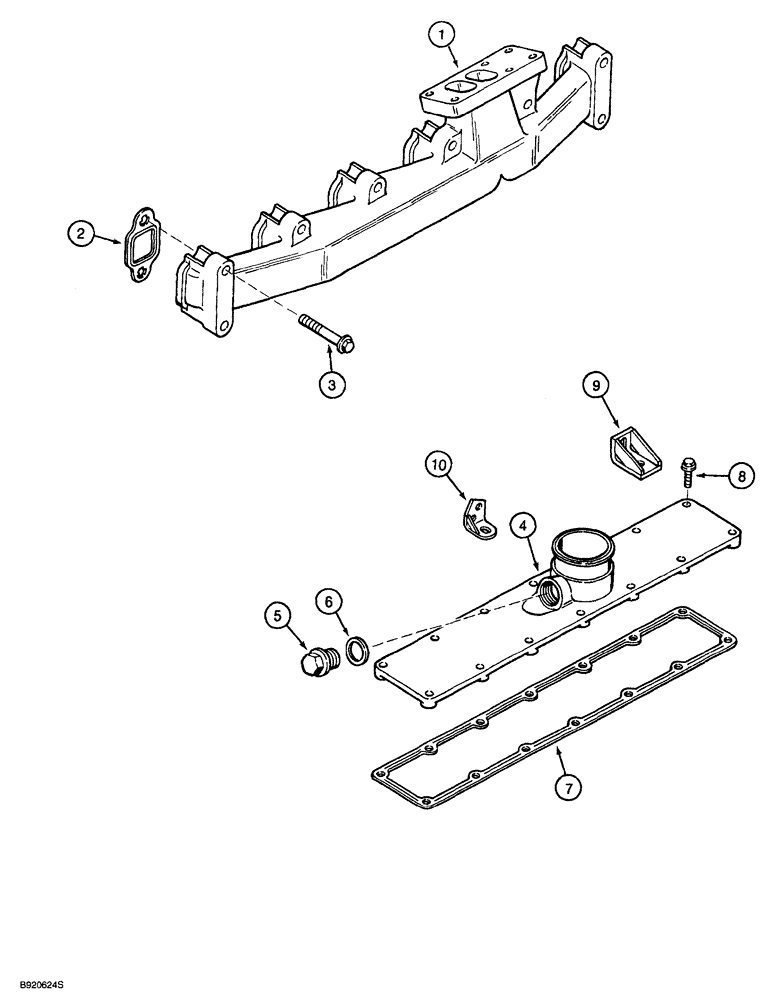

Запчасти Case 850G (2-27A) - EXHAUST & INTAKE MANIFOLDS (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (01) - ENGINE

1

J931747

MANIFOLD

exhaust, turbocharged, Replaces: J901683

1шт.

2

J927154

GASKET,0.38mm Thk

exhaust manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

Replaces J930249, exhaust

12шт.

A77418

KIT

manifold, no longer available, order Refs. 4 - 6 separately, intake

1шт.

4

J904862

COVER

intake manifold

1шт.

5

J907185

PLUG

manifold, remove to install cold start, intake

1шт.

6

J906773

WASHER

plug sealing, intake

1шт.

7

J931347

GASKET

mounting, intake

1шт.

8

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Intake

14шт.

9

J917777

BRACE

fuel, see figure 3-9, Ref. 19, intake

2шт.

10

J917778

BRACE

fuel, see figure 3-9, Ref. 22, intake

2шт.
