(2-25A) - FRONT GEAR COVER (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER)

Запчасти Case 850G (2-25A) - FRONT GEAR COVER (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (01) - ENGINE

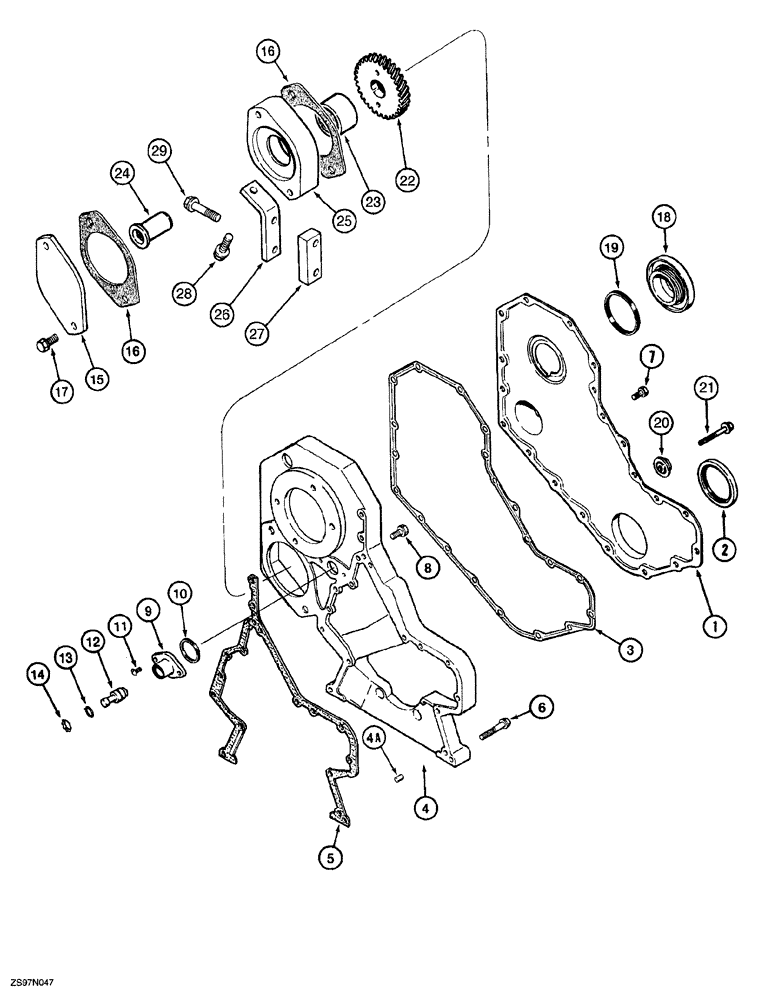

Схема запчастей Case 850G - (2-25A) - FRONT GEAR COVER (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (01) - ENGINE
10
6
2
27
4a
25
13
7
18
26
29
23
1
11
20
16
28
5
21
22
9
19
15
14
4
16
3
24
8
17
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J918675

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankcase front, Order Ref. 14, J904353 kit on figure 2-47

1шт.

3

J918673

GASKET,1.02mm Thk

front cover

1шт.

4

J932120

HOUSING

timing gear

1шт.

4a

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long, if used, timing gear housing to timing gear cover

2шт.

5

J931351

GASKET

gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

External, timing gear cover to housing

11шт.

7

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, internal, timing gear housing to timing gear cover

8шт.

8

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, internal, timing gear housing to engine block

5шт.

9

J919683

HOUSING

PIN timing

1шт.

10

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

11

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

12

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

13

J913994

O-RING

SEALING

1шт.

14

100-2587

SNAP RING,0.875", Int, #87

(Replaces J904849)

1шт.

15

J914868

COVER

PLATE access cover, flat

1шт.

Removed to install the equipment hydraulic pump. See figure 8-06 for equipment hydrauic pump mounting.

1шт.

16

J929751

GASKET

PLATE access cover, one located between pump and pump adapter and one between pump adapter and timing gear cover at final installation.

2шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

Removed to install the equipment hydraulic pump. See figure 8-06 for equipment hydrauic pump mounting.

1шт.

18

J903463

PLUG,M63 x 5

front access, fuel pump drive gear

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

COVER front access, fuel pump drive gear

1шт.

20

J912772

RETAINER

BOLT

1шт.

21

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

Heavy

1шт.

22

J931338

GEAR

drive, Replaces: J902595

1шт.

23

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

pump

1шт.

24

J923242

SHAFT

accessory drive

1шт.

25

J923237

ADAPTER

hydraulic pump

1шт.

26

J931825

BRACE

pump

1шт.

27

J931996

SPACER

mounting

1шт.

28

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

flange, heavy hex, 12 - 1.75 x 25 mm, class 10.9

1шт.

29

854-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

2шт.
