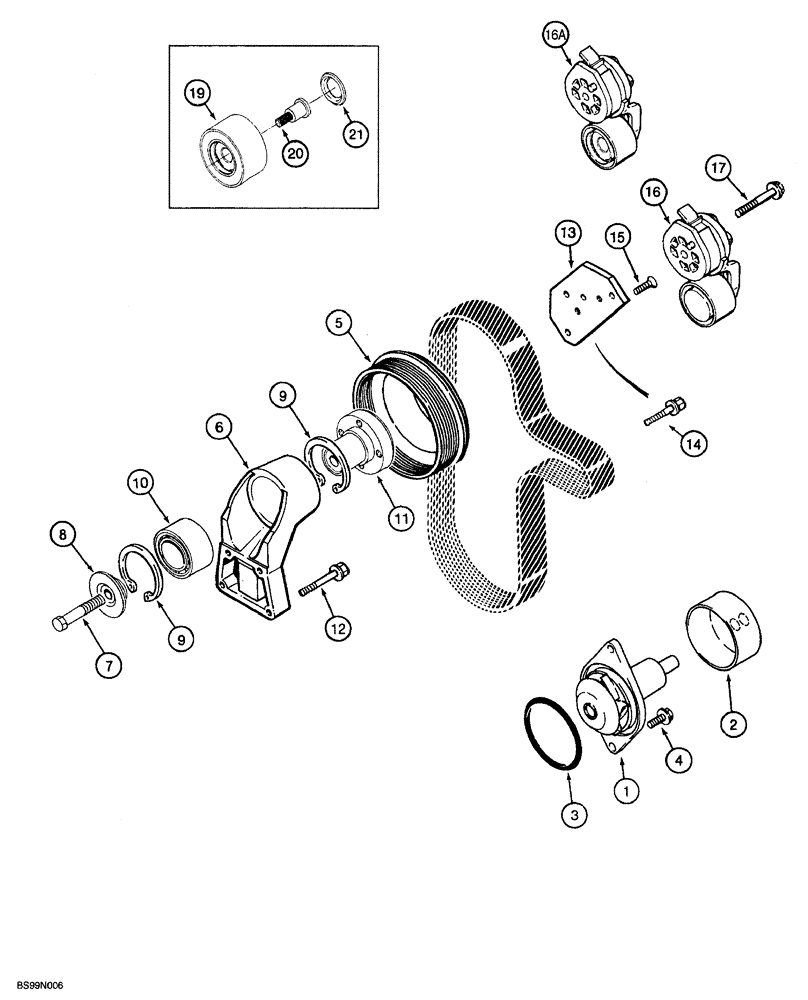

Запчасти Case 850G (2-22) - WATER PUMP SYSTEM 6T-590 ENGINE, 6T-590 EMISSION CERTIFIED ENGINE (01) - ENGINE

J802358

PUMP, WATER

KIT, Replaces: A77703, Includes: Ref. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

850G

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

fan, 1.1 to 1 ratio

1шт.

6

J911922

SUPPORT ASSY.

fan pulley, Includes: Ref. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, 10-1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

HUB fan

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

FAN

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

Fan bracket to cylinder block

4шт.

13

J925207

SUPPORT

belt tensioner, Replaces: J919985

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap, Special

1шт.

16

J918944

BELT TENSIONER

belt, Replaces: J914086, no longer available, Order: J934817

1шт.

16a

J934817

BELT TENSIONER

belt, Replaces: J918944

1шт.

17

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

Belt tensioner mounting

1шт.

18

A77817

KIT

belt tensioner pulley, used to replace pulley of J918944 belt tensioner, Ref. 16, Includes: Ref. 18 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL bolt

1шт.
