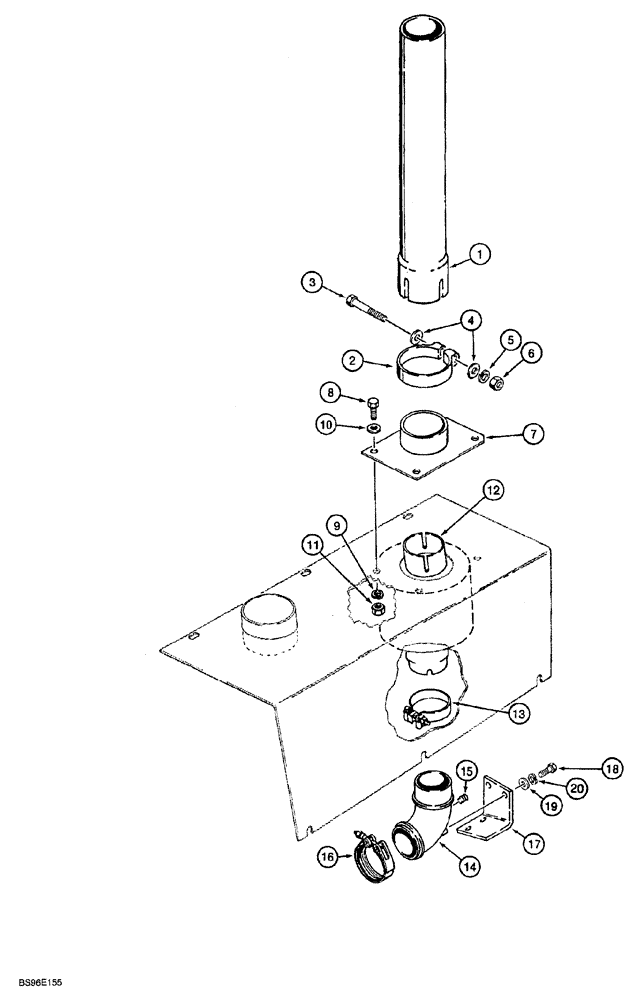

Запчасти Case 850G (2-20) - MUFFLER MOUNTING AND EXHAUST PARTS (01) - ENGINE

1

189279A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

2

R27699

CLAMP,114.3mm

PIPE exhaust

1шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

3

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

4

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

flat, 13/32 x 13/16 x 1/16 inch

2шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

6

129-770

NUT,3/8"-16, G5

1шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

7

189473A1

MOUNTING PARTS

PLATE exhaust pipe mounting, replaces: 189673A1

1шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

10

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

11

129-770

NUT,3/8"-16, G5

If used

4шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

12

182284A2

MUFFLER

1шт.

13

190981A1

CLAMP,76.2mm ID

BAND, Includes hardware, muffler

1шт.

Part of Service Repair Kit, P/N 192381A1

1шт.

14

A173623

ELBOW

1шт.

15

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

square, 1/4 inch PT, service with 221-841

1шт.

16

A170467

CLAMP,72mm ID

includes hardware

1шт.

17

245066A1

BRACKET

elbow mounting, Replaces: A171823

1шт.

18

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

19

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

20

892-11010

LOCK WASHER,M10

4шт.

192381A1

SPARE PART SET

KIT service replacement, Includes Refs: 1 - 11 and 13, and an instruction sheet

1шт.
