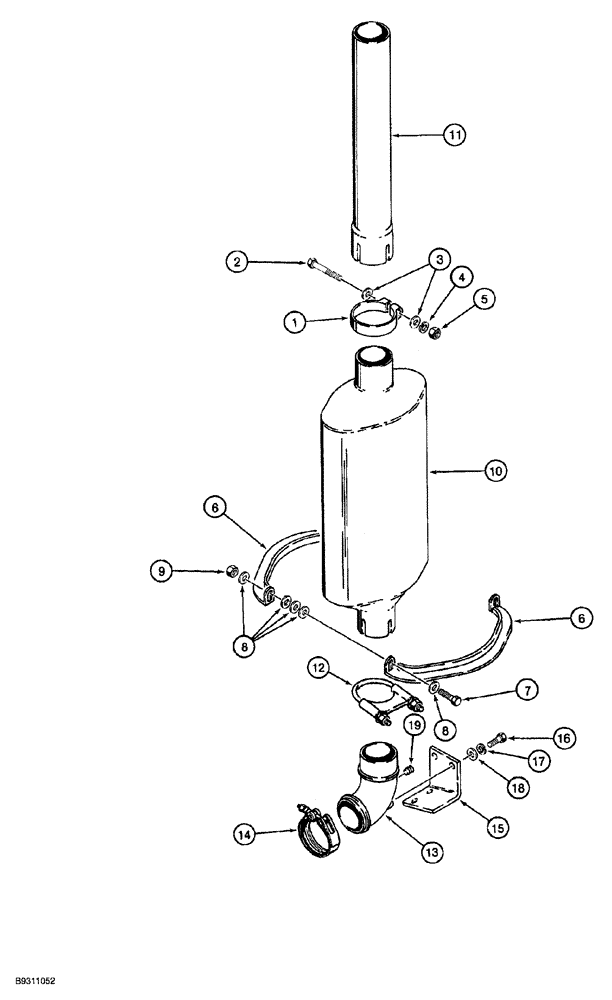

Запчасти Case 850G (2-18) - MUFFLER MOUNTING AND EXHAUST PARTS (01) - ENGINE

1

R48710

CLAMP,85.7mm

muffler to exhaust pipe

1шт.

2

113-2271

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

3

195-81020

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

(13/32" x 13/16" x 1/16")

2шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

129-770

NUT,3/8"-16, G5

1шт.

6

R52400

FIXING BRACKET

FLANGE muffler

2шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

8

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

10шт.

9

231-4115

NUT,5/16"-18, GB

2шт.

10

1547970C1

MUFFLER

turbo exhaust, no longer available, for service replacement, order 182284A2 muffler, Ref. 12, figure 2-21 and 192381A1 replacement kit shown on page 2-21

1шт.

11

R50400

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

12

122594A1

CLAMP,86.46mm

includes hardware, muffler to turbocharger tube, Replaces: S65056

1шт.

13

A173623

ELBOW

1шт.

14

A170467

CLAMP,72mm ID

includes hardware, at turbocharger

1шт.

15

A171823

BRACKET

TUBE turbocharger

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

17

892-11010

LOCK WASHER,M10

4шт.

18

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

19

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

In elbow, Replaces 221-841

1шт.
