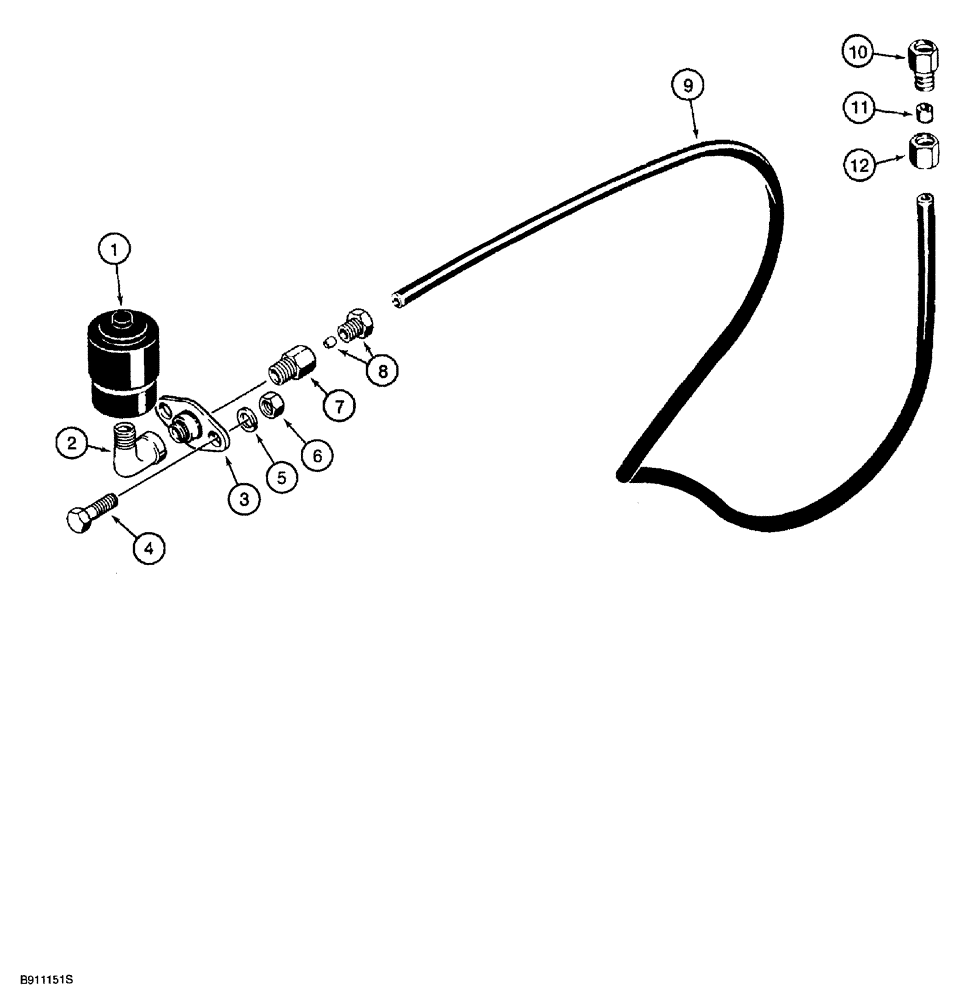

Запчасти Case 850G (2-16) - AIR RESTRICTION INDICATOR (01) - ENGINE

1

A59569

INDICATOR

air restriction

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street

1шт.

3

H357707

FLANGE

BRACKET restriction indicator mounting

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

492-11025

LOCK WASHER,1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

2шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER compression, 1/8 tube O.D. x 1/8 inch PT

1шт.

7

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

8

222-500

TUBE NUT,5/16" - 24 NPT

hex, 1/8 tube O.D. x 5/16-24 inch, includes sleeve

1шт.

9

R49591

PLASTIC-RUBBER TUBE,3.18 mm OD x 530 mm L

nylon, 530 mm (20-7/8 inch) long

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

D35091

PIPE FITTING

ADAPTER ASSEMBLY straight, compression, at air cleaner hose

1шт.

10

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

11

D37176

SLEEVE

compression

1шт.

12

D37362

TUBE NUT

compression

1шт.

L60539X

TUBE

bulk, nylon, 3 (1/8) ID x 4267 mm (168 inch) long

1шт.
