(850G) - CASE CRAWLER TRACTOR (1/94-12/99)
/
(01) - ENGINE
/

(2-14) - AIR CLEANER ASSEMBLY PRIOR TO PIN JJG254015, EXCEPT FOR JJG0254005 THROUGH JJG0254009

Запчасти Case 850G (2-14) - AIR CLEANER ASSEMBLY PRIOR TO PIN JJG254015, EXCEPT FOR JJG0254005 THROUGH JJG0254009 (01) - ENGINE

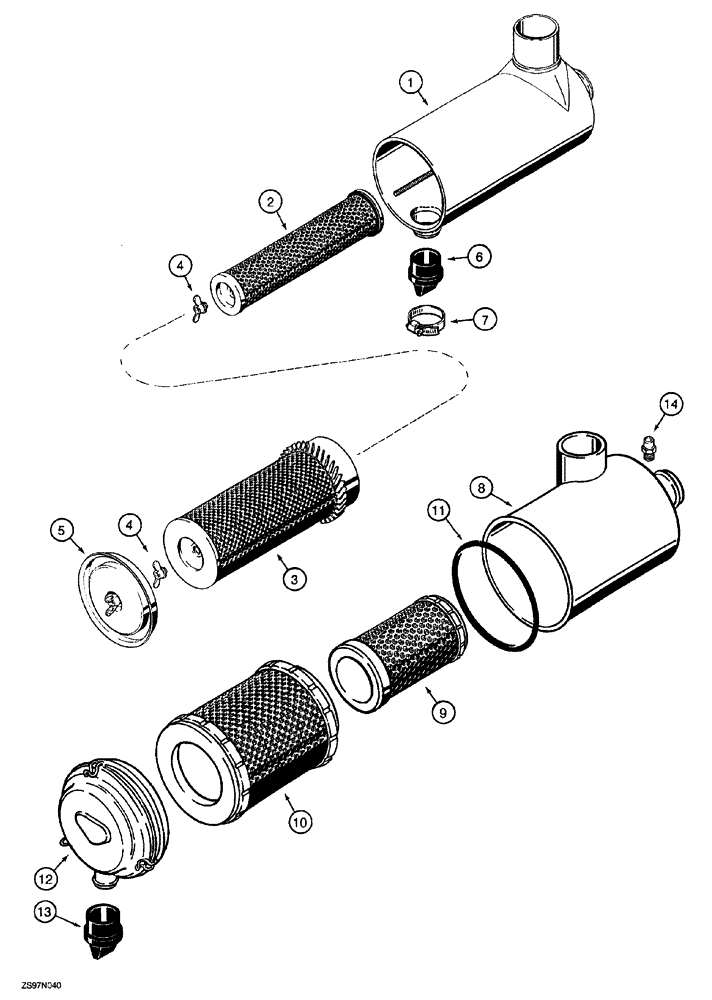

Схема запчастей Case 850G - (2-14) - AIR CLEANER ASSEMBLY PRIOR TO PIN JJG254015, EXCEPT FOR JJG0254005 THROUGH JJG0254009 (01) - ENGINE
2
8
9
10
4
1
7
14
6
13
4
11
12
3
5

№

Артикул

Название

Примечание

Количество

A173852

FILTER ASSY

air cleaner, engine, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

2

A47033

AIR FILTER

ELEMENT secondary, inner

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

3

A47032

AIR FILTER

ELEMENT primary, outer

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

4

D78354

WING NUT

ASSEMBLY wing, element

2шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

5

A52419

COVER

END with wing nut

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

6

S113982

CAP

VALVE dust, rubber

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

7

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

adj, 2-9/16 - 3-1/2 inch dia, not part of air cleaner assembly, order separately

1шт.

Prior to Crawler P.I.N. JJG0254015, except for JJG0254005 through JJG0254009

1шт.

240553A2

FILTER ASSY

CLEANER air, engine, Replaces: 240553A1, Includes: Ref. 8 - 14

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

8

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

9

187472A1

AIR FILTER

SECONDARY inner

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

10

187471A1

ELEMENT

PRIMARY outer

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

11

251827A1

O-RING

SEAL air cleaner

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

12

225266A1

COVER

CLEANER air

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

13

A184939

VALVE

DUST rubber

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

14

D36264

FITTING

ADAPTER air restriction indicator

1шт.

Crawler P.I.N. JJG0254005 through JJG0254009, JJG0254015 and after

1шт.

Выбрано товаров: 31
