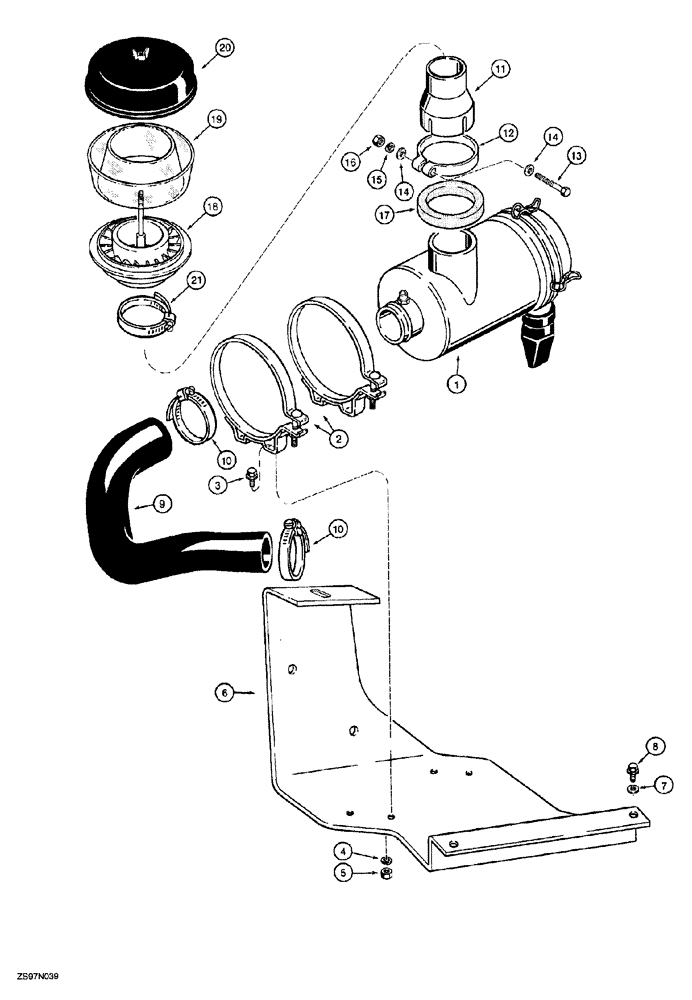

Запчасти Case 850G (2-13A) - AIR CLEANER MOUNTING AND INTAKE PARTS (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (01) - ENGINE

1

240553A2

FILTER ASSY

CLEANER air, engine, parts list figure 2-14, Replaces: 240553A1

1шт.

2

A16574

BAND

CLAMP air cleaner, Includes hardware

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

492-11038

LOCK WASHER,3/8"

If used

2шт.

5

231-1446

NUT,3/8" - 16, Gr 5

4шт.

6

256000A2

BRACKET

air cleaner mounting, Replaces: 256000A1

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

8

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

9

256001A1

INTAKE AIR HOSE,102.00 mm ID x 220.00 mm, SAE J200

Air cleaner

1шт.

10

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

2шт.

11

282478A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST air cleaner, inlet

1шт.

12

R29460

CLAMP

air cleaner pipe

1шт.

13

113-2273

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Replaces 113-2272)

1шт.

14

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

flat, 13/32 x 13/16 x 1/16 inch

2шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

129-770

NUT,3/8"-16, G5

1шт.

17

R43072

NOISE PROTECTION

PAD seal, air cleaner pipe

1шт.

258538A1

AIR INTAKE

ASSEMBLY air cleaner

1шт.

18

NSS

NOT SOLD SEPARAT

BASE precleaner

1шт.

19

277377R1

FILTER BOWL

BOWL precleaner, Replaces: A42467

1шт.

20

A42465

COVER

PRECLEANER

1шт.

21

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Adj.

1шт.
