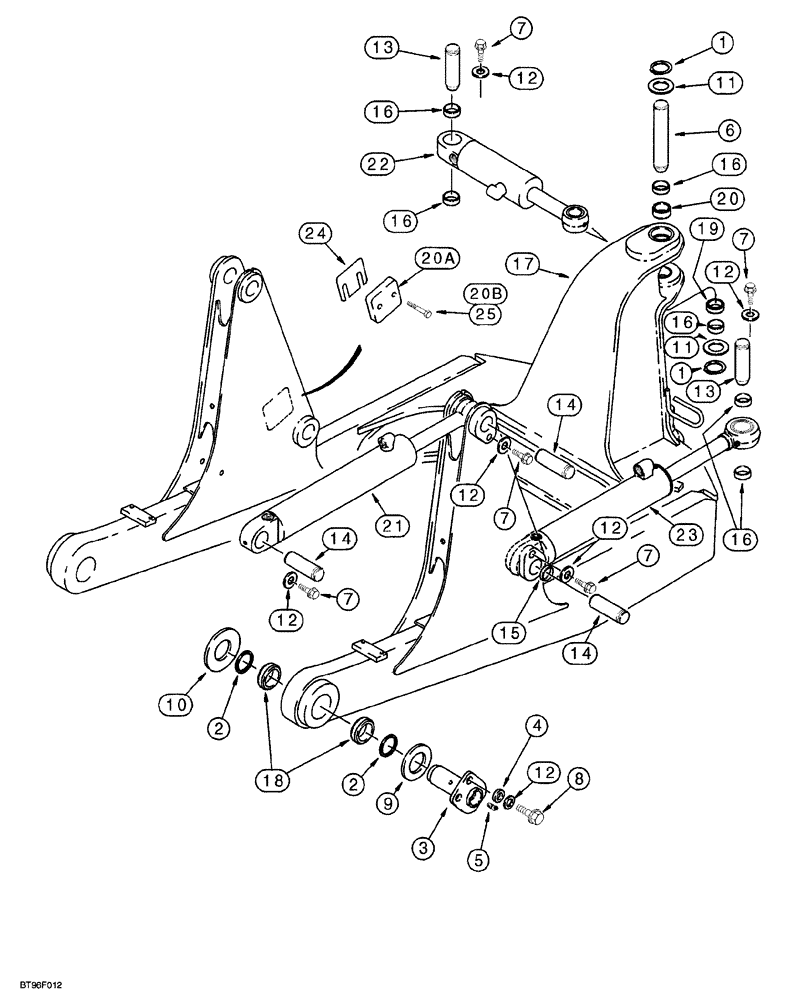

Запчасти Case 850G (9-02) - C-FRAME AND CYLINDER MOUNTING (07) - HYDRAULIC SYSTEM

1

103-16175

SNAP RING,#175, Ext

Rod end, at dozer tilt cylinder

2шт.

2

L113522

SEAL

U-cup, C-frame mounting pin, use with red Loctite No. 271 , shown below

4шт.

3

R53254

PIN,63.5mm OD x 195mm L

C-frame mounting

2шт.

4

R53353

WASHER,16.13mm ID x 22.23mm OD x 15.3mm L

BUSHING bolt

4шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

6

119106A1

PIN,44.42mm OD x 260mm L

mounting, tilt cylinder, rod end

1шт.

7

360-1020

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

hex flange, 5/8 NC x 1-1/4 inch, grade 8

8шт.

8

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

hex flange, 5/8 NC x 2 inch, grade 8

4шт.

9

95-31262

WASHER,2.62" ID x 5" OD x 0.24" Thk

flat, 2-5/8 x 5 x 1/4 inch

1шт.

10

95-81156

WASHER,2.56" ID x 4" OD x 0.11" Thk

flat, 2-9/16 x 4 x 1/8 inch

1шт.

11

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

flat, 1-25/32 x 2-1/2 x 3/64 inch

6шт.

12

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

flat, special

13шт.

13

119101A1

PIN,44.42mm OD x 165mm L

mounting, tilt and angle cylinder

3шт.

14

119097A1

PIN,44.42mm OD x 130mm L

mounting, lift and angle cylinder

6шт.

15

121166A1

BUSHING,45.26mm ID x 50.8mm OD x 12mm L

pin, cylinder mounting

4шт.

16

121167A1

BUSHING,45.26mm ID x 50.8mm OD x 19.5mm L

pin, cylinder mounting

8шт.

193961A1

FRAME

C, ASSEMBLY, dozer, Replaces: 118488A1, Includes: Ref. 17 - 20B

1шт.

17

NSS

NOT SOLD SEPARAT

C-frame dozer

1шт.

18

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

2-1/2 x 3 x 1 inch

4шт.

19

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4 inch

2шт.

20

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

1-3/4 x 2-1/4 x 1 inch

1шт.

20a

144208A1

WEAR PLATE

C-Frame

2шт.

20b

326-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

4шт.

21

116211A1

CYLINDER ASSY.

dozer lift, 89 (3-1/2) ID x 442 mm (17-7/16 inch) stroke, parts list figure 8-24

2шт.

22

117511A1

CYLINDER ASSY.

dozer tilt, 89 (3-1/2) ID x 148 mm (5-7/8 inch) stroke, parts list figure 8-26

1шт.

22

412357A1R

REMAN-HYD CYLINDER

850G (1/94-), Reman for New PN 117511A1

1шт.

22

412357A1C

CORE-HYD CYLINDER

Return Number

1шт.

23

REF

INSTRUCTION

ASSEMBLY cylinder, dozer angle, 89 (3-1/2) ID x 396 mm (15-19/32 inch) stroke, parts list figures 8-28 or 8-29A

2шт.

24

144476A1

SHIM

LGP models only, 16 mm (1/16 inch) thick

10шт.

25

326-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

Replaces Ref. 20B, 326-860 bolt on LGP models only, use with blue Loctite No. 242, shown below

4шт.

B17500

LOCTITE

red, No. 271, 6 ml tube

1шт.

B17577

LOCTITE

blue, No. 242, 6 ml tube

1шт.
