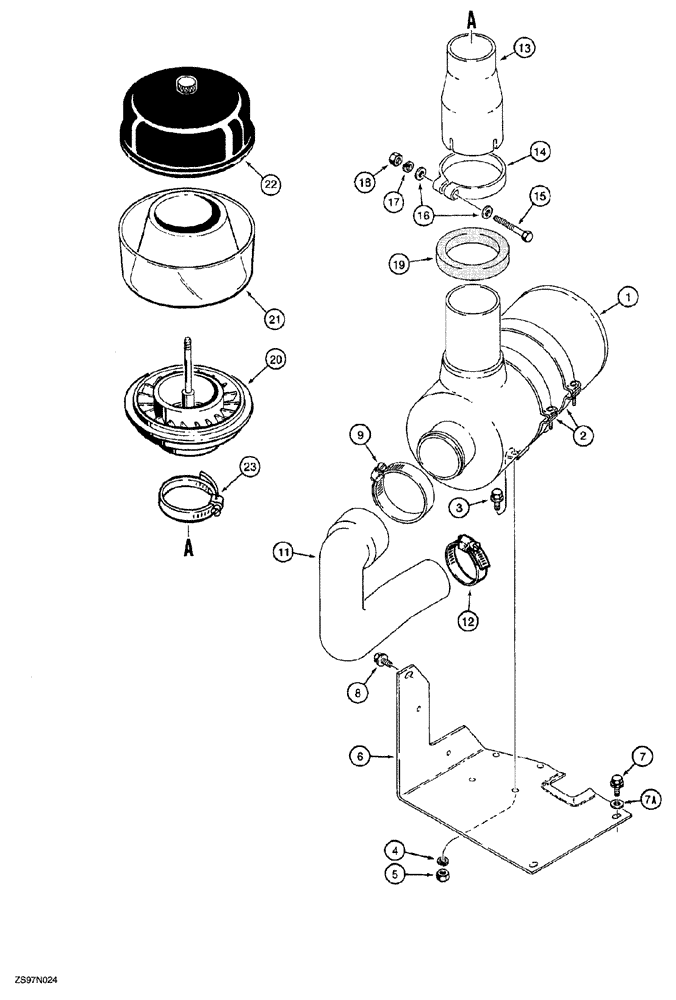

Запчасти Case 850G (2-12) - AIR CLEANER MOUNTING AND INTAKE PARTS (PRIOR TO P.I.N. JJG0254015, EXCEPT JJG0254005 TO JJG0254009) (01) - ENGINE

1

A173852

FILTER ASSY

air cleaner, engine, parts list on figure 2-15

1шт.

2

A149780

BAND

CLAMP air cleaner mounting, includes hardware

2шт.

3

121-230

SERRATED BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

189405A1

BRACKET

air cleaner mounting, Replaces: R53324

1шт.

7

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

7a

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

8

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Use with blue Loctite No 242, see below

1шт.

9

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

adj, 4-1/4 - 5-1/8 inch dia., at air cleaner

1шт.

11

R47512

INTAKE AIR HOSE,76.00 mm ID, 102 mm ID x 227.00 mm, SAE J200

Air cleaner

1шт.

12

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

adj, lower, 3-1/4 - 4-1/8 inch dia.

1шт.

13

R52923

WHISTLE

inlet, air cleaner pipe

1шт.

14

R48474

CLAMP

air cleaner pipe

1шт.

15

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

16

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

flat, 13/32 x 13/16 x 1/16 inch

2шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

129-770

NUT,3/8"-16, G5

1шт.

19

R43072

NOISE PROTECTION

PAD seal, air cleaner pipe

1шт.

A43616

FILTER

PRECLEANER ASSEMBLY air, no longer available, order 258539A1, Includes: Ref. 20 - 23

1шт.

258539A1

FILTER

PRECLEANER ASSEMBLY air, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

BASE precleaner

1шт.

21

277377R1

FILTER BOWL

BOWL precleaner, Replaces: A42467

1шт.

22

A42465

COVER

precleaner

1шт.

23

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Adj., Used with 258539A1

1шт.

B17577

LOCTITE

blue, No. 242, 6 ml tube

1шт.
