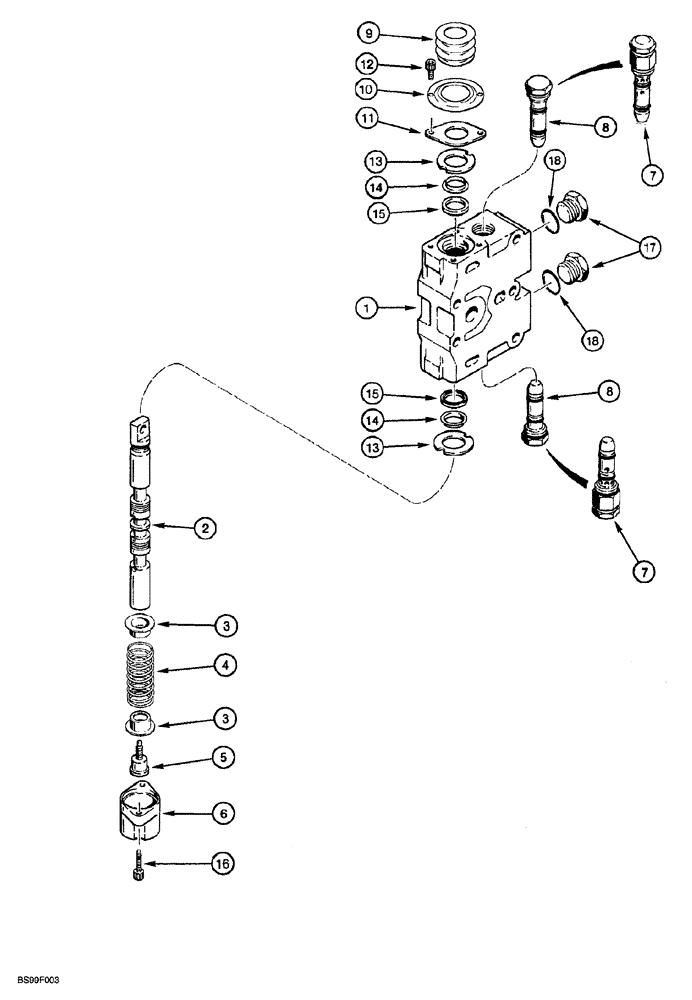

Запчасти Case 850G (8-47A) - TILT, ANGLE AND RIPPER SECTIONS (07) - HYDRAULIC SYSTEM

357166A1

HYD VALVE SECTION

ASSEMBLY ripper, if used, Includes: Ref. 1 - 16

1шт.

357165A1

HYD VALVE SECTION

ASSEMBLY tilt and angle, if used, Includes: Ref. 1 - 16

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL section

1шт.

3

H267591

SPRING SEAT

2шт.

4

100854A1

SPRING

centering, spool

1шт.

5

N14593

STEP BOLT

special, retainer

1шт.

6

S301092

FLANGE COVER CAP

spool, lower

1шт.

7

N8950

VALVE

ASSEMBLY, circuit relief, ripper section, parts list figure 8-46

2шт.

8

D87307

VALVE

ASSEMBLY load check, tilt and angle sections, parts list figure 8-44

2шт.

9

357164A1

BOOT

spool

1шт.

Part of Seal Repair Kit P/N 352796A1

1шт.

10

357163A1

RETAINER

boot

1шт.

Part of Seal Repair Kit P/N 352796A1

1шт.

11

N8194

LARGE PLATE

PLATE, LARGE retainer, outer

1шт.

Part of Seal Repair Kit P/N 352796A1

1шт.

12

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

hex socket, 1/4 NC x 1/2 inch

2шт.

12

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

hex socket, 1/4 NC x 1/2 inch

2шт.

Part of Seal Repair Kit P/N 352796A1

1шт.

13

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER spool seal

2шт.

Part of Seal Repair Kit P/N 352796A1

1шт.

14

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

backup

2шт.

Part of Seal Repair Kit P/N 352796A1

1шт.

15

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

lip, spool

2шт.

Part of Seal Repair Kit P/N 352796A1

1шт.

16

102201A1

HEX SOC SCREW,1/4" - 20 x 7/8", W/ Nylon Patch

Special

2шт.

Part of Seal Repair Kit P/N 352796A1

1шт.

17

86512512

PLUG,7/8" - 14 ORB

4 spool to 3 spool, if used, Incl. Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

352796A1

PACKAGE

KIT seal, repair, Includes: Ref. No. 9, 10, 11, 12, 13, 14, 15 and 16

1шт.
