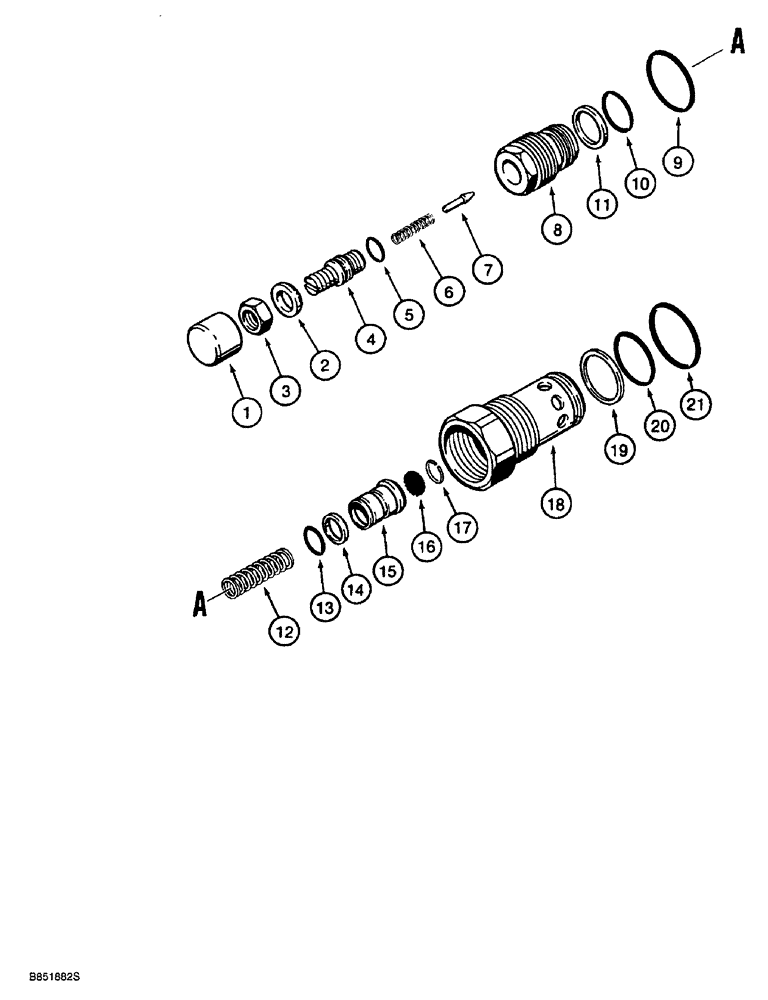

Запчасти Case 850G (8-42) - MAIN RELIEF VALVE (07) - HYDRAULIC SYSTEM

N8191

VALVE

ASSEMBLY main relief, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

COVER tamper proof

1шт.

2

N9475

WASHER

special, if used

1шт.

2

1978295C1

WASHER

special, if used

1шт.

3

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

4

N9463

ADJUSTMENT SCREW

adjusting

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 106721A1.

1шт.

6

N9465

SPRING

poppet

1шт.

7

N9464

PLUNGER

POPPET relief valve

1шт.

8

N9769

BODY

pilot plunger

1шт.

9

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

Pilot body, large

1шт.

Part of Seal Kit P/N 106721A1.

1шт.

10

A55911

O-RING,0.807" ID

pilot body, small

1шт.

Part of Seal Kit P/N 106721A1.

1шт.

11

N9768

BACK-UP RING,0.831mm ID x 0.939mm OD x 0.052mm

small O-ring, backup

1шт.

Part of Seal Kit P/N 106721A1.

1шт.

12

S300250

SPRING

poppet

1шт.

13

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

Poppet

1шт.

Part of Seal Kit P/N 106721A1.

1шт.

14

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

O-, poppet, backup

1шт.

Part of Seal Kit P/N 106721A1.

1шт.

15

S300249

VALVE POPPET

relief, Replaces: N9466, if used

1шт.

16

S300248

VALVE POPPET

screen, if used

1шт.

17

N9473

RING, SNAP

RING SNAP retaining, screen, if used

1шт.

18

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

19

N8197

O-RING,1.006" ID x 1.116" OD x 0.055"

small O-ring, backup, valve body

1шт.

Part of Seal Kit P/N 106721A1.

1шт.

20

238-6022

O-RING,0.07" Thk x 0.989" ID, -22, Cl 6, 90 Duro

Valve body

1шт.

Part of Seal Kit P/N 106721A1.

1шт.

21

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

Valve body

1шт.

Part of Seal Kit P/N 106721A1.

1шт.

106721A1

SEAL KIT

KIT, Includes: Ref. No. 5, 9, 10, 11, 13, 14, 19, 20 and 21

1шт.
