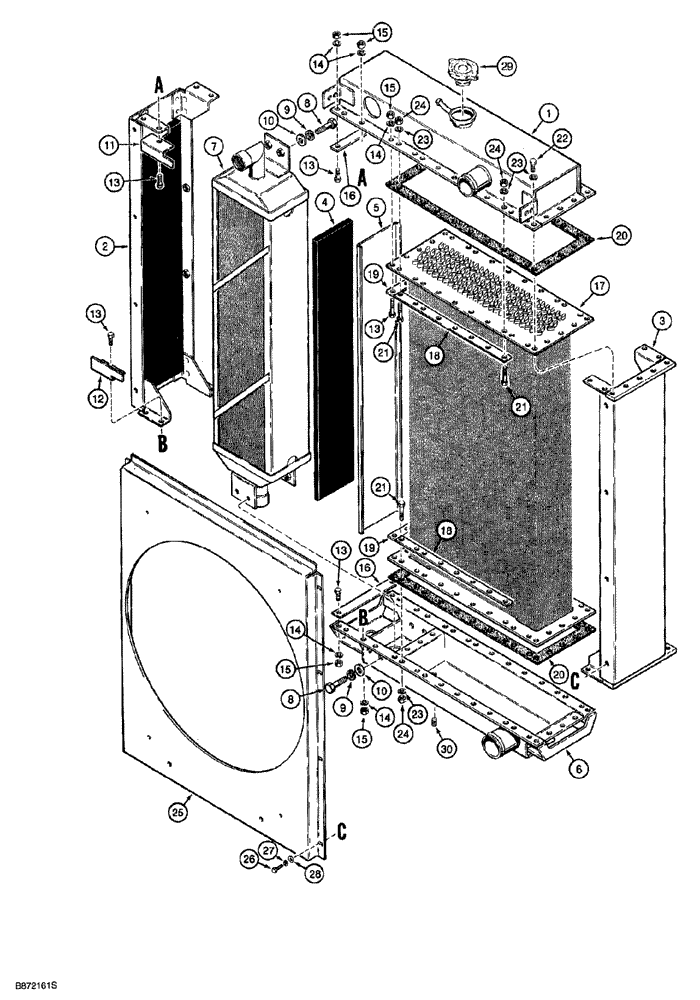

Запчасти Case 850G (2-10) - RADIATOR ASSEMBLY - MODINE (01) - ENGINE

R49826

RADIATOR

ASSEMBLY engine cooling, Modine (Ref. R52865), Includes: Ref. 1 - 30

1шт.

When ordering R49826 radiator assembly, you will receive either a Modine radiator assembly (parts list shown above) or a General Thermodynamics radiator assembly (parts list on figure 2-08). If you are ordering parts for your radiator, be sure you are ordering from the correct assembly parts list.

1шт.

1

N14785

COVER

TANK top

1шт.

2

N14793

LARGE PLATE

PLATE, LARGE PANEL side, left-hand, covers oil cooler tank

1шт.

3

N14788

LARGE PLATE

PLATE, LARGE PANEL side, right-hand, with panel for vibration dampner

1шт.

4

N14798

NOISE PROTECTION

INSULATOR vibration dampner

1шт.

5

N14799

LARGE PLATE

PLATE, LARGE core reinforcement, between core and oil cooler

1шт.

6

N14786

COVER

TANK bottom

1шт.

7

N14792

COOLER, OIL

TANK

1шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Oil cooler mounting

6шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

10

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

6шт.

11

N14795

LARGE PLATE

PLATE, LARGE oil cooler baffle, upper

1шт.

12

N14796

LARGE PLATE

PLATE, LARGE oil cooler baffle, lower

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

14

492-11031

LOCK WASHER,5/16"

14шт.

15

425-105

NUT,5/16"-18, G5

14шт.

16

N14797

LARGE PLATE

PLATE, LARGE oil cooler, reinforcement, upper and lower

2шт.

17

N14787

RADIATOR

CORE

1шт.

18

N14790

LARGE PLATE

PLATE, LARGE core header flange, reinforcement, 346 mm (13-5/8 inch) long, front and rear

4шт.

19

N14789

LARGE PLATE

PLATE, LARGE core header flange, reinforcement, 191 mm (7-1/2 inch) long, inner

2шт.

20

N14791

GASKET

CORE upper and lower

2шт.

21

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

40шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

23

492-11031

LOCK WASHER,5/16"

50шт.

24

425-105

NUT,5/16"-18, G5

40шт.

25

N14794

LARGE PLATE

PLATE, LARGE SHROUD radiator

1шт.

26

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Shroud mounting

8шт.

27

492-11025

LOCK WASHER,1/4"

8шт.

28

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

8шт.

29

A170241

RADIATOR CAP

15 psi

1шт.

30

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Replaces 221-841, Replace with elbow and drain valve, Ref 3 and 32, Shown on figure 2-06.

1шт.
