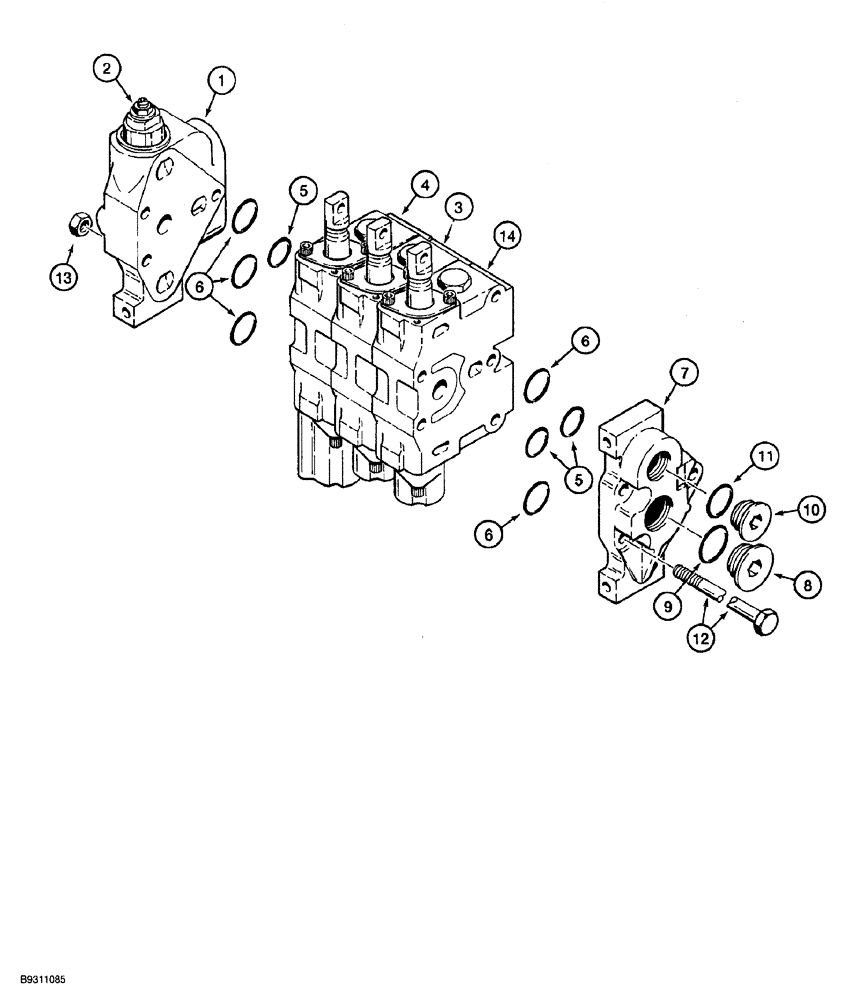

Запчасти Case 850G (8-38) - 103557A1 THREE SPOOL CONTROL VALVE (07) - HYDRAULIC SYSTEM

130557A1

VALVE

ASSEMBLY equipment control, three spool, on longer available, order 336347A1, see Figure 8-39A, Includes: Ref. 1 - 14

1шт.

1

N8942

VALVE BLOCK

SECTION inlet-outlet

1шт.

S302092

SEAL KIT

KIT between sections, not shown

1шт.

2

N8191

VALVE

ASSEMBLY main relief, parts list figure 8-42

1шт.

3

136668A1

VALVE

ASSEMBLY section, tilt, parts list figure 8-46

1шт.

4

136641A1

HYD VALVE SECTION

ASSEMBLY section, lift, parts list figure 8-44

1шт.

5

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Between sections

5шт.

6

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

Between sections

11шт.

7

100825A1

COVER

ASSEMBLY end, Includes: Ref. 8 - 11

1шт.

8

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Includes Ref 9

1шт.

9

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

hex, 3/8 NC x 8 inch

3шт.

13

425-106

NUT,3/8"-16, Cl 5

3шт.

14

136668A1

VALVE

ASSEMBLY section, angle, parts list figure 8-46

1шт.
