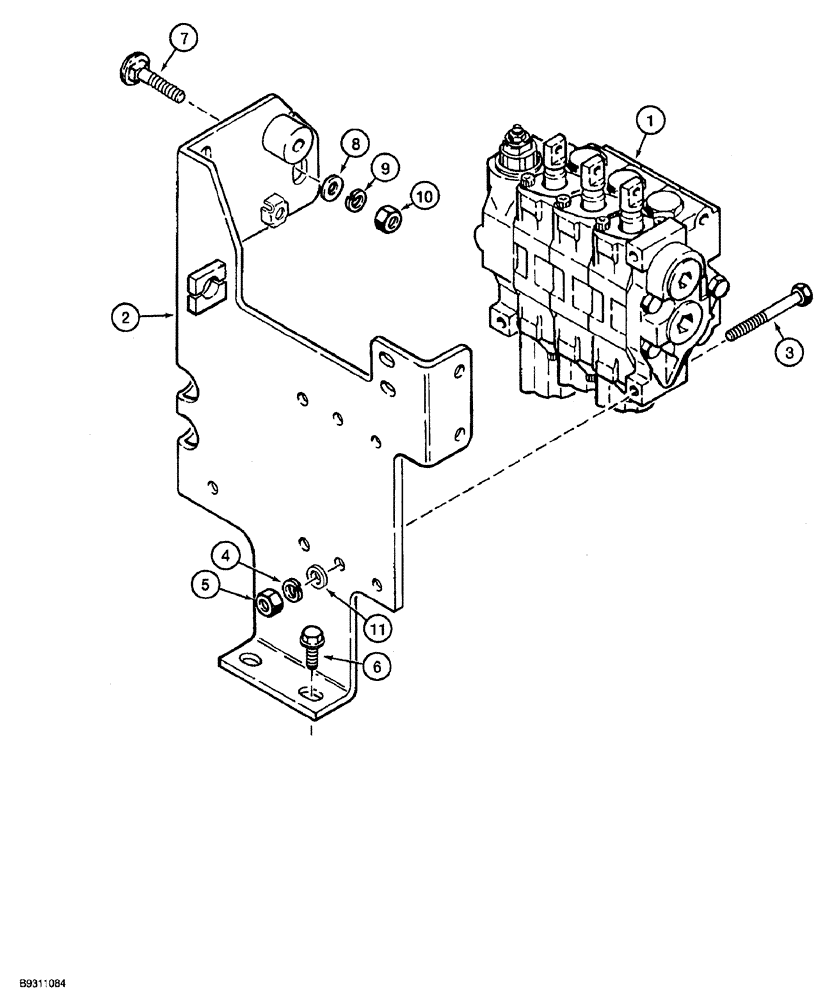

Запчасти Case 850G (8-32) - EQUIPMENT CONTROL VALVE AND MOUNTING (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

ASSEMBLY valve, equipment control, for correct assembly and components, see Figure 8-38, 8-39A, 8-40 or 8-41A.

1шт.

2

R58239

BRACKET

control valve mounting

1шт.

3

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

4

492-11031

LOCK WASHER,5/16"

3шт.

5

425-105

NUT,5/16"-18, G5

3шт.

6

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

7

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

carriage, 1/2 NC x 1-1/4 inch

2шт.

8

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

2шт.

11

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

3шт.
