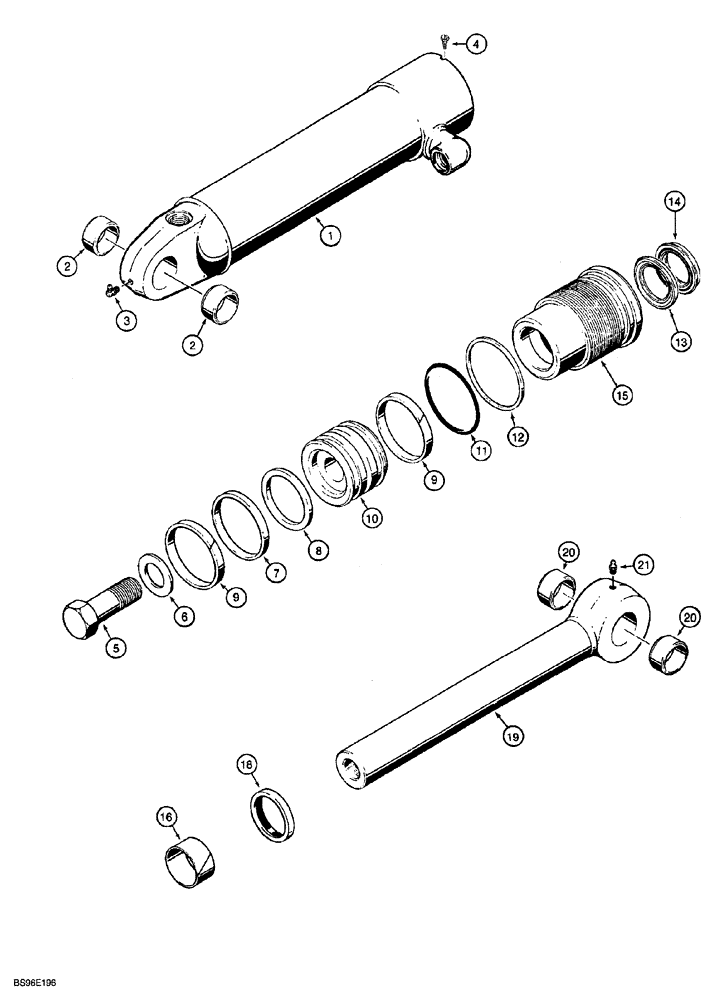

Запчасти Case 850G (8-30) - G101214 AND G101215 RIPPER CYLINDERS (07) - HYDRAULIC SYSTEM

G101214

CYLINDER ASSY.

ripper, right-hand, 83 (3-1/4) ID x 214 mm (8-13/32 inch) stroke, Includes: Ref. 1 - 21

1шт.

G101215

CYLINDER ASSY.

ripper, left-hand, 83 (3-1/4) ID x 214 mm (8-13/32 inch) stroke, Includes: Ref. 1 - 21

1шт.

1

G100608

TUBE,16.46" L

tube, G101214 right-hand cylinder, Includes: Ref. 2

1шт.

1

G100609

TUBE,16.46" L

tube, G101215 left-hand cylinder, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

both tubes

2шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

4

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

5

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

1шт.

6

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, special

1шт.

7

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit, P/N 1543265C1.

1шт.

8

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

backup

1шт.

Part of Seal Kit, P/N 1543265C1.

1шт.

9

S109445

RING,82.55mm OD, Ext

wear

2шт.

Part of Seal Kit, P/N 1543265C1.

1шт.

10

G100642

PISTON

cylinder

1шт.

NSS

NOT SOLD SEPARAT

ASSEMBLY gland, cylinder, Includes: Ref. 11 - 18

1шт.

11

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1543265C1.

1шт.

12

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup

1шт.

Part of Seal Kit, P/N 1543265C1.

1шт.

1542875C1

SEAL KIT,44.4mm Rod

NSS, Incl Ref 13 and 14

1шт.

Part of Seal Kit, P/N 1543265C1.

1шт.

13

1542998C1

SEALING RING

buffer, NSS, Order: 1543265C1 kit

1шт.

14

1542999C1

SEAL

rod, NSS, Order: 1543265C1 kit

1шт.

15

1542972C1

CYLINDER END CAP

gland

1шт.

16

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of Seal Kit, P/N 1543265C1.

1шт.

18

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

wiper, dust

1шт.

Part of Seal Kit, P/N 1543265C1.

1шт.

19

G100617

ROD

piston, 44 mm (1-3/4 inch) diameter, Includes: Ref. 20

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

rod

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

1543265C1

SEAL KIT

seal, Includes: P/N 1542875C1, Ref. No. 7, 8, 9, 11, 12, 16, 18 and an instruction sheet, plus an additional seal not used in this application.

1шт.
