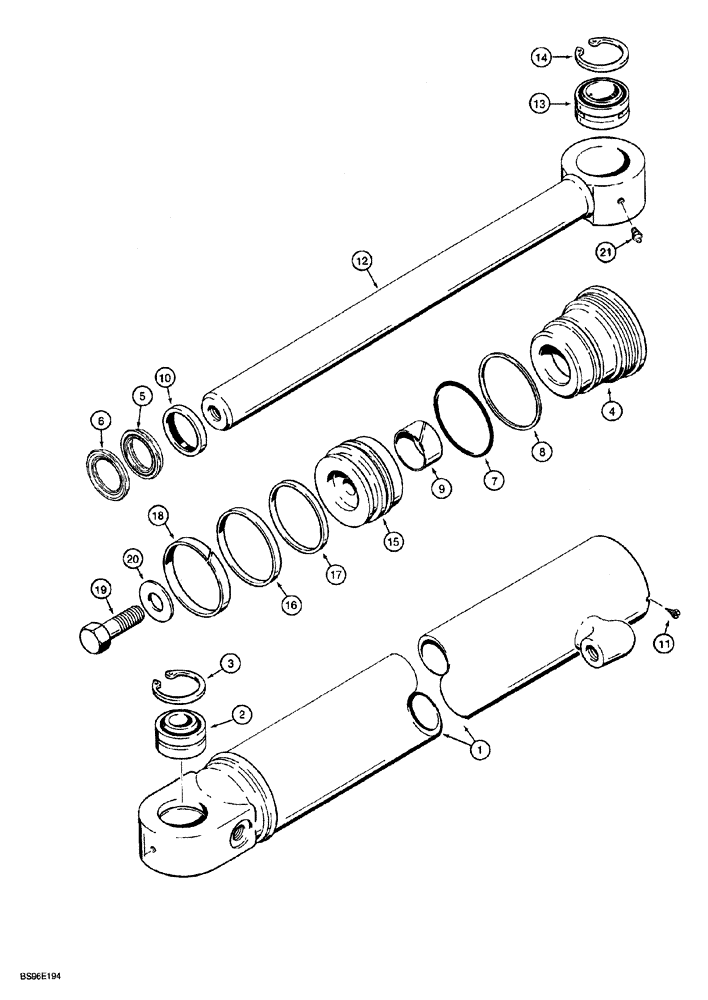

Запчасти Case 850G (8-28) - 116969A1 ANGLE CYLINDER (07) - HYDRAULIC SYSTEM

116969A1

CYLINDER ASSY.

89 (3-1/2) ID x 396 mm (15-19/32 inch) stroke, angle, no longer available, order 190595A2 cylinder on figure 8-29A, Includes: Ref. 1 - 21

2шт.

84135900R

REMAN-HYD CYLINDER

Reman for New PN 116969A1

2шт.

84135900C

CORE-HYD CYLINDER

Return Number

2шт.

1

116968A1

HYD TUBE

cylinder, no longer available, order 355751A1, Includes: Ref. 2 and 3

1шт.

2

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

self-aligning

1шт.

3

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

NSS

NOT SOLD SEPARAT

ASSEMBLY gland, cylinder, Includes: Ref. 4 - 10

1шт.

4

355529A1

GLAND

cylinder, Replaces: G110108

1шт.

1542875C1

SEAL KIT,44.4mm Rod

NSS, Incl Ref 5 and 6

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

5

1542999C1

SEAL

rod, NSS, order 1543266C1 kit, see below

1шт.

6

1542998C1

SEALING RING

buffer, NSS, order 1543266C1 kit, see below

1шт.

7

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

wiper, dust

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

116965A2

PISTON ROD

45 mm (1-3/4 inch) diameter, Replaces: 116965A1, Includes: Ref. 13 and 14

1шт.

13

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

self-aligning

1шт.

14

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

15

1986982C1

PISTON

cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, special

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

1543266C1

SEAL KIT

seal, Includes: P/N 1542875C1, Ref. No. 7, 8, 9, 10, 16, 17, 18 and an instruction sheet

1шт.
