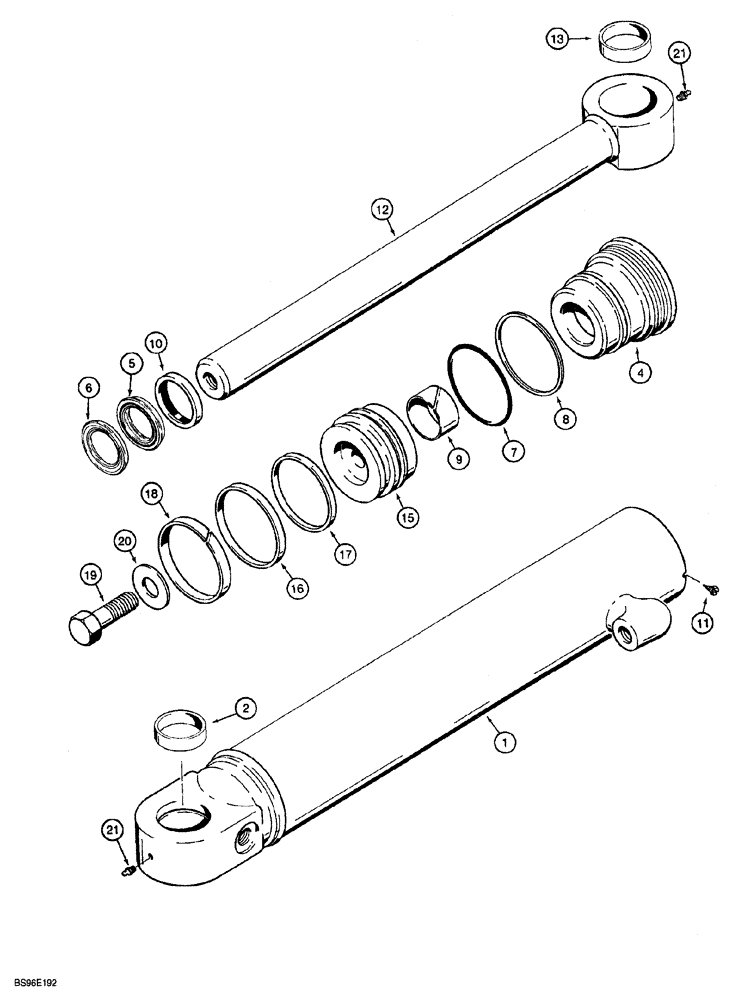

Запчасти Case 850G (8-24) - 116211A1 LIFT CYLINDER (07) - HYDRAULIC SYSTEM

116211A1

CYLINDER ASSY.

lift, 89 (3-1/2) ID x 442 mm (17-7/16 inch) stroke, Includes: Ref. 1 - 21

2шт.

1

116210A1

TUBE,88.77 mm ID, 669.3 mm Length

CYLINDER no longer available, order 357936A1, Includes: Ref.

1шт.

1

357936A1

TUBE,88.77 mm ID, 669.3 mm Length

CYLINDER, Replaces: 116210A1, Includes: Ref. 2

1шт.

2

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4 inch

2шт.

NSS

NOT SOLD SEPARAT

ASSEMBLY gland, cylinder, Includes: Ref. 4 - 10

1шт.

4

G110108

GLAND

CYLINDER no longer available, order 355529A1

1шт.

4

355529A1

GLAND

CYLINDER, Replaces: G110108

1шт.

1542875C1

SEAL KIT,44.4mm Rod

NSS, Incl Ref 5 and 6

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

5

1542999C1

SEAL

rod, NSS, order 1543266C1 kit, see below

1шт.

6

1542998C1

SEALING RING

buffer, NSS, order 1543266C1 kit, see below

1шт.

7

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

dust, wiper

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

116207A2

ROD ASSY.

piston, 45 mm (1-3/4 inch) diameter, Replaces: 116207A1, Includes: Ref. 13

1шт.

13

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4 inch

2шт.

15

1986982C1

PISTON

cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

Part of Seal Kit P/N 1543266C1.

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, special

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1543266C1

SEAL KIT

SEAL, Includes: P/N 1542875C1, Ref. No. 7, 8, 9, 10, 16, 17, and 18 and an instruction sheet

1шт.
