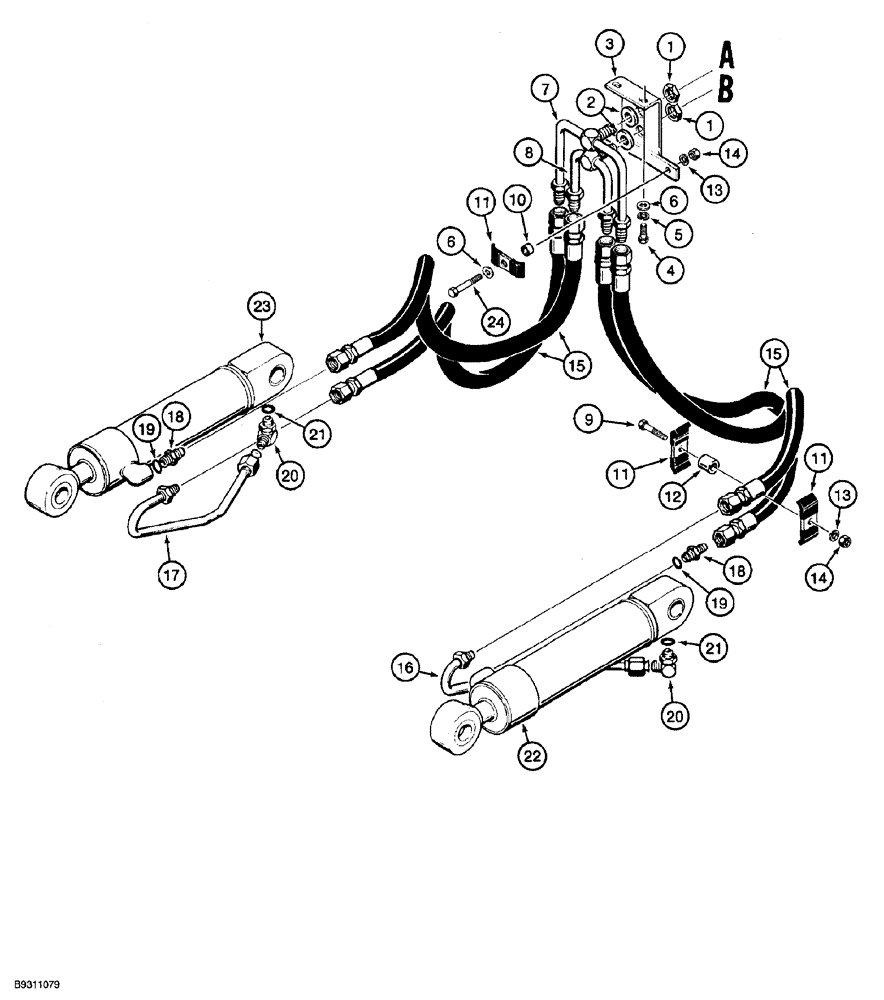

Запчасти Case 850G (8-22) - RIPPER HYDRAULIC CIRCUIT - REAR OF TRACTOR TO CYLINDERS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
218-1251
BHD LOCK NUT,Blkhd, 7/8"-14
2шт.
2
495-11094
WASHER,7/8", SAE
flat, 15/16 x 1-3/4 x 1/8 inch
2шт.
3
R35545
BRACKET
tube mounting, attaches to rear of seat and tank frame
1шт.
4
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
5
492-11038
LOCK WASHER,3/8"
2шт.
6
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
Flat, (13/32 x 13/16 x 1/16")
4шт.
7
R35549
TUBE,0.625" OD x 6.2, 3.75" L
TEE upper port
1шт.
See Figure 8-20 for a continuation of the ripper hydraulic lines.
1шт.
8
R46492
TUBE,0.625" OD x 4, 2.1" L
TEE lower port, with restrictor fitting
1шт.
See Figure 8-20 for a continuation of the ripper hydraulic lines.
1шт.
9
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
10
D146035
SPACER,10.31mm ID x 16mm OD x 15.5mm L
tube, Replaces: D76209
2шт.
11
D40236
CLAMP
hoses at cylinders
6шт.
12
R46493
SPACER,0.406" ID x 0.625" OD x 0.850" Thk
split, 22 mm (7/8 inch) long
2шт.
13
492-11038
LOCK WASHER,3/8"
4шт.
14
425-106
NUT,3/8"-16, Cl 5
4шт.
15
F93300
HOSE
to cylinders, 737 mm (29 inch) long
4шт.
16
R38348
TUBE,0.625" OD
right-hand, to closed end of ripper cylinder
1шт.
17
R38350
TUBE,0.625" OD
left-hand, to closed end of ripper cylinder
1шт.
18
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 19
2шт.
19
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
20
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
Adj. O-ring boss, Incl. Ref. 21
2шт.
21
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
22
G101214
CYLINDER ASSY.
ripper, right-hand, 83 (3-1/4) ID x 214 mm (8-13/32 inch) stroke, parts list figure 8-30
1шт.
23
G101215
CYLINDER ASSY.
ripper, left-hand, 83 (3-1/4) ID x 214 mm (8-13/32 inch) stroke, parts list figure 8-30
1шт.
24
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
2шт.
