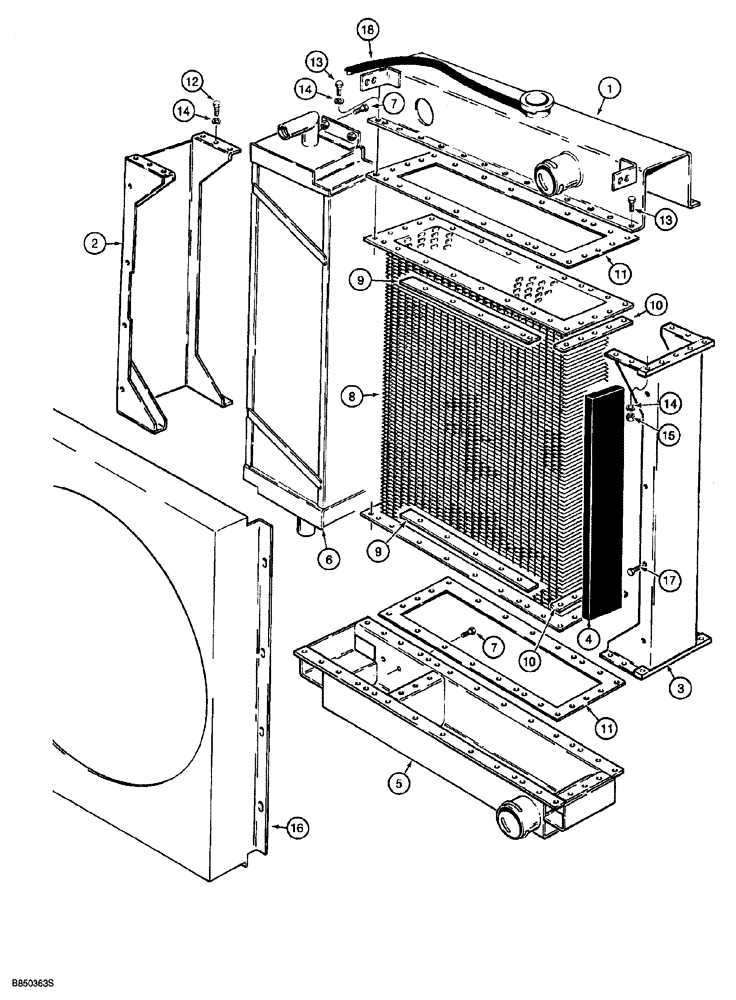

Запчасти Case 850G (2-08) - RADIATOR ASSEMBLY - GENERAL THERMODYNAMICS (01) - ENGINE

R49826

RADIATOR

ASSEMBLY engine cooling, general thermodynamics (Ref. R52864), Includes: Ref. 1 - 18

1шт.

When ordering R49826 radiator assembly, you will receive either a General Thermodynamics radiator assembly (parts list shown above) or a Modine radiator assebly (parts list on figure 2-10). If you are ordering parts for your radiator, be sure you are ordering from the correct assembly parts list.

1шт.

1

N9753

COVER

TANK top

1шт.

2

N9755

LARGE PLATE

PLATE, LARGE PANEL side, left-hand, covers oil cooler tank

1шт.

3

N9756

LARGE PLATE

PLATE, LARGE PANEL side, right-hand, with panel for vibration dampner

1шт.

4

N7887

PADDING

INSULATOR, vibration dampner

1шт.

Single piece as shown not available, replace with three strips of 1968072C1.

1шт.

5

N9754

COVER

TANK bottom

1шт.

6

N9759

RESERVOIR

COOLER oil, tank

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Oil cooler mounting

4шт.

8

N9757

RADIATOR

CORE

1шт.

9

N9761

LARGE PLATE

PLATE, LARGE reinforcement core

4шт.

10

N9760

LARGE PLATE

PLATE, LARGE core ends, reinforcement, inner

2шт.

11

N9762

GASKET

GASKET core, upper and lower

2шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

13шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

59шт.

14

492-11031

LOCK WASHER,5/16"

72шт.

15

425-105

NUT,5/16"-18, G5

59шт.

16

N9758

LARGE PLATE

PLATE, LARGE SHROUD radiator

1шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Shroud mounting

8шт.

18

NSS

NOT SOLD SEPARAT

HOSE overflow

1шт.

1968072C1

SEAL

STRIP foam, 10 (3/8) x 25 (1) x 490 mm (19-5/16 inch) long

3шт.
