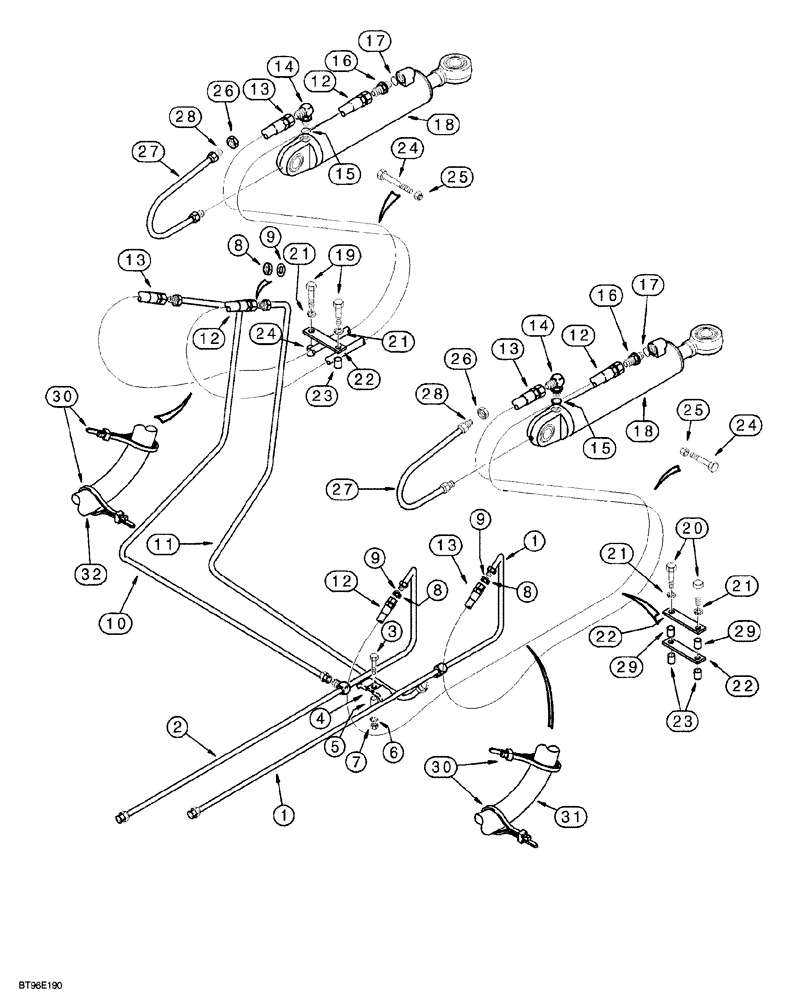

Запчасти Case 850G (8-18) - ANGLE HYDRAULIC CIRCUIT - DESCENDING TUBES TO CYLINDERS (07) - HYDRAULIC SYSTEM

1

119723A1

TUBE,12.7 mm OD, 1048, 235 mm Length

angle circuit lower port

1шт.

2

119725A1

TUBE,12.7 mm OD, 981, 234 mm Length

angle circuit upper port

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

D138055

CLAMP

tubes

1шт.

5

D76208

SPACER

480 inch thick

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

If used

1шт.

8

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

9

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), Special thin

4шт.

10

119727A1

TUBE

crossover, angle circuit upper port

1шт.

11

119729A1

TUBE,12.7 mm OD, 553, 347 mm Length

crossover, angle circuit lower port

1шт.

12

L76752

TUBE

hose, at end of cylinder rod end, 1651 mm (65 inch) long

2шт.

13

R38217

HOSE,12.7mm ID x 1143mm L, SAE 100R2

at angle cylinder closed end, 1143 mm (45 inch) long

2шт.

14

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Straight, O-ring boss, Incl. Ref 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

REF

INSTRUCTION

ASSEMBLY cylinder, 89 (3-1/2) ID x 396 mm (15-19/32 inch) stroke, angle, for correct assembly and components see Figure 8-28 or 8-29A.

2шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

20

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

22

123171A1

LARGE PLATE

PLATE, LARGE hose clamping

3шт.

23

123172A1

SPACER

heavy wall, 7/8 inch long

2шт.

24

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

hex, at upright plate, 3/8 NC x 3-3/4 inch

2шт.

25

231-1446

NUT,3/8" - 16, Gr 5

2шт.

26

F53473

LOCK NUT,1/8-27 NPSM

special, lubrication hose, use with Loctite No. 242

2шт.

27

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

closed end of angle cylinder, 533 mm (21 inch) long, lubrication

2шт.

28

219-10

LUBE NIPPLE,1/4" - 28 NPTF

grease fitting, straight, 1/4-28 taper x 11/16 inch

2шт.

29

D36040

BUSHING

clamp, thin wall, 3/4 inch long

4шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

4шт.

31

142302A1

SLEEVE

hose, four hose protection, right-hand side, angle and tilt hoses

1шт.

32

142310A1

SLEEVE

two hose protection, left-hand side

1шт.
