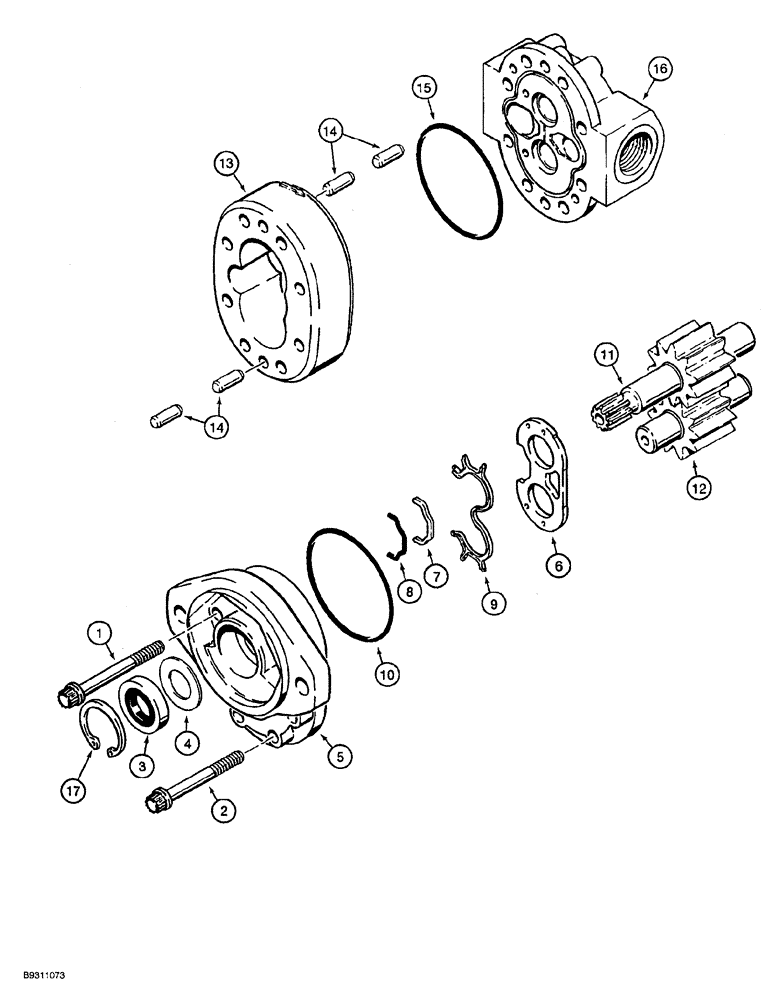

Запчасти Case 850G (8-10) - EQUIPMENT PUMP ASSEMBLY (07) - HYDRAULIC SYSTEM

R57348

PUMP, HYDRAULIC

ASSEMBLY equipment, no longer available, order 186352A1 pump assembly, Prior to Crawler P.I.N. JJG0217408, Includes: Ref. 1 - 17

1шт.

396801A2R

REMAN-HYD PUMP

850G P.I.N JJG0217408 (1/94-); Reman for New P/N R57348

1шт.

396801A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

186352A1

PUMP, HYDRAULIC

ASSEMBLY equipment, also service replacement for R57348, Crawler P.I.N. JJG0217408 and after, Includes: Ref. 1 - 17

1шт.

396801A2R

REMAN-HYD PUMP

850G Crawler P.I.N. JJG0217408 and after (1/94-); Reman for New P/N 186352A1

1шт.

396801A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

12 point flange, 3/8 NC x 3-3/4 inch, grade 8

4шт.

2

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

12 point flange, 3/8 NC x 3-1/2 inch, grade 8

4шт.

3

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

shaft

1шт.

Part of Pump Repair Kit P/N S301061.

1шт.

Part of Pump Repair Kit P/N 191088A1.

1шт.

4

H104117

WASHER

seal

1шт.

Part of Pump Repair Kit P/N S301061.

1шт.

Part of Pump Repair Kit P/N 191088A1.

1шт.

5

S301060

LARGE PLATE

PLATE, LARGE COVER shaft end

1шт.

6

1971509C1

PLATE

wear

1шт.

Part of Pump Repair Kit P/N S301061.

1шт.

Part of Pump Repair Kit P/N 191088A1.

1шт.

7

1971506C1

SEAL

bearing

1шт.

Part of Pump Repair Kit P/N S301061.

1шт.

Part of Pump Repair Kit P/N 191088A1.

1шт.

8

1971507C1

O-RING

moulded, bearing seal

1шт.

Part of Pump Repair Kit P/N S301061.

1шт.

Part of Pump Repair Kit P/N 191088A1.

1шт.

9

S301059

GASKET

PLATE wear

1шт.

Part of Pump Repair Kit P/N S301061.

1шт.

Part of Pump Repair Kit P/N 191088A1.

1шт.

10

238-6159

O-RING,0.103" Thk x 4.977" ID, -159, Cl 6, 90 Duro

Shaft end cover to gear housing

1шт.

Part of Pump Repair Kit P/N S301061.

1шт.

Part of Pump Repair Kit P/N 191088A1.

1шт.

11

S301057

GEAR

drive

1шт.

12

S301058

GEAR-SET

driven

1шт.

S301056

GEAR

ASSEMBLY housing, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING gear

1шт.

14

NSS

NOT SOLD SEPARAT

PIN dowel, cover locating

4шт.

15

238-6159

O-RING,0.103" Thk x 4.977" ID, -159, Cl 6, 90 Duro

Port end cover to gear housing

1шт.

Part of Pump Repair Kit P/N S301061.

1шт.

Part of Pump Repair Kit P/N 191088A1.

1шт.

16

S301055

COVER

port end

1шт.

17

100-21137

SNAP RING,1.375", Int, #137

Shaft seal, if used (Replaces A32181)

1шт.

Part of Pump Repair Kit P/N 191088A1.

1шт.

S301061

WEB

KIT pump repair, no longer includes Ref. 17 ring, R57348 pump assemlby only, kit no longer available, order individual components.

1шт.

191088A1

SEAL KIT

KIT pump repair, 186352A1 pump assembly

1шт.
