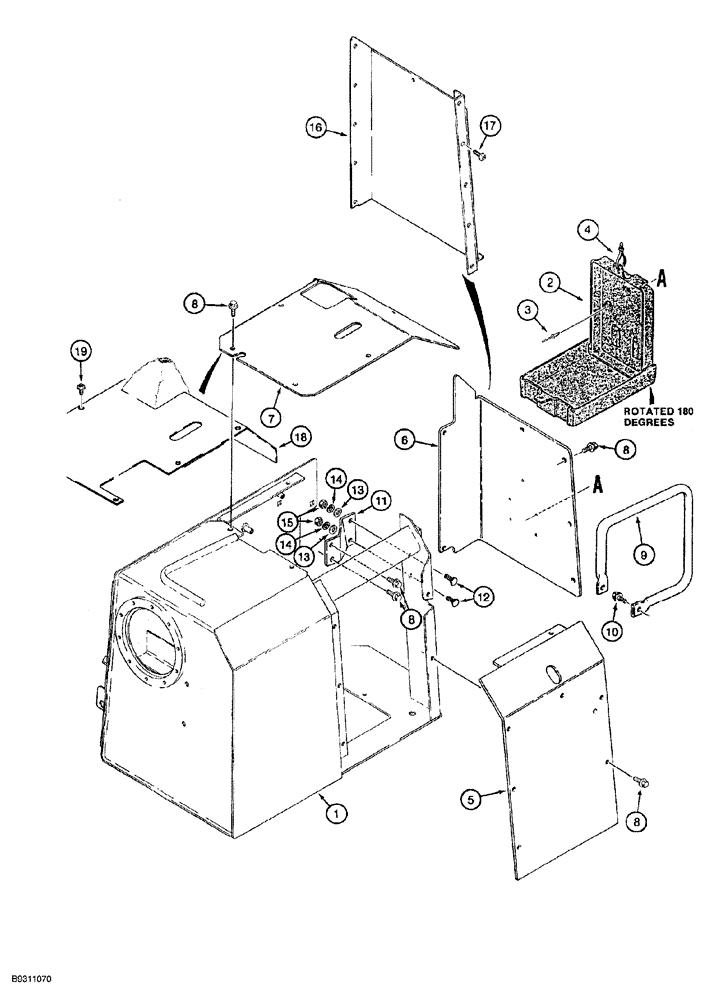

Запчасти Case 850G (8-04) - HYDRAULIC RESERVOIR COVERS - OPERATORS MANUAL BOX (07) - HYDRAULIC SYSTEM

1

124177A1

TANK

hydraulic, see Figure 8-02 for reservoir related parts

1шт.

2

R46464

CASE

operators manual

1шт.

3

151-522

RIVET,Pop, 3/16" x .575"

Break mandrel

3шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP manual box, 15 inch

1шт.

5

R58146

COVER ASSY

outer side, models without cab

1шт.

6

R58147

COVER

front, models without cab

1шт.

7

R58148

COVER

top, models without cab

1шт.

8

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

10-17шт.

9

R58161

HANDLE

GRAB

1шт.

10

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

11

R58786

PLATE

1шт.

12

411-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 2

carriage, 3/8 NC x 1 inch, grade 2

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

1999581C1

COVER

front, cab models, brown, parts used only on models with a cab

1шт.

16

189639A1

COVER

front, cab models, gray, parts used only on models with a cab

1шт.

17

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

hex socket button head, 5/16 NC x 3/4 inch, parts used only on models with a cab

14шт.

18

1999551C1

COVER

upper, cab models, includes Refs. 38 - 43 on figure 8-35B and Refs. 33 - 43 on figure 8-36, parts used only on models with a cab

1шт.

19

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

hex socket button head, 5/16 NC x 1/2 inch, parts used only on models with a cab

7шт.
